GPS Car/Motorcycle/Vehicle Tracker with SIM Card Slot and Anti-Theft A13
| Price: |
US $ 21-22/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A13 |
| Battery: |
350mAh |
| GPS Anttnna: |
High Sensitive Ceramic Antenna |
| Lbs Accuracy: |
100-1000m |
| SIM Card Slot: |
One Slot |
| Buttons: |
Power Button(P)and Function Button(F) |
| GPS Chip: |
Mtk3337 |
| I/O Port: |
USB Port for Charging |
| Color: |
Black |
| Chipset: |
Mtk2503 |
| Net Weight: |
65g |
Product Description
Car/Motorcycle GPS Tracker with relay

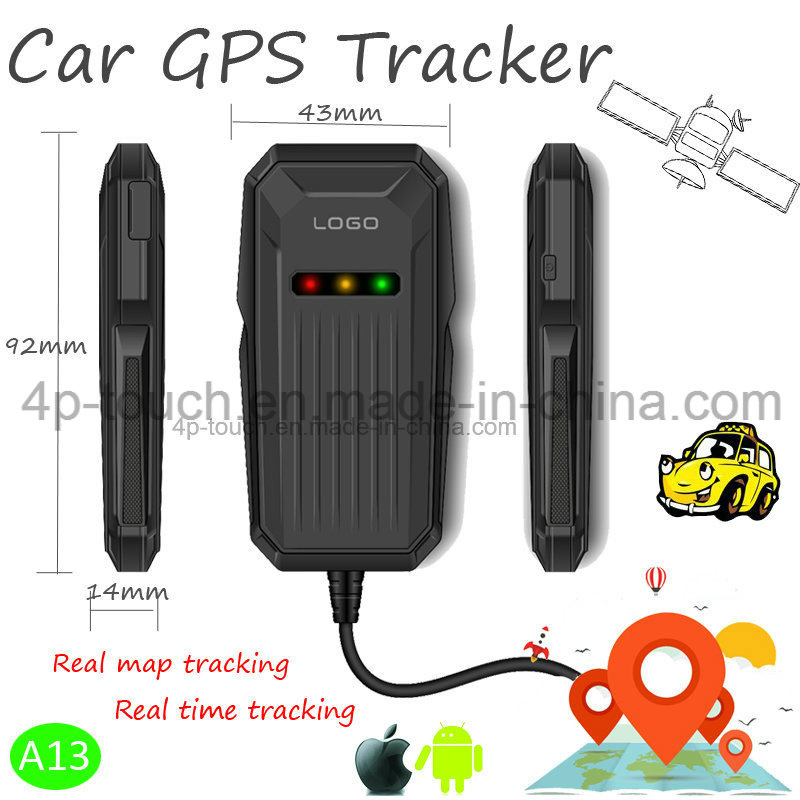

1.Size:92X43X14mm
2.Net weight:65g
3.Button:Power button(p) and Function button(F)
4.GPS anttnna:High sensitive ceramic antenna
5.GSM antenna:Copper-Nickel Alloy
6.G-sensor: Support
7.Chipset: MTK6261
8.GPS chip:MTK3337
9.Batttery :350mAh
10.software: Android 2.3 and above, iOS 4.0 and above
11.Language:Chinese and English
Main function:
1.GSM quad-band systems worldwide
2.Wide input voltage range; DC10.5-55V
3.GPS continuous positioning, GPRS Regularly report
4.support SMS queries location
5.built-in vibration sensor, to achieve intelligent
6.vehicle anti-theft
7.ACC ignition signal detection, vehicle status notifications
8.off fuel and electricity can be connected relay,vehicle remote control
9.Can be connected with external SOS switch
10.button for emergency calls for help
Specification:| Structure parts | Category | Specification |
| ID design | Compact and light weight |
| Whole machine size | 92X43X14mm |
| Weight | 52g without package,151g with package box |
| Colour | black |
| Buttons | one button (power button) |
| Screen | no |
| GPS antenna | High senstive ceramics antenna |
| GSM antenna | holder antenna |
| Battery | 350mAh |
| SIM card shot | 1 slot |
| G-sensor | Supported |
| I/O port | USB charge |
| Hardware parts | Clip | MTK 2503 |
| GPS chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15M |
| Based station location accuracy | 100-1000M |
| Average standby current | less than 3 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working voltage | 11-50V |
| Working humidity | 5% to 95% non-congealable |
| Test and Certification | Can approval by 3C and CE |
| GPS antenna | Built in high sensitive FPC antenna |
| GSM antenna | Built in four frequency PIFA antenna |
| Bluetooth | Bluetooth 3.0(Normal closed ) |
| G-sensor | Supported |
| 12V storage battery protection | Supported |
| Software parts | Supporting operating | Support 2.3 and above system , IOS5.0 and above | |
| Language supported | Simplified Chinese and English | Compatible with suppport for multi-languages |
| GSM+GPRS+GPS | GPS+LBSmulti-modal positioning | |
| Support AGPS | Cold start 26 seconds positoning | |
| Power management | Ultra-low power consumption of power management,intelligent dormancy | |
| Intelligent fence | Outside the range setting can be automatic alarm | |
| Historical route | Can check history route of three months | |
| Wireless upgrading | Software remote upgrading, remote debugging maintenance , remote setting paremeters | |
