| Prod Model: |
Coban TK103 gps car tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
83*54*26mm |
| Tracker Weight: |
120g |
| Certificate: |
CE FCC |
| Warranty Time: |
1 Year |
| Arm Alarm: |
Door, Shock Sensor and Acc Working |
| Car Anti Theft Tracking: |
Shut Engine, Fuel Monitor |
| Applying Directions: |
Vehicle Fleet/Logistics/Vehicle Rental |
| GPS Accuracy: |
5m |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Main Alarms: |
Geofence, Low Battery, Overspeed Alarm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
Avltracking GPS Tk103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban GPS Tracking Devices |
| Certification: |
ISO9001 |
Product Description

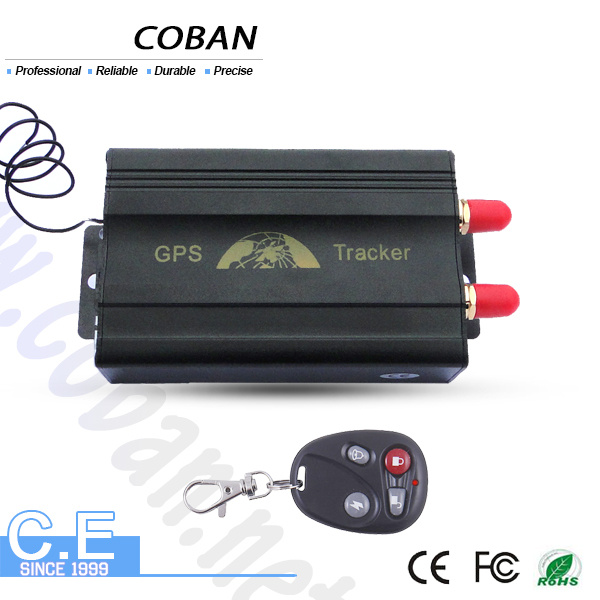

GPS Car Tracker with GPS-Based Tracking Platform(Coban Tk103)
How does the GPS Car Tracker work? All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.
The unit is powered by automotive battery, and should be installed inside a vehicle .
Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Applying directions: Vehicle fleet/logistics/Vehicle rental
What is in the box :
1x GPS unit
1x GPS antenna
1x GSM antenna
1 x MIC
1 x Harness
1x Relay
1 x Manual
(Remote controller is optional )
car gps tracker 103 Specifications
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
4 tracking solutions :
- SMS tracking by calling , return google map link
- Absolute street address by sms
-Android IOS app tracking

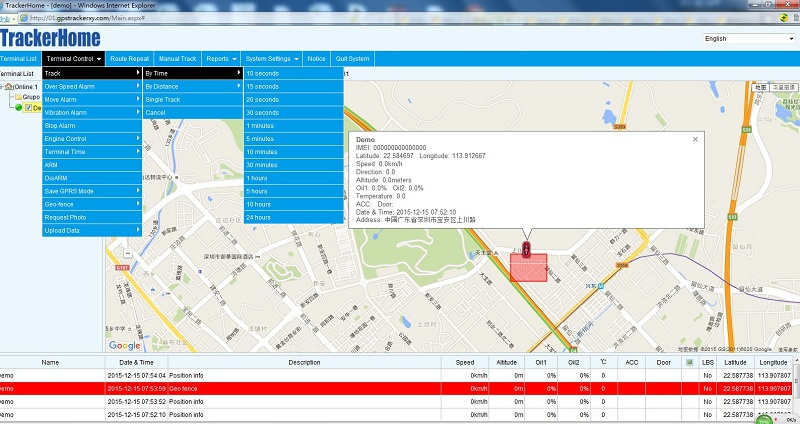

- Optional web server www.gpstrackerxy.com GPRS web server
www.gpstrackerxy.com(user ID :demo,password :8888)
Android /IOS app tracking
More details please contact usShenzhen Coban Electronics co., Ltd (2016/7/11)
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
