| Prod Model: |
TK510 |
| With Camera: |
Yes |
| Driver Identification: |
Yes |
| Sos Button: |
Yes |
| Fuel Monitoring: |
Yes |
| Temperature Sensor: |
Yes |
| Voice Monitor: |
Yes |
| Chip: |
U Blox 7 |
| Carrier Frequency: |
2g GSM/3G UMTS |
| Certification: |
Ce, FCC, RoHS |
| Engine Stop: |
Yes |
Product Description

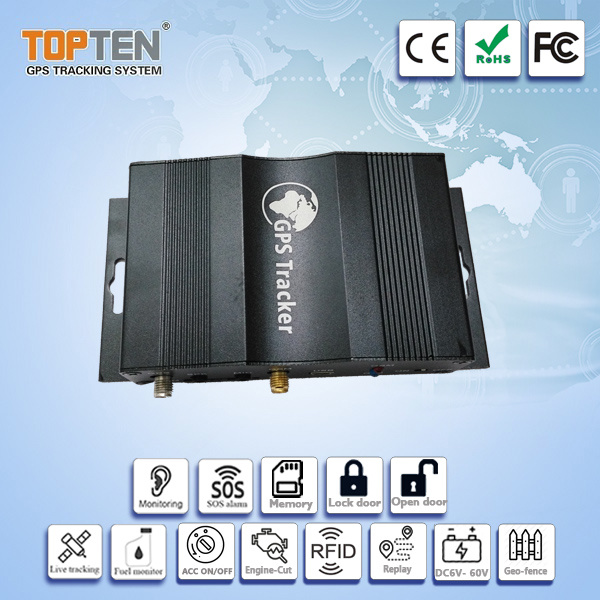

TK510 GPS Vehicle tracker is the most advanced & cost-effective solution for vehicle security, real-time tracking & fleet management. It has the following unique functions:
1. Camera for snapping & monitoring via MMS, email or platform;
2. RFID car alarm system with long-distance tag;
3. Crash alarm, fuel leaking alarm, speed limiter & fatigue driving alarm.security purpose.
ApplicationsVehicle Real Time Tracking
Car Security/Anti-Hijack
Fleet management

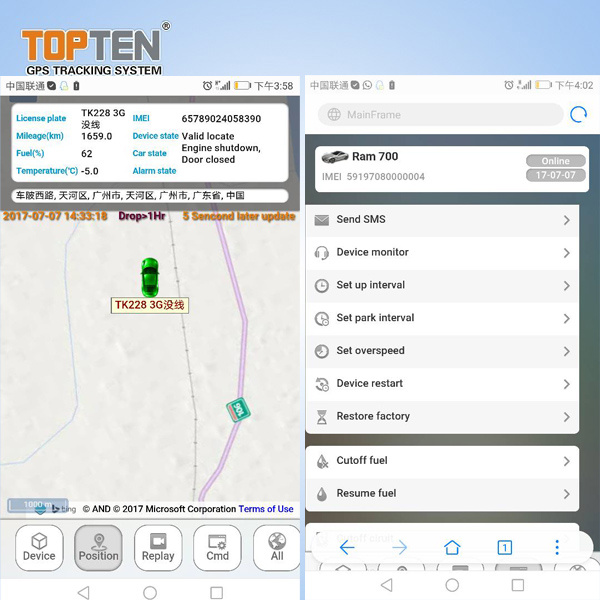

Product function1. Track on SMS, Web or APP;
2. RFID for personnel identification, supports 2.4G active RFID reader & Mifare1 IC card reader
3. Support 2.4G keyless alarm functions, arm/disarm by SMS/web/calling/RFID tag;
4. Check the car's real physical address (such as city & street name.);
5. Check the location by LBS directly even there is no any GPS signal;
6. Prompt inputs(input1~input5) status detection;
7. Voice monitoring & 2-way talking(optional);
8. Engine on alarm, door open alarm, power failure alarm, vibration alarm, movement alarm, Geo-fence alarm, over-speed alarm, SOS alarm, anti-tamper alarm;
9. Crash alarm, when there is crash & it can detect it automatically;
10. Fatigue driving alarm, if continuous driving time is over the limitation, the alert will be triggered;
11. Track by time interval or by distance;
12. Stop the car safely by SMS or Web;

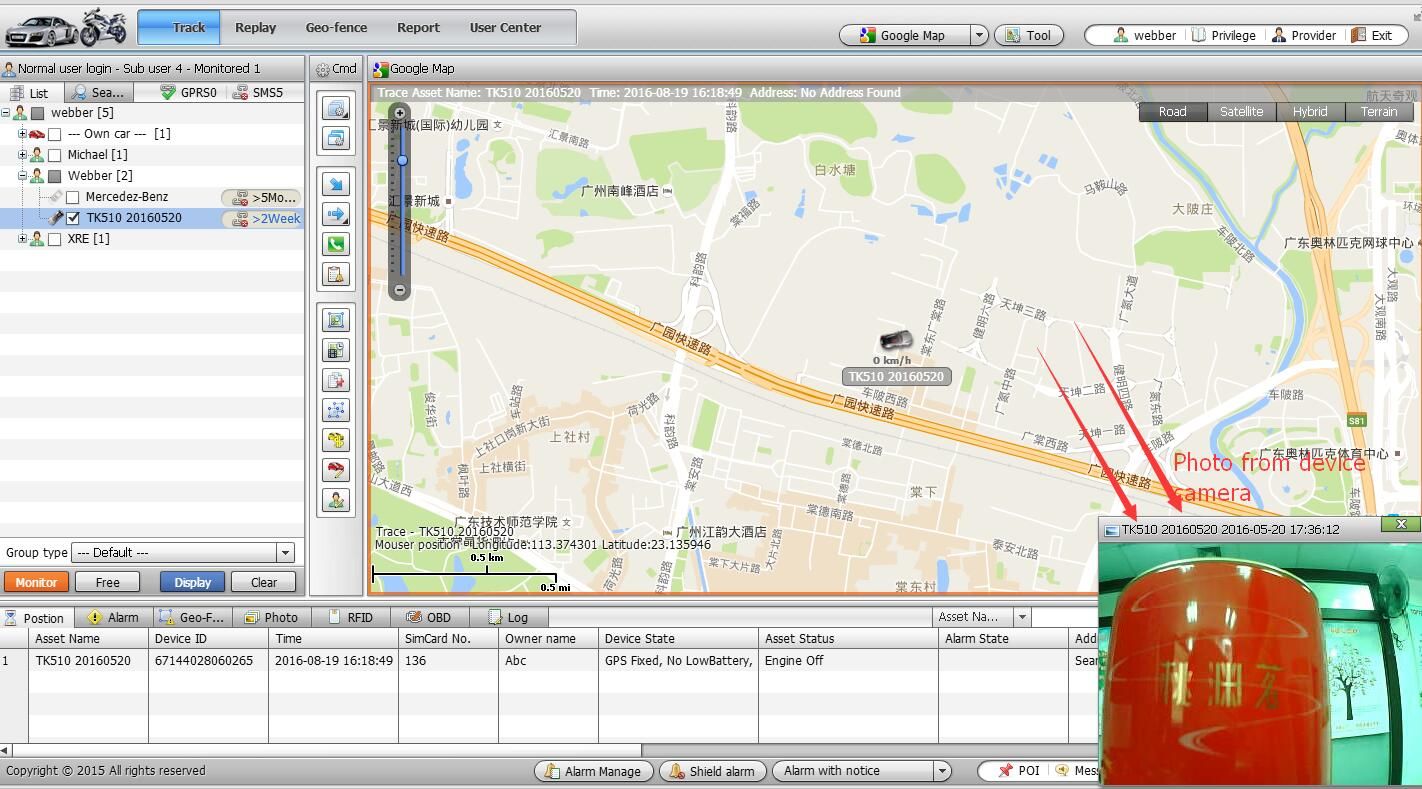

13. Snap photo and send out via MMS &Email when some alarms happen, snap the photo via platform (option);
14. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;
15. Lock/unlock the car door remotely by SMS/platform or automatically according to the status of arm/disarm;
16. Upgrade the normal car alarm with GPS tracking function
17. Support analog input for fuel monitoring, fuel loss alarm;
18. I/O: 5 digital inputs, 5 digital output, 2 analogue inputs
19. Voltage:6V-60VDC, suitable for motorcycle, car or big trucks;
20. Smart Power save design for protection of vehicle battery;
21. Trace optimization when vehicles turns a corner;
22. 8M-bit offline data logger, it can store up to 9,090 waypoints;
23. User-defined SMS contents in different languages;
24.Industrial design with high performance ARM7 processor;
Packing list:Main unit 1 pcs
GSM antenna 1 pcs
GPS antenna 1 pcs
SOS button 1 pcs
Relay 1 pcs
Wiring 1 set
Optional accessories:Fuel sensor
Temperature sensor +converter
RFID reader
RFID tag
Camera
GPS Online tracking platform
GPS App
Q&A:Q: Will I know if the device is disconnected from car?A: Yes. If the device is disconnected illeagally from car, the device will send alert to owner's phone and to platform.Q: Can it report location if there's no network?A: The device has internal memory to store history position data. As long as there's valid GPS signal, the history position will be stored and sent to server when GSM network comes back again.Q: How will I know if someone opens my car door?A: If car door is opened illeagally, the device will send alert to user's mobile phone and to tracking platform.Q: Will I get noticed if someone steals my vehicle?A: Yes. If someone starts your vehicle illeagally, the device will send out "engine on alarm" to your mobile phone and to the platform.Q: Can I stop a car remotely?A: Yes, you can stop the car remotely by SMS/GPRS.Q: Can I monitor voice in car?A: Yes, the device has microphone, you can call the device to monitor conversation in car if necessary.Q: Can I know the engine status of my car?A: Yes the engine status will be sent to server/platform.Related products:
