| Prod Model: |
tk102 Cheap GPS Tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
GPS/SMS/GPRS Tracker GPS Tracking System Device |
| Waterproof: |
Yes |
| Magnetic: |
Yes |
| Memoery SD Card: |
Yes |
| OEM Or Not: |
Yes |
| Standby Time: |
80 Hours |
| Warranty Time: |
12 Months |
| Packaging: |
40 Unit /Carton Standard Color Box |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
102b |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

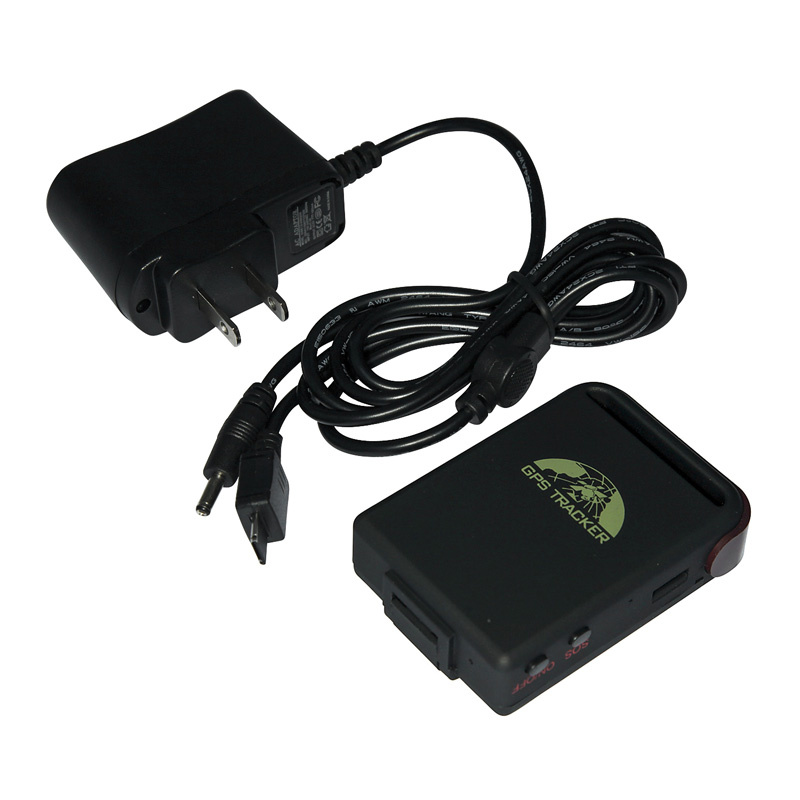

Real-time monitoring GSM GPRS Mini GPS Tracker
-better CPU inside
-built-in Motion Sensor
-covert SOS Button
-google map link
-built -in SD card slot, magnet
General
Based on GSM/GPRS and GPS network, you can locate and monitor any remote targets by SMS or GPRS.
Features
TK102-2 with which the old TK102 has, also there is SD card slot in TK102-2. The GPRS data can be saved in SD. Besides, following features are all available:
1)The minimum interval for data sending of TK102 is 30 seconds, for the new ARM7 solution, it can be 5 seconds.
2)Data adds direction, altitude, battery voltage, charging status, number of satellites, the length of the GPRS string, GSM ID (includes MCC, MNC, cell ID).
3)Supports more languages like English, Spanish, and others.
4)The commands can be sent to the tracker by GPRS tracking server directly but not only by telephone SMS.
5)There is motion sensor for TK102-2, the unit will send an alert to the user at once when it moved or touched heavily.
6)There is SD card slot in TK102-2.
7)The GPRS data can be saved in SD card if GPRS is off.
8)For auto tracking, no need to send the coordinates if the moving distance is less than 50 meters.
9)Longer standby time, for the old one, the standby battery time is about 40 hours, for the new ARM7 solution, it can be 90 hours.
10)The new ARM7 solution offer us much more space for programming, then we can offer more customized performance
11)It is much easier to modify the software base on TK102-2 personal GPS tracker.
Auto Report position.
Send the last location if it enters into the blind area.
Add or change Username and Password.
Monitoring and SOS feature.
It will send an alert of Geofence to the user when it breaches the restricted area.
It will send an alert of movement to the user when it begins to move.
It will send an alert of overspeed to the user when it moves exceed of the restricted speed.
It will send an alert of low battery to the user if the battery is low.
Real-time Mini GPS Personal Locator with GPRS Web Based Tracking Software
Application
1. Vehicle for rental or manage of outside equipment, etc.
2. Protect the elder, kid, employee and pet, etc.
3. Protect the businessmen.
4. Manage the outworker.
5. Covert Tracking.
| Brand | Specification |
| Dimension | 46(L)x64(W)x17(H) mm |
| Weight | 50g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM sensitivity | Less than -102dBm |
| GPS chipset | SIRF3 chip set |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | | Cold status 45s | | Warm status 35s | | Hot status 1s |
|
| Humidity | 5%--95% non-condensing |
| Temperature | | Operating Temperature | -20& deg; C to +55& deg; C | | Storage Temperature | -40& deg; C to +85& deg; C |
|
| Car charger | 12-24V input, 5V ouput |
| Wall charger | 110-220V input, 5V output |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Battery Life | About 80 hours |
FIVE tracking solutions:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Free PC based tracking application (send you in CD package)
4. Optional web server
5. Free mobile tracking app for android/IOS phones
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
