| Prod Model: |
TK119 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk119 |
| Color: |
Black |
| Weight: |
50g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36/48/60/72VDC |
| Dimension Mm: |
87(L)X41.6(W)X 12(H) |
| Optional Accessory: |
Relay |
| Battery Capacity: |
70mAh |
| Map Type: |
Google Map |
| Wiring Tracker: |
Yes |
Product Description
Using GPS tracker, we can position, monitor and control the vehicle on the position server via GPRS, GPS and Internet. It can help customers to manage transparently, reduce cost, maintain security and raise efficiency. Now it is widely used in business traffic, logistics distribution, automobile lease, intelligent transportation, shipping market, army and police, rescuing, Safety Supervision, Intelligent city
Real time location, history route could be viewed on tracking platform by APP & WEB.
PRODUCT FEATURES:
Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
Super Wide Input Voltage:9-72V DC.
Support GPS / Beidou / Glonass precise positioning system, support A-GPS
GPS data uploaded by GPRS regularly, Web browser platform, Smart phone app and SMS query.
Supports ACC status checking and vehicle status notifying.
Built-in battery, Power disconnect alarm & Low battery alarm.
Built-in G-sensor ,Vibration, collision and falling alarm.
GEO-fence alarm, speed & shift alarm.
Use relay to remotely cut the oil
Extend I/O port to add extension function
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.
Water proof level IP67
Function Interface: Power cable , Relay, ACC
Extended Interface: GPIO for adding extensions (need customization)
MODLE TYPE:
TK119 : GPS
TK119-BD :GPS + BEIDOU
TK119-GN :GPS + GLONASS
Base Specifications
Voltage 12VDC/24VDC/36/48/60/72VDC
Work current <30mA@12V
Standby Curren <10mA@12V
GPS positioning accuracy 15m
GSM positioning accuracy 100m
GPS Frequency 1575MHz
GSM Frequency 850/900/1800/1900MHz
Hot/warm/cold start time <3s, <15s, <60s
Battery capacity 70mAh
Dimensions (mm) 87(L)X41.6(W)X 12(H)
Operating temperature -20º C~70º C
Operating humidity 20%~80%RH
Net Weight 50 g
Main function table
GPS OK
AGPS OK
Remote cut oil/engine OK
Monitor/listen NO
ACC OK
OBD diagnostics NO
Built-in battery OK
Pedometer NO
Power failure Alarm OK
Low power Alarm OK
SOS Alarm NO
Speed Alarm OK
Shift Alarm OK
Collision Alarm OK
Falling Alarm OK
Vibration Alarm OK
Geo-fencing Alarm OK
Platform
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
GPS Tracker tk119 parameter
| Base Specification |
| Voltage | 12VDC/24VDC/36/48/60/72VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 70mAh |
| Dimensions (mm) | 7(L)X41.6(W)X 12(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 50 g |
| Waterproof | IP67 |

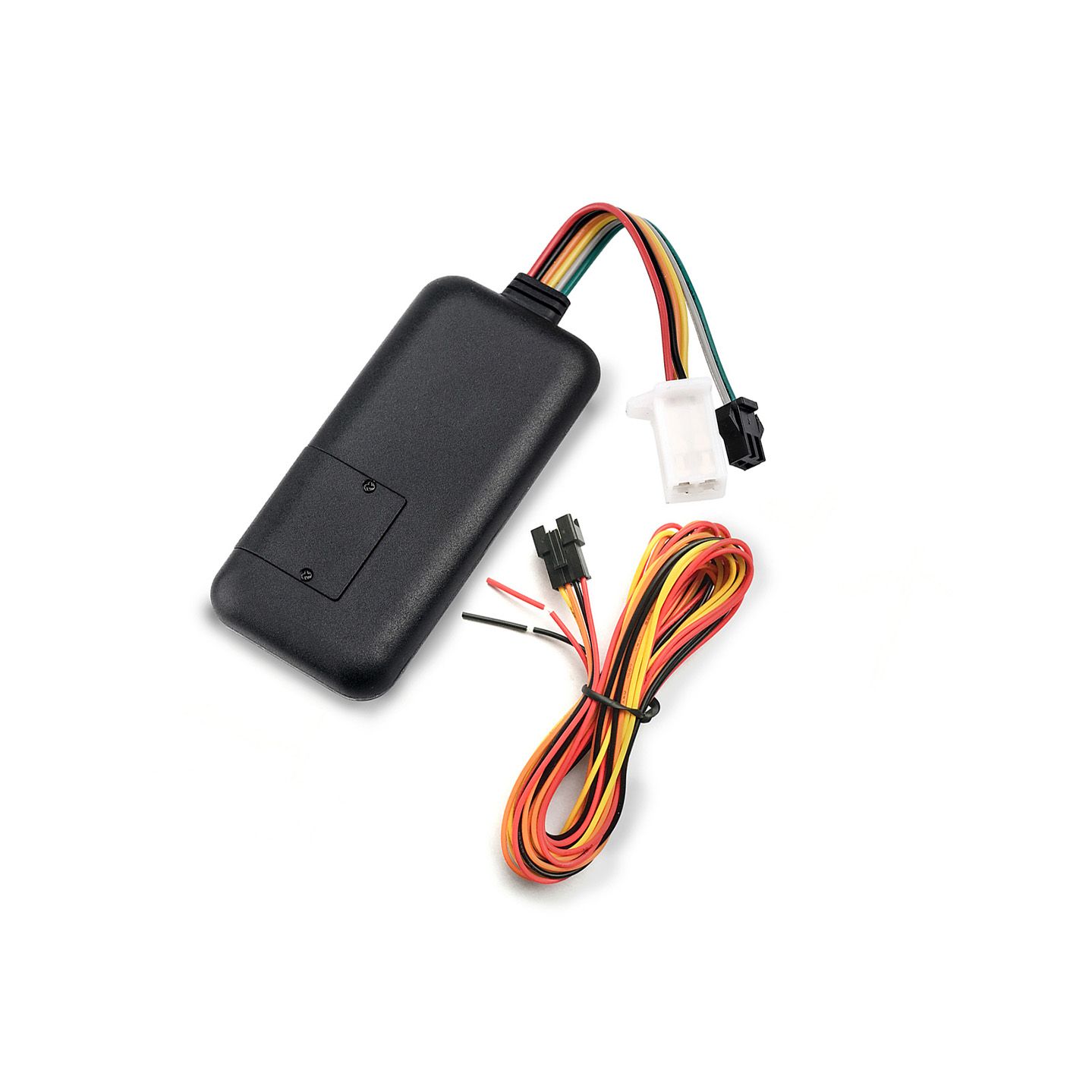

GPS Tracker TK119 picture
