GPS /Lbs Position Temperature Tracker Support Web Platform and APP Tk119-T
| Price: |
US $ 30-34/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
TK119-T |
| Battery Capacity: |
70mAh |
| Voltage: |
12/ 24/ 36/ 48/ 60/ 72 VDC |
| Work Temperature: |
-20ºC~70ºC |
| Weight: |
67g (Mainframe 50g + Temperature Sensor 17g) |
| IP Level: |
IP67 |
| GSM Frequency: |
850/900/1800/1900MHz |
| Temperature Sensing Accuracy: |
0.5 Degree |
| GSM Band: |
850/900/1800/1900MHz |
| GPS Accuracy: |
5-15m |
| Lbs Accuracy: |
About 200 M |
Product Description

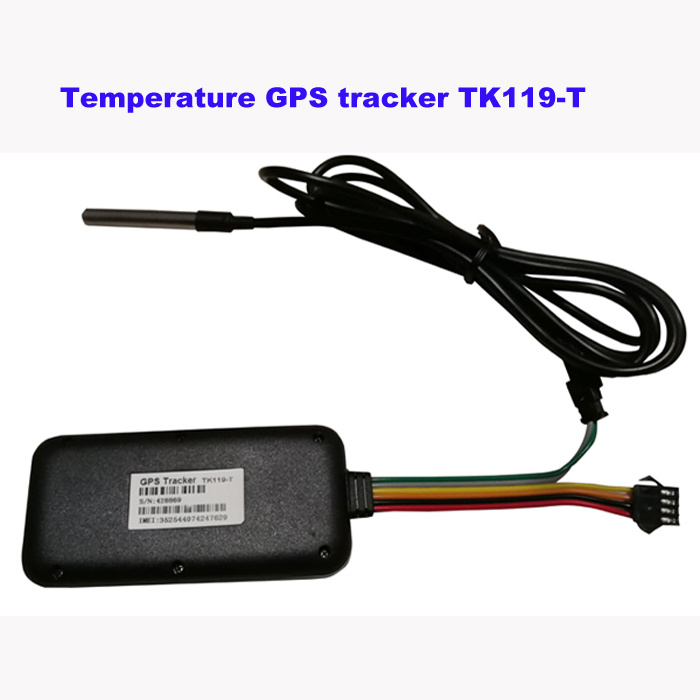

GPS temperature tracker for vehicle TK119-T
Introduction:TK119-T GPS/LBS temperature monitoring device is a high performance trackers ,can maintain and appropriate temperature conditions for moving your perishable or cold goods . Dual-mode positioning with GPS for quick and clear-cut positioning, and LBS for unwavering assisted positioning.Real-time temperature monitoring, GPS tracking , LBS tracking are assisted positioning right to the Web platform and APP. IP67 waterproof and dustproof protection. Widely used in cold chain logistics, food storage, pharmaceutical storage, cold storage management, and temperature IoT more areas.
Features :-GPS/LBS Dual-mode Positioning-Highly Sensitive Temperature Sensor(Standard Configuration) (New)-Real-time positioning , Temperature Monitoring (smart real-time upload location, temperature information)-ACC status check (Report vehicle fire status in real-time)-Relay (Optional) remotely cut-off fuel and power-Internal battery (Power failure alarm , low battery alarm )-Collision/Lapse /Vibration Alarm (Abnormal vehicle accident and vibration remote alarm)-Over speed Alarm/Cut -off fuel because of Over speeding (New)(set alarm when speed limit is crossed/cut-off fuel )-Geo-fence(Trespassing border area alarm)-Water and Dust Proof(IP 67 Grade Protection-Remote Setup(Remotely setup platform, client and short message parameter)-Eelink Protocol 2.0 (Can provide protocols to support integrate to client platforms. - Highly Precise: Temperature Detector Probe
- Satellite Positioning
- Over Speed Fuel :Cut-off
- Water and Dust:Proof
Applications :Cold chain logisticsFood storagePharmaceuticals storage Cold storage management Temperature of IoT | Specifications: |
| Dimension | 87(L)×41.6(W)×12(H)mm |
| Color | Black |
| LED Indicator Light | GPS(Blue),
GSM(Red) |
| Battery | 70mAh |
| Weight | 67g (Mainframe 50g + Temperature Sensor 17g) |
| Operating Voltage | 12 VDC/24 VDC/36
VDC/48 VDC/60 VDC(9-72v) |
| Working Current | 25mA@12V(While
GPS in use) |
| Standby Current | 5mA@12V(While GPS
is turned off) |
| Temperature Sensing Accuracy | ±0.5ºC |
| Working Temperature | -30C~80ºC |
| Working Temperature of Host | -20C~70ºC |
| GPS Band | 1575MHZ |
| GSM Band | 850/900/1800/1900MHz |
| Antenna | Built-in quad-band GSM antenna, Ceramic GPS Antenna |
| Satellite Positioning Accuracy | 5-15m(Depends on satellite signal strength) |
| Base Station Positioning Accuracy | About 200m(Depends on base station density) |
| Hot/Warm/Cold Startup Time | <3 seconds, <15 seconds, <60 seconds |
Platform:
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Our solutions :
Shenzhen Eelink Communication Technology Co. Ltd aims at win- win cooperation and provides complete tracking solutions according to different clients' requirements.
1.Brand Agent of Keelin, use Keelin platform and App.
2.OEM Cooperation. we offer our products and neutral platform to customers,or we only offer products and provide protocol for customer's platform research.
3.Research and customization. We could cooperate with customers based on their different requirement in terms of large production.
4.Technical Solutions for different industries.
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
