| Prod Model: |
OCT600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
+6V - +24V / 1.5A |
| Dimension: |
73mm X 86mm X 30mm |
| Frequency: |
GSM 850/900/1800/1900MHz |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| GPS Sensitivity: |
-158dB |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Model: |
Oct600 |
| Screen Size: |
Without Screen |
| Carrier Frequency: |
GSM 850/900/1800/1900MHz |
| Brand: |
Oneralarm |
| Certification: |
Ce FCC RoHS |
Product Description

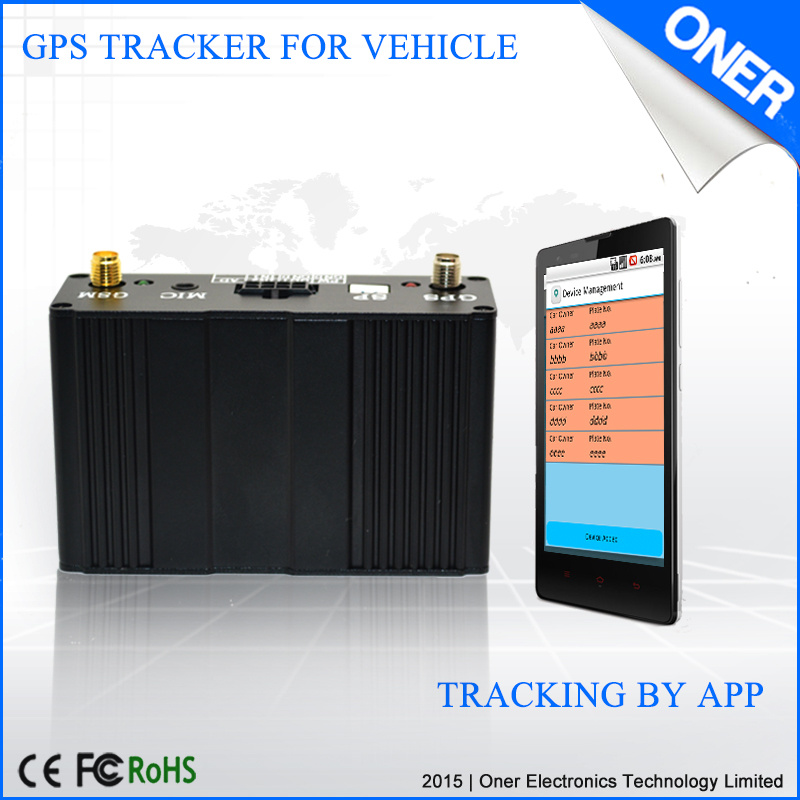

GPS locator for Fleet and Vehicle Management
It designed for fleet company specially, except providing the location, direction, speed and history of your vehicles. You can manage all your cars and drivers via RFID to reduce the problems like doing private jobs, low working effective, etc, and the historical and detail reports will help fleet owner to make management plan.
This device is cost-effect and highly recommended to use in fleet management, logistic and car rental service companies.What is more, support multiple tracking applications, it can offer comprehensive service while doing tracking and management.
Core Features:
Driver Identify with GPS tracker
Combine GPS tracker with RFID technology to improve driver and fleet management.
Before driving, each driver must do identify, after that, car can start by key, and then driver information will be sent to the tracking system, as well as car location, identify date and time, fleet owner will see who is driving the car and if this driver works on the schedule basis.
Not only that, driving records will be stored in the tracking system, that mean once any event occur, for example, active speeding alert and get the ticket, fleet owner will know the details according to the report.
GPS vehicle scheduling with RFID
Tracker force driver to swipe the RFID tag to register the car before driving, or else, car won't start even if driver has the key, and after identify, his info will be shown in the system, in this case,:fleet owner will know that if any driver change the shift without allowance;fleet owner will know car situation in real time, there is no chance for driver to do any thing else;Bad driving behaviors can be stopped, the events will be recorded in the system, fleet owner will know who should take responsibility.Drive company car for their own jobs is forbidden, if any one do the private jobs at non working time, device will tell the fleet owner by SMS in time.
this solution will set constraints to driver, and everything can be done on a schedule basis, make vehicle scheduling be real simple, improve working effective.
Main Features:
Real time tracking
LBS tracking
Track by interval
Detail address inquiry
Google map link inquiry
Remote engine cut
SOS emergency alert
Geo-fence alert
Over speed alert
External power cut alert
Low power alert
Power saving mode
Working time setting
Mileage calculation & setting
Engine detecting and report
SIM card balance inquiry
Voice Monitoring (option)
GPS tracking centre
1. PC-Based software
Free service. SMS modem is available, optional.
2. Web-based GPS tracking platform
User can control all the vehicles in real time, include real time tracking, history play back, route setting, driver management, POI, details reports, alarm setting, etc.
3, Smart Phone Version GPS Tracking system
It is very easy to operate, do not need to install any application, it can work with different smart phone
( android, iPhone, windows phone, etc).
| Power supply | +6V - +24V / 1.5A |
| Dimension | 7 3mm x 86mm x 30mm |
| Weight | 145g |
| Operating temperature | -20° to 5 5° C |
| Humidity | 5% to 95% ( Non-condensing ) |
| Frequency | GSM 850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 m, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 m (60,000 feet) max. |
| Velocity Limit | 515 m/second (1000 knots) max. |
| Interface | 2 input and 1 output |
| LED | 2 LED lights to show working status.
|
