| Prod Model: |
container truck gps tracker 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC |
| Network: |
GSM GPS |
| Wall Charger: |
110-220V Input, 5V Output |
| Battery: |
3.7V 6000mA/H Polymer Battery, Standby 100days |
| Functions: |
Shock Alarm, Engine Shut, Live Tracking |
| Weight: |
300g |
| Tracking Solution: |
SMS, GPRS Platform, Android Ios APP Tracking |
| Car Security: |
Stop/Resume Car Engine Remotely |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
Coban Tk104 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

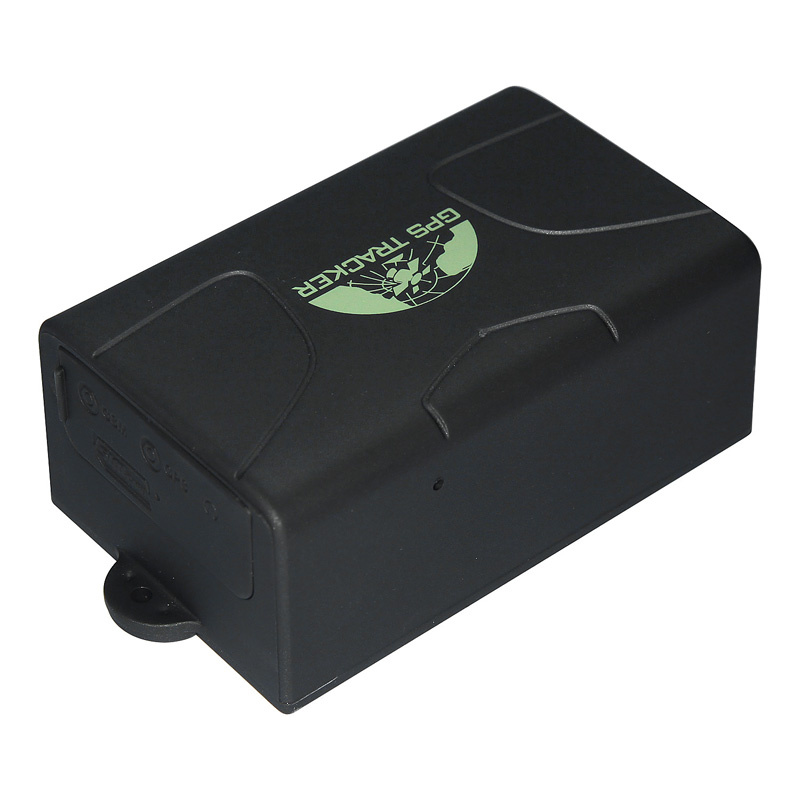

gps magnetic tracker with Real Time Tracking for Container Truck
vehicle Tracker GPS104/TK104 Features and Functions
1. Waterproof shell
2. Built-in large capacity 6000MA battery, long standby time of 60 days.
3. Powerful magnets to absorb to vehicle firmly.
4. Real-time tracking, retrieve of lost vehicles, cargo.
5. Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
6. Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
7. Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
8. Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
9. tracking function by timing and frequency
10. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
11. Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
12. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
13. Low battery alarm function
14. Remote Engine-stop and Resume. Applying directions: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
Part List
1 X GPS Tracker 104
1 X AC adapter (Input: AC 100-240V,Output DC: 1.5A,12V)
1 X Lighter car adapter (Car 12V OR 24V power)
1 X GPS Antenna
1 X GSM Antenna
1 X Relay
1 X Harness
GPS104 Specifications
Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GPS/GSM/GPRS |
| Band | 850/900/1800/1900Mhz or 900/1800/1900Mhz |
| GSM/GPRS Module | Simcom340z or Simcom300z |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA±1mA |
| GSM operating Current | 54mA±3mA |
| GPRS Current(data transfer) | 60mA±5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A±0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Tracking Solutions
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking
-Web server online tracking. Capable of monitor 10,000 objects
FAQ - Frequently Asked Questions
How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
The unit does not pick up a GSM signal and the SMS functions aren't working,
What's wrong? A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
Can I install the software on multiple computers?
No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
