| Prod Model: |
A9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colors: |
Green, White, Red |
| GPS+WiFi+Lbs Triple Positioning: |
Support |
| Battery: |
450mAh |
| Android & Ios System: |
Support |
| Real Time Positioning: |
Yes |
| GPS Antenna: |
High Sensitive Ceramics Active Antenna |
| GSM Antenna: |
FPC Antenna |
| G-Sensor: |
Support |
| SIM Card Slot: |
Micro SIM Card |
Product Description

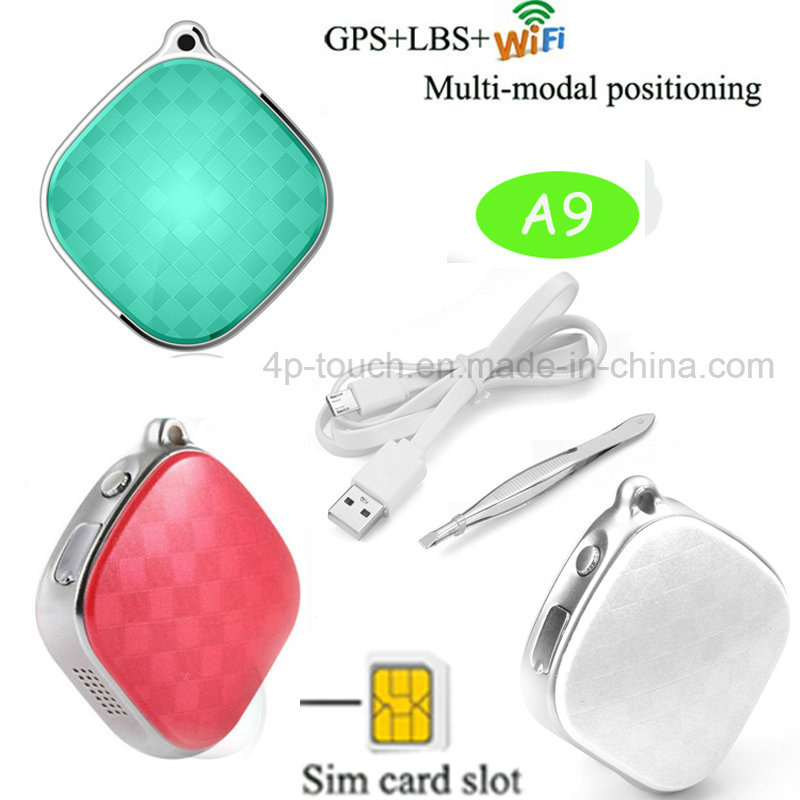

Main Features:
1. Delicate appearance pendant.
2. GPS + WIFI + LBS multimode precise.
3. positioning, static dormancy save.
4. electricity design, real-time positioning, intelligent monitoring.
Note: our 2G/GSM GPS tracker are ok with 3G SIM card ,just check with phone operator ,
the 3G SIM card is compatible with 2G GSM network is fine. Because even 2G is quit from market, but the 3G network still use the 2G base station, so the voice +data feature still valid as is. structure

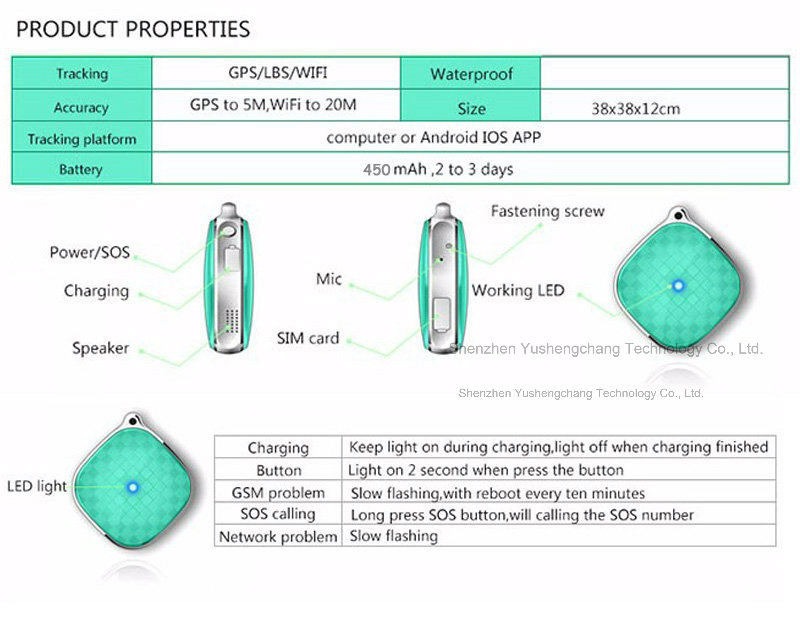

parts | Category | Specification |
| ID design | delicacy and smart |
| Whole machine size | 38X38X12mm |
| color | green,white and red |
| button | one button(power/SOS button) |
| weight | 22g without package, 130g with package box |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | FPC antenna |
| Battery | 450mAh |
| SIM card slot | 1pc |
| G-sensor | Support |
| I/O port | USB charge |
Product Parameter1) About WiFi positioning procedure
When device is with wifi on automatically, the nearby WiFi signals will be collected by device, and the IP of wifi is sole and specified. The device transmits all the signals to server to analyse, and then server send the location data back to device.
2) About WiFi positioning
A micro sim card is a must. Yes, the device can get the location with wifi, but the signals need to be transmitted to the server, and then the location data can be displayed on app for user to check, that's a whole procedure.
3) About "Not enabled" problem on APP interface

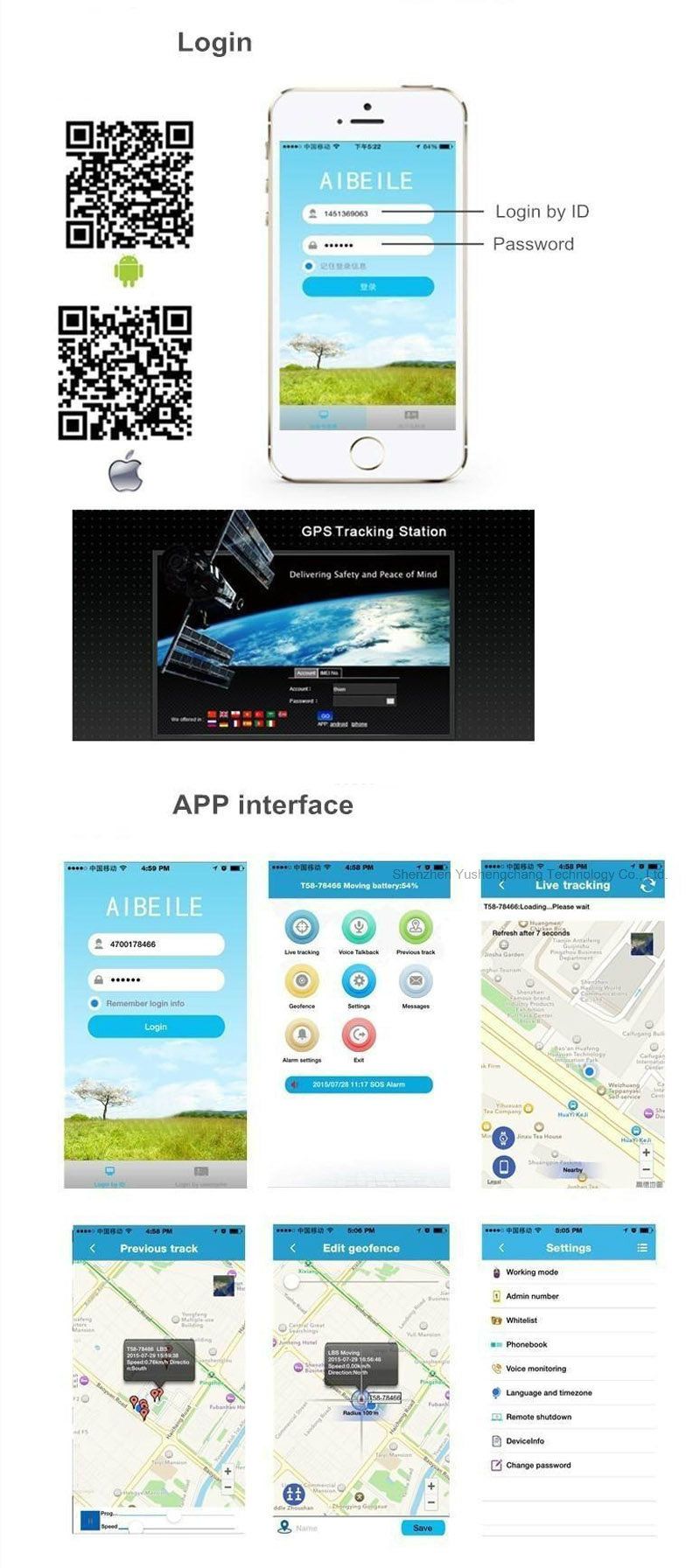

When login mobile APP with ID (on white gift box) and Password (default is 123456), if there are "Not enabled" words on interface, you will need to follow the steps on user manual to reset the APN (or you can contact seller for help)
Hardware
parts | CPU | MTK2503 |
| CPU chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average standby current | less than 2.5 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | can approval by 3C,CE&ROSH |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency method of antenna |
| bluetooth | No |
| G-sensor | Support |
| MIC | Support |
software
parts | supported operating | Support android 2.3 and above system, IOS5.0 and above. |
| call function | double talk/The remote monitoring |
| Language support | Simplified Chinese and English |
| Compatible with support for multi-languages |
| GSM+GPRS+GPS | GPS+LBS+WIFI Multi-modal positioning |
| support AGPS | Cold start 26 seconds positioning |
| call function | SOS call, voice monitor, whitelist for don't disturb |
| power management | Ultra-low power consumption of power management,intelligent dormancy |
| One key emergency | SOS one key emergency function ,auto answering the phone call |
| Smart Geo-fence | Outside the range setting can be automatic alarm |
| historical route | Can check history of three months |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting
parameters |

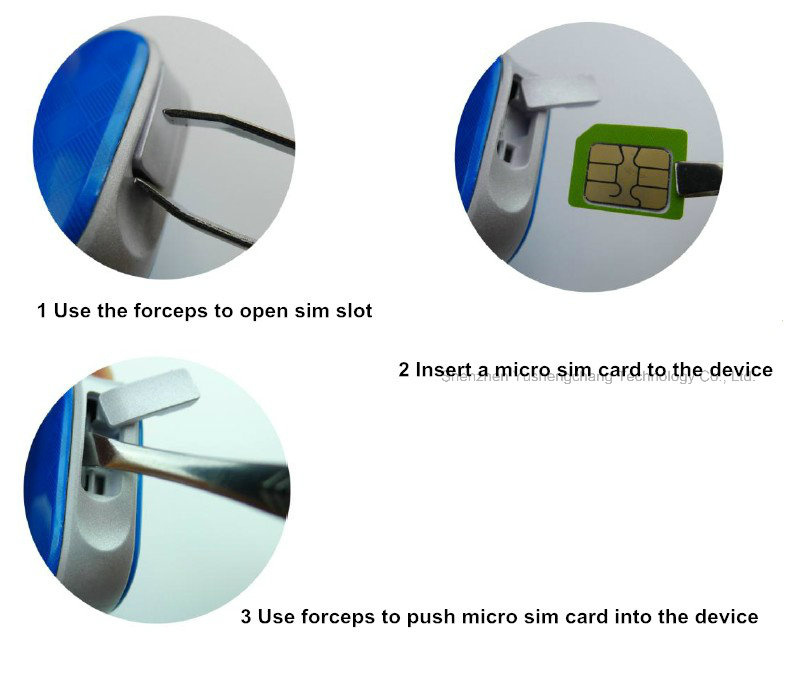

How to insert the micro sim card?

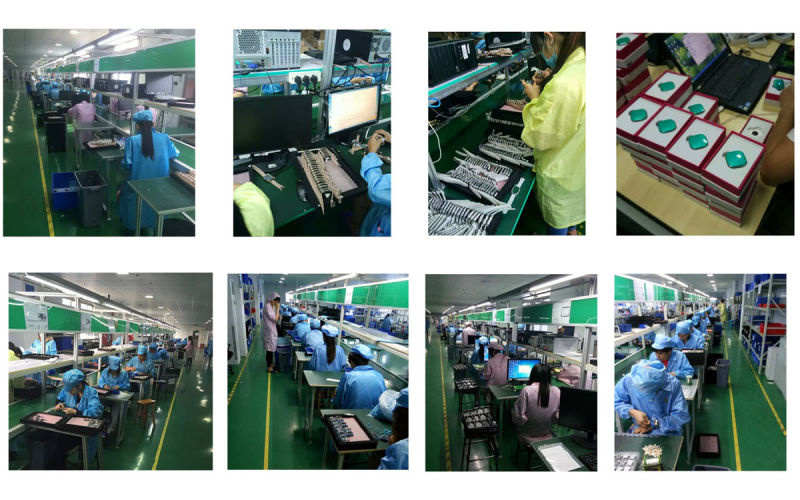

Production line:
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*When can I get the prices?
Within 12 hours after we received your inquiries.
Any questions or comments, please kindly feel free to contact me.
Connie Yan
Mobile: +8613267237809
Thank you!
