| Prod Model: |
A10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Huaxing A10 |
| Version: |
English |
| Accuracy: |
±8mm+1ppm, ±15mm+1ppm |
| Use: |
Automotive&Hand Held |
| Model: |
A10, SL600 |
| Brand: |
Hi-Target |
Product Description

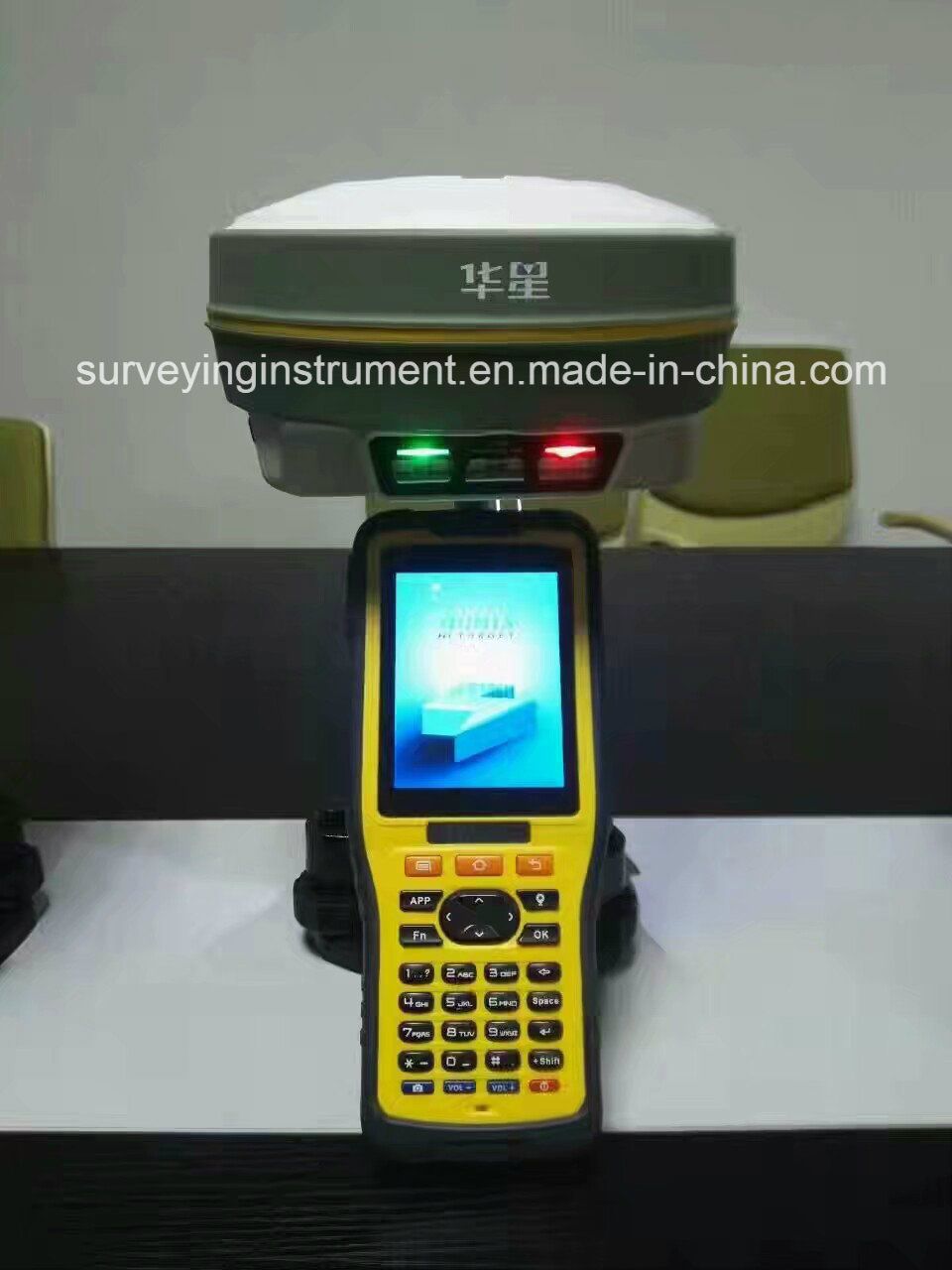

A12 GNSS RTK system
A12 GNSS RTK system not only inherits the Huaxing brand action, affordable, practical real strict principles and deal with new technology, the application of new scientific and technological innovation. Exquisite magnesium alloy body; comely and elegant design makes it lighter, stronger; Linux OS and Android phone book, more intelligent, more convenient; full constellation GNSS positioning system support, more efficient and applied more widely.
A12 GNSS RTK,,,,.
Huaxing A12 GNSS RTK system is Huaxing brand launched a high profile products, on the basis of affordable injected more scientific and technological achievements, better performance, more widely, practicability is better.
Huaxing A12 technical parameters
1, system configuration:
Operating system: Linux operating system
Start time: 3S
Data storage: built-in 8GB memory, support 32GSD card expansion
2, GNSS configuration:
The system kernel: the world-class PCC multi core system
Channel number: 220
BDS:B1, B2
GPS:L1C/A, L2E, L2C, L5
GLONASS:L1C/A, L1P, L2C/A and L2P (GLONASSM only)
GALILEO: upgrade reservation
Output format: ASC II: NMEA-0183 and binary TrimbleGSOF
Differential support: sCMRx, CMR, CMR+, RTCM2.1, 2.2, 2.3, 3, 3.2
Static format support: GNS, Rinex double static data format
3, precision and reliability:
RTK: plane positioning accuracy: + 8mm+1ppm;
Gao Cheng: + / - 15mm+1ppm
Static, fast static accuracy: Flat: + 2.5mm+1ppm;
Gao Cheng: + / - 5mm+1ppm
Code difference: 0.4m
SABS difference: 1.2m
Initialization time: typical 8 seconds
Initialization reliability: >99.9%
Data update rate: maximum support 20Hz
4, built-in communication:
Built-in network
>WCDMA/HSDPA/EDGE/GPRS/TD-LTE, support CDMA2000
Bluetooth communications
Integrated transceiver radio:
> Power: 0.1W-5W optional
> band: 450MHz-470MHz
> transmission rate: 19.2kbps, 9.6kbps
Channel number: 116 seamless compatible import GNSS
5 plug-in radio: 30W/35W, radio frequency transmission rate: 450MHz-470MHz; 19.2kbps, 9.6kbps; 116 channels can be switched flexibly;
6, user interface:
>: single button panel,
> three lights: LED lamp, lamp, lamp, satellite communication power light
7, electrical and physical properties:
> battery: high capacity lithium battery single 5000mAh/ block (2 blocks), removable battery GPRS mobile station more than 12 hours of continuous work.
> input voltage: 6-28VDC DC, with over discharge protection
> size: 160mm * 76.2mm
Weight: > = 1.2kg (including battery)
> Power: 4.0W
> material: shell is made of magnesium alloy material
8, environmental characteristics:
> IP68; anti dust and waterproof: 2 meters underwater temporary immersion, completely prevent dust from entering
> falling 3 meters: anti natural fall
> 100%, relative humidity: anti cold coagulation
Working temperature: -40 > 65 DEG C.
Storage temperature: -40 > 75 DEG C.
