| Prod Model: |
TK108-EZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Support Platform: |
UDP, TCP |
| Over Speed Alarm: |
Yes |
| Geo-Fence Alarm: |
Yes |
| Movement Alarm: |
Yes |
| Engine On Alarm: |
Yes |
| Power Failure Alarm: |
Yes |
| Sos Alarm: |
Yes |
| Free APP: |
Yes |
| History Play: |
Yes |
| Vibration Alarm: |
Yes |
| Use: |
Automotive |
| Model: |
Tk108 Mini GPS Tracker |
Product Description
TK108 GPS Vehicle Tracker is not only a gps tracker, but also a simple alarm, arm/disarm by SMS or phone call.
Functions and Features:
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car. S real physical address (such as city name, street name...(need support of the TS01 or TS03 center);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map. S URL;
6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in shock sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Support SOS button(optional)
15. Support analog input for fuel monitoring
16. I/O: 3 inputs and 1output
17. It can upgrade the normal car alarm with remote alarm function.
18. Compact size with water-proof design
19. Wide working voltage range, from 6V-36VDC, suitable for car or big truck.
20. Friendly SMS operation commands & SMS contents in different languages (English, Chinese, Arabic, Portuguese, Spanish)
21. There are 3 types of working mode for power saving flexibly.
22.8Mb offline data logger, it can store 8192 waypoints

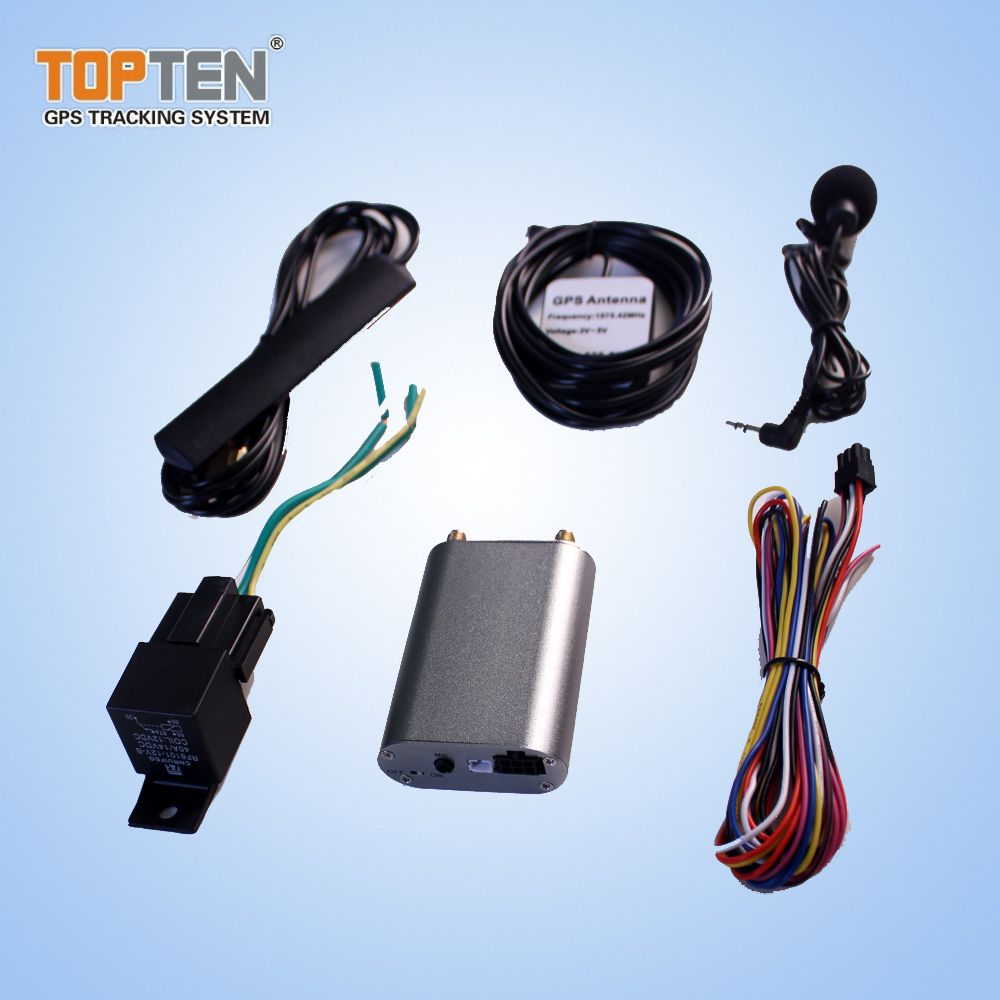

Packages
Main unit x 1PC
GSM antenna x 1PC
GPS antenna x 1PC
Mirophone x 1PC
Relay x1PC
6pins Wiring x1PC
| Working voltage | 6.0 ~32VDC |
| Power consumption: | Working current: 50mA; Peak current: 800mA; |
| Inside backup battery: | Rechargeable 3.7V 300mAh Li-ion battery |
| Size of main unit | 72*53*22 (mm) |
| Weight of main unit | 80g |
| Working temprature | -20~85 |
| Humidity | 0 to 95% |
| Frequency | Quad Band GSM 850/900/1800/1900Mhz |
| GPS chip | U-blox chipset |
| Channels | 20 channels |
| Working frequencies | 1575.42Mhz C/A(GPS) |
| Receiving sensitivity | 160dBm |
| Positioning Accuracy | <=10m ( wide open area ) |
| Speed accuracy | ≤0.2M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| Hot start | 1 sec., average |
| Warm start | 2 sec., average |
| Cold start | 40 sec., average |
