| Prod Model: |
GPS304 GPS receivers for motorcycle |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC ISO |
| Size: |
7.5×5.0×2.4cm |
| Weight: |
75g |
| Feature: |
Waterproof with Long Battery Life |
| Function: |
Motocycle / Motorbike GPS Tracking System |
| Sleep Mode: |
Yes |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| Tracking System: |
SMS, Phone APP , Web Platform |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
6.5" |
| Operating Principle: |
GPS ,GSM ,GPRS Tracking System |
| Port Number: |
No |
| Model: |
Tk304 Motorcycle GPS Tracker |
| Brand: |
Coban Baanool |
| Certification: |
CE FCC ISO |
Product Description

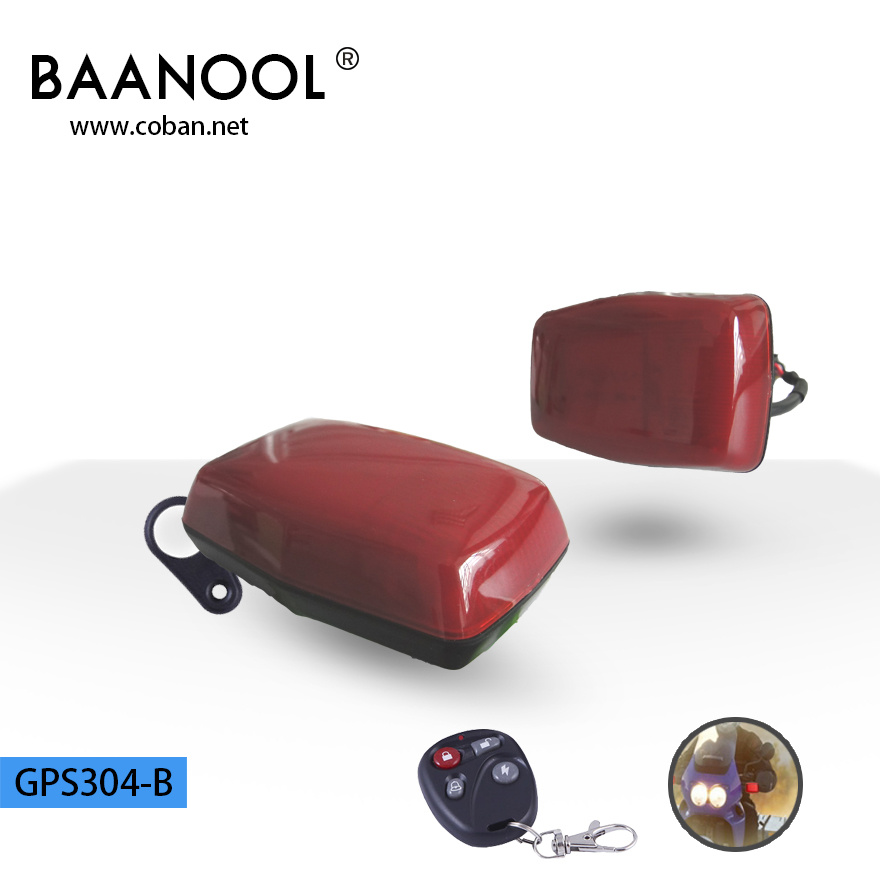

Model: GPS tracker TK-304
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
system scooter/motorcycle gps tracker GPS304
2. Features
* Taillights shape, easy to hide, waterproof design, and outdoor installation.
* Built-in GSM, GPS antenna.
* Support GPS and LBS (location based service) double tracking solution
* Support SMS / GPRS / Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
* Support configures the settings remotely
* Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
3. Main Function Description
Change Password
-Authorization
-Single Locating
-Auto track continuously
-Automatic update positions of vehicle turns
-GPS drift suppression
-Absolute street address by SMS
-Location based service (LBS)
-Voice Monitor -Data logging
-Data Load
-Forward the third parties' message
-Charges Inquiry
-Alarm Function
-Low battery alarm
-GPS blind Spot alert
-SOS
-Geo-fence
-Multi-area management
-Movement alarm
-Over speed alarm
-Arm
-Silent Mode
-DISARM
-Alarms under Arm State
-Shock Sensor alarm
-Check the Vehicle State
-Reset Hardware
-Sleep Mode
-Sleep by time
-Sleep by shock sensor
-No sleep mode
-Check IMEI
-Set up Terminal (local) Time
-TCP / UDP Switch
-Configure parameters by USB
-GPRS setting
-Setting up APN
-GPRS User ID and password Setup
-IP and port setup
-Less GPRS traffic
-Modes Switch between "SMS" and "GPRS"
-Set up monitor center number
Content | Specs |
| Dim. | 7.5×5.0×2.4cm |
| Weight | 75g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS chip | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | 12V~24V |
| battery | Chargeable 3.7V 1000mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
