GPS Smart Antenna Module with Mtk Mt3337e Chip
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
LS2003C-2RE |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Screen Size: |
5.0" |
| Carrier Frequency: |
Dual-Frequency |
Product Description
Company ProfileShenzhen Universe Communication Tech. Limited was established in 2002. It's a high technology firm which is concentrated on R&D, producing, and selling GPS, BEIDOU, GLONASS, telecommunication,navigation,aviation and base station antenna.We are in possession of R&D capability of more 100 kinds of product categories per year. We not only customize various types of antennas according to customers' requirements ,but also provide complete technical support and a complete set of solutions.Both the quality and price of our products are competitive.We also deliver goods in time and provide perfect after sale service.
| Specification |

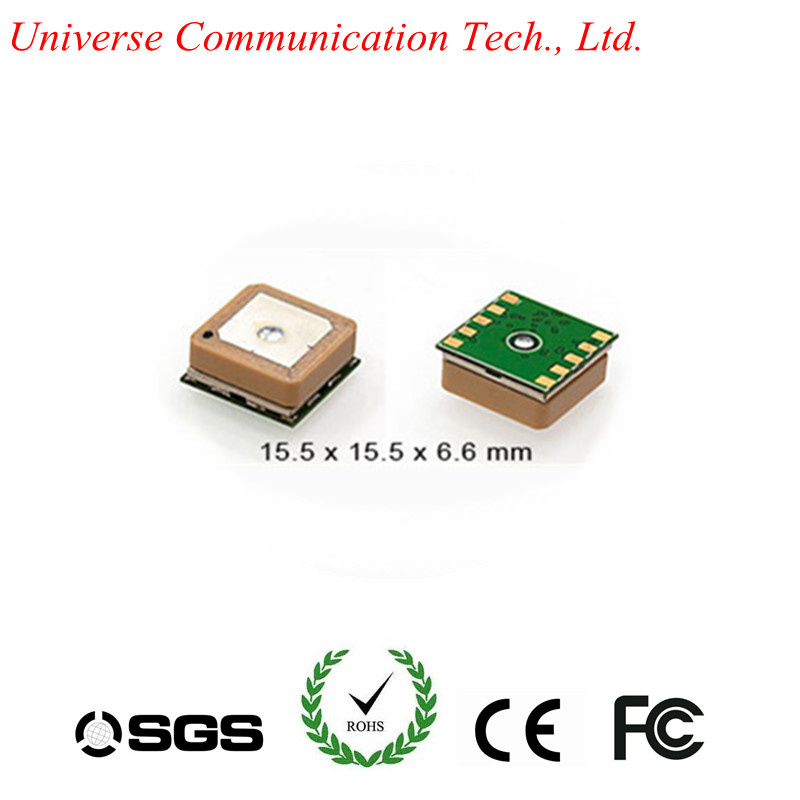

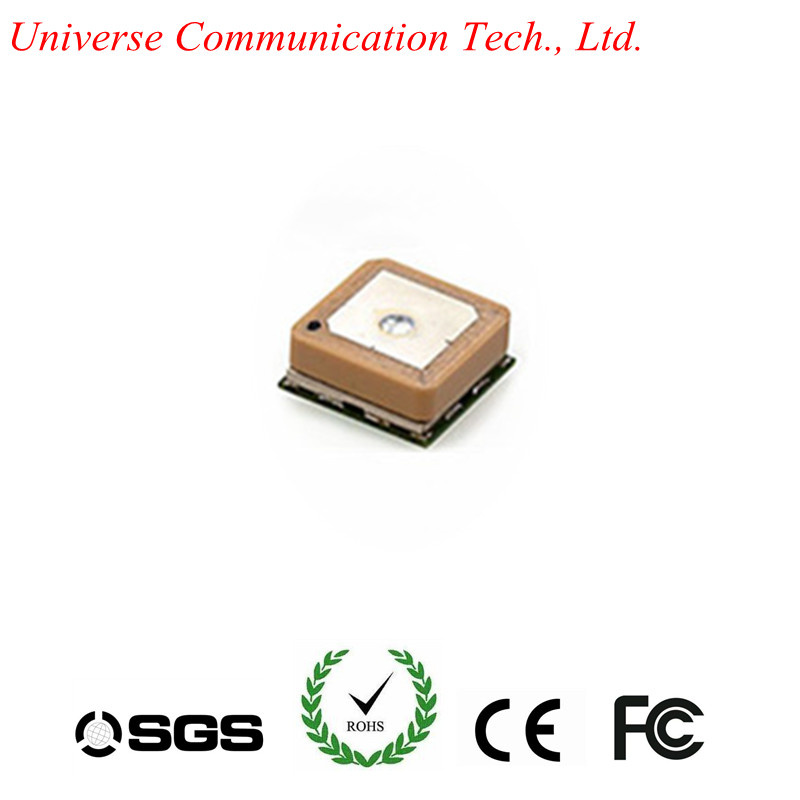

LS2003C-2RE is a complete standalone GPS smart antenna module, including embedded patch antenna and GPS receiver circuits. The module is powered by MediaTek GPS latest MT3337E chip which can acquire a lot of satellites at a time while providing fast time-to-first-fix and low power consumption. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.
This module supports self-generate orbit prediction, EASYTM, to achieve faster cold start and warm start. The EASYTM is no need of both network assistance and host CPU's intervention. The prediction is valid for up to 3 days and updates automatically from time to time when GPS module is powered on and satellites are available.
It is easy to install without both RF connector and coaxial cable that are needed in a separated GPS active antenna. In other words, reduce the cost and size. Also, speed up the time to market by eliminating R&D efforts on RF matching and stability between separated GPS antenna and module. Furthermore, it can be directly powered by a lithium battery without any external voltage regulators. Therefore, LS2003C-2RE of miniature size and brilliant performance is the best choice to be integrated into your slim devices.
|
| Features |
- Easy to install (SMT process capable)
- MediaTek high sensitivity solution
- Support 66-channel GPS
- Ultra low power consumption
- Fast TTFF at low signal level
- Built-in 12 multi-tone active interference canceller
- Free hybrid ephemeris prediction to achieve faster cold start
- Built-in DC/DC converter to save power
- Allow direct connection with the lithium battery
- Up to 10 Hz update rate
- ±11ns high accuracy time pulse (1PPS)
- Support 1PPS synchronize with NMEA output
- Supports self-generate orbit prediction to achieve faster cold start
- Support Japan QZSS
- Indoor and outdoor multi-path detection and compensation
- RoHS compliant
|
| Application |
- Personal positioning and navigation
- Automotive navigation
- Marine navigation
|
Gps Receiver| Chip | MTK MT3337E |
| Frequency | L1 1575.42MHz C/A Code |
| Channels | Support 66 channels(22 tracking, 66 acquisition) |
| Update rate | 1HZ default, up to 10Hz |
| Acquisition Time | Hot start(Open sky) | <1s (typical) |
| Cold start(Open sky) | 33s(typical) without AGPS |
| <15s (typical) with self-generate orbit prediction |
| Position Accuracy | Autonomous | 3m(2D RMS) |
| Datum | WGS-84(default) |
| Max. Altitude | <50,000m |
| Max. Velocity | <515m/s |
| Protocol Support | NMEA 0183 ver 3.01 | 9600bps(1), 8 data bits, no parity, 1 stop bits(default)
1Hz: GGA, GLL, GSA, GSV, RMC, and VTG |
Note 1: Both baud rate and output message rate are changeable by software command.GPS Antenna| Antenna Type | Patch Antenna(4mm thickness) |
| Polarization | RHCP |
| Frequency Range | 1575.42MHz ± 1.023MHz (1) |
| Gain | 2 dBic Typ. @zenith (1) |
| Axial Ratio | Max 4.0dB @zenith (1) |
Note 1: This value is measured with the evaluation board and must be fine tuned when

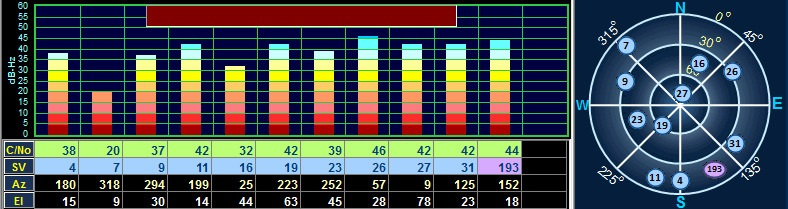

installed into your device. Please contact us for your antenna tuning.Receiving performance of LS2003C-2RE on the evaluation board in
the open-sky field.

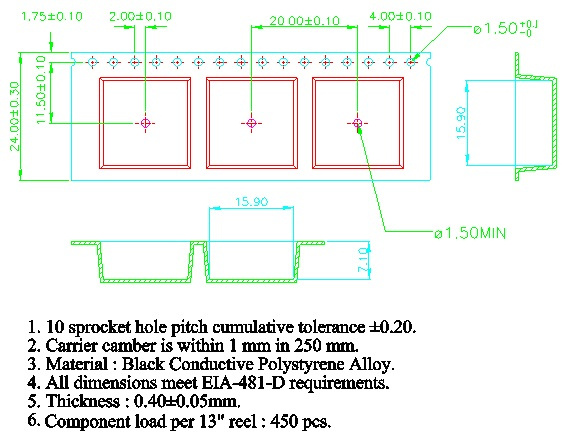

Packing Information
