| Prod Model: |
TK108 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
+6.0--+45VDC |
| Size Of The Main Unit: |
62*50*22(mm) |
| Weight Of The Main Unit: |
65g |
| Humidity: |
0-95% |
| GSM Frequencies: |
Quad-Band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chip: |
U-Blox 7 |
| Receiving Ways: |
20 Channels |
| Receiving Sensibility: |
-160dBm |
| Positioning Accuracy: |
≤10m (Wide-Open Area) |
| Mobile APP: |
Android and Ios |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
Mini |
Product Description

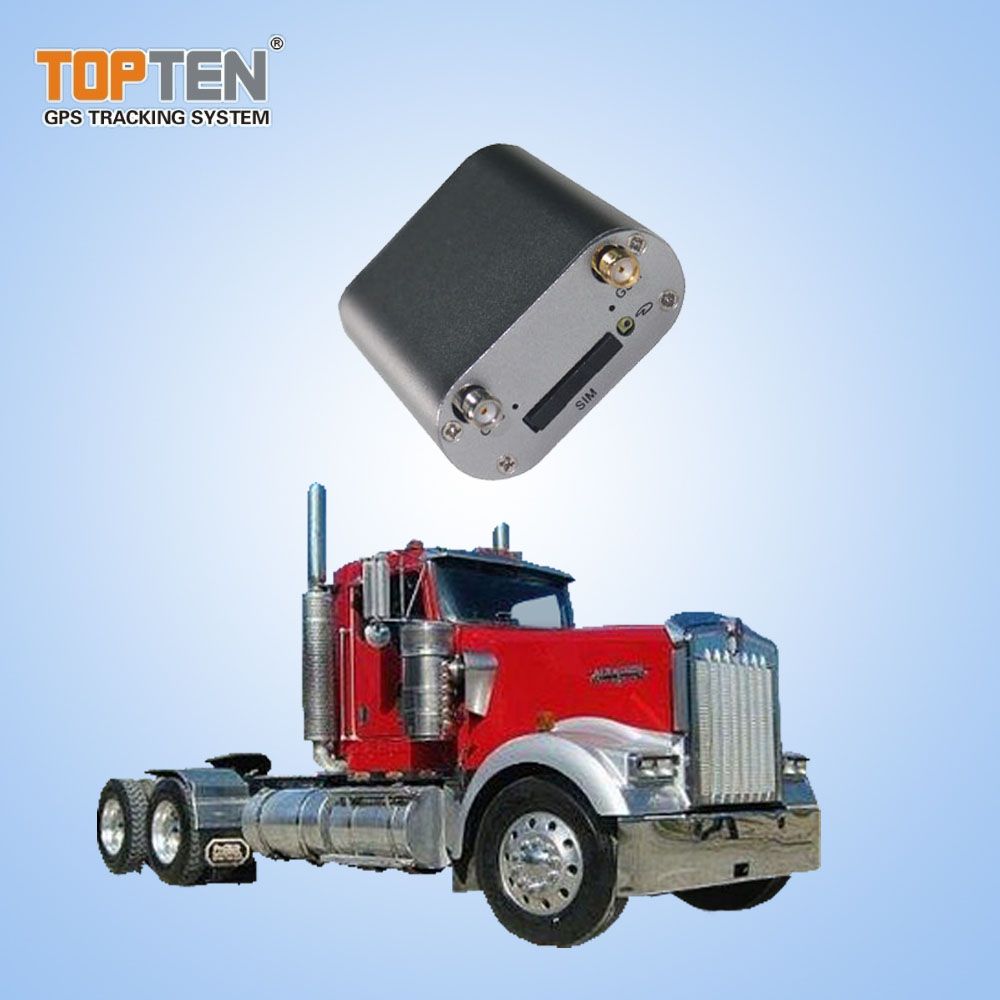

SMS GPRS GPS Locator for Car / Motor / Vehicle TK108 - ER
Selling point:
1. Built-in motion sensor for power saving & triggering alarm
2. Friendly SMS operation commands & SMS contents in different languages (English, Chinese, Arabic, Portuguese, Spanish)
3. Support SOS button (optional )
4. Support analog input for fuel monitoring (optional )
5. Voice monitoring
6. Wide working voltage range, from 5V-36VDC, suitable for motorcycle, car or big truck.
7. Power save desgin with minimum power comsumption 6mA
Features&Functions:
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in shock sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Support SOS button(optional)
15. Support analog input for fuel monitoring
16. I/O: 3 inputs and 1output
17. It can upgrade the normal car alarm with remote alarm function.
18. Compact size with water-proof design
19. Wide working voltage range, from 6V-36VDC, suitable for car or big truck.
20. Friendly SMS operation commands & SMS contents in different languages (English, Chinese, Arabic, Portuguese, Spanish)
21. There are 3 types of working mode for power saving flexibly.
22.8Mb offline data logger, it can store 8192 waypoints
Mini GPS car Tracker Standard Package:
Main unit 1PCS
GPS antenna 1PCS
GSM antenna 1PCS
Wiring 1PCS
Micphone 1PCS
Relay 1pcs
Alarm Types
Vibration Alarm: In arming status, if the car is vibrated, it will send out alarm SMS.
Power Failure Alarm: In arming status, if the battery is cut off, it will send out alarm SMS.
Engine ON Alarm: In arming status, if the cars engine is ON, it will send out alarm SMS and call the preset phone.
Movement Alarm: In arming status, the movement alert is enabled automatically. Once the car moves away from the parking point for 100 meters, it will it will send out alarm SMS and call the preset phone.
Geo-Fence Alarm: Once the Geo-fence is activated, if the car oversteps the boundary, it will send out alarm SMS.
Over-speed Alarm: If the car runs over the speed limitation continuously for 3 minutes, it will send out alarm SMS.
SOS Alarm: In any condition, if the SOS button is pressed, it will trigger the SOS alarm.
TOPTEN has been dealing with GPS tracker for 10 years.
Our advantages are:
Original and reliable products
3-5 new models each year
OEM & ODM
1-year warranty; 3-year maintenance
Fast delivery (Within 7 days for bulk order)
Technical support from professional R&D team
Contact us Today for your best car tracking solutions.
