| Prod Model: |
104GPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Weight: |
300g |
| Size: |
94*60*38mm |
| Shipment: |
DHL, UPS, EMS etc |
| Delivery Time: |
1-3 Working Days |
| Band: |
850/900/1800/1900MHz |
| Network: |
GSM/GPRS |
| Battery: |
6000 mAh |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Chip: |
SiRF |
| Model: |
104 |
| Screen Size: |
No Screen |
| Certification: |
CE FCC ISO |
Product Description

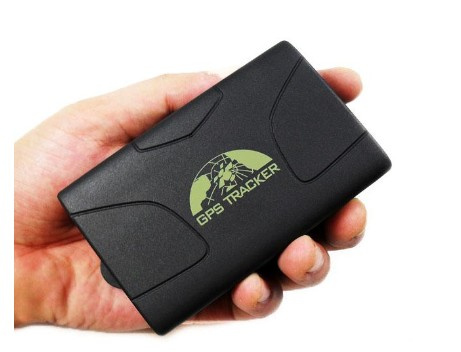

GPS Tracker/GPS Locator Device with External and Internal GPS/GSM Antenna TK104:
A)Built-in GSM/GPRS antennas
B)Built-in Microphone
C)Powerful magnet+waterproof
D)GPS+LBS double tracking solution
E)Absolute street address
F)Tracking By SMS or computer
G)Real-time online tracker
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Main function:
1. GPS+LBS positioning ways
2. Auto tracking continuously
3. Single location by calling tracker
4. Get absolute street address
5. Oil-cut and restore by sending SMS
6. Engine-cut and restore by sending SMS
7. Low power alarm
8. SOS panic alarm
9. Geo-fence alarm
10. Shock sensor alarm
11. Movement alarm
12. Overspeed alarm
13. Real time tracking by SMS or computer
14. Easy to switch between SMS and GPRS mode
15. Voice surveillance
16. Sleeping function: Can save power to extend the standby time
Applications
1)Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
2) Vehicle rental/Fleet management etc
3)Powerful magnet water proof, adsorbing in the hidden place of car.
4)Protect child /the old/the disabled/pet etc
5)Provide peace-of-mind for businessmen
6)Personnel Management
7)Criminals Tracking
| Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
