Shenzhen Baanool Electronics Co., Ltd. >> GPS Tracker 303h with Engine Stop, Vehicle GPS Tracking System with Tracking Software

GPS Tracker 303h with Engine Stop, Vehicle GPS Tracking System with Tracking Software

GPS Tracker 303h with Engine Stop, Vehicle GPS Tracking System with Tracking Software
Price: US $ 16.59-24.75/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: CAR gps vehicle tk303H
Location: GPS GPRS Lbs Location
GPS Sensitivity: -159dBm
GPS Accuracy: <5m
Car Voltage: 12V, 24V
Special Features: Real Time Tracking, Digital Compass
Tracking System: Web Server Platform
Certificate: Ce RoHS FCC
Warranty: 1 Year
Type: GPS Tracker
Use: Automotive
Operating Principle: GSM/GPS
Model: GPS Tracker Tk303h
Screen Size: No
Carrier Frequency: 850/900/1800/1900MHz
Chip: CB900
Brand: Baanool
Certification: ISO9001

Product Description




Product Description
 1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* Built-in GSM, GPS antenna, Waterproof ,compact, elegant appearance.
* Support GPS and LBS (Location based service) double tracking solutions.
* Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
* Support configure the settings remotely
* Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
3.  Main Function discription
1.For all models vehicles(12-24v)
2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.multi power-saving mode :
    Sleep by time / shock sensor
    deep sleep
     awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
    Movement alarm
    Geo-fence alarm
    Over speed alarm
    ext.power off alarm
    low battery alarm
7.Alarms under ARM State: ACC/Shock alarms
8.Remotey shutdown engine .
9.Support MiroSD
10.Built-in memory for 16,000 positions
11.Built-in 500 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP

Specification
Contentspecifications
DIM.9.6×5.3×1.6cm
Weight70g
NetworkGSM/GPRS
Band850/900/1800/1900Mhz
GPS Sensitivity-159dBm
GPS Accuracy5m
GPS Start timeCold status  45s
Warm status  35s
 Hot status  1s
Voltage12 V -24V
Backup batteryChargeable 3.7V500mAh Polymer Li-Battery
Storage Temp.-40°C to +85°C
Operation Temp. -20°C to +65°C
Humidity5%--95% non-condensing



Package

GPS unit
12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox


Attention

Optional accessories
MicroSD
Alarm sire(big or small both ok)
Fuel sensor

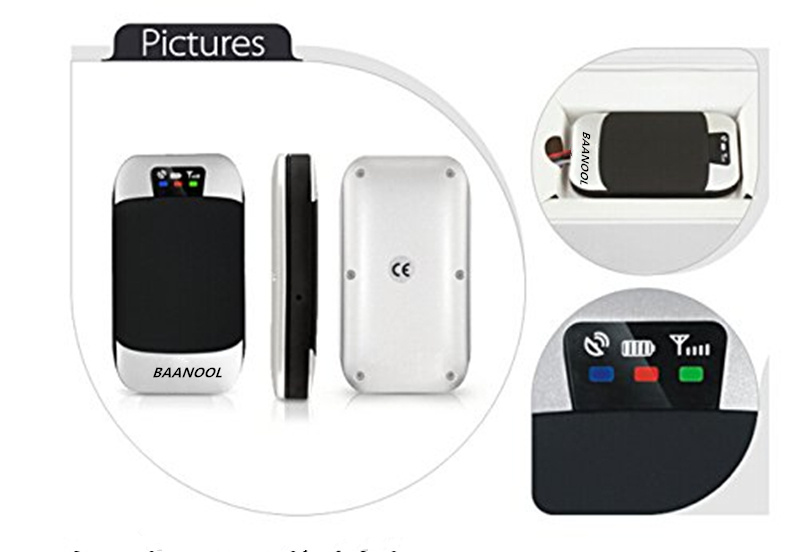

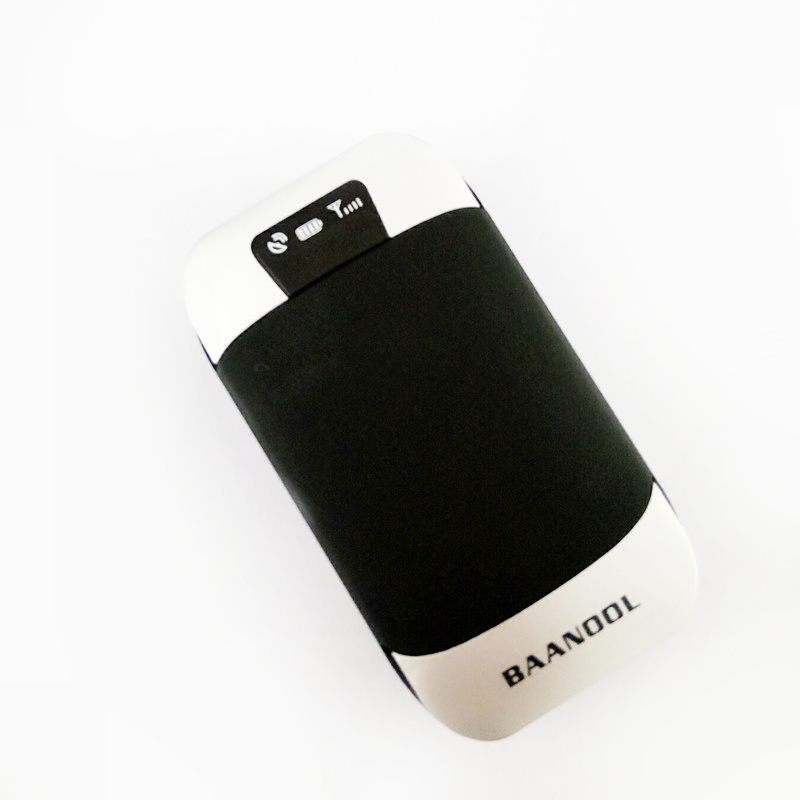

Picture Show

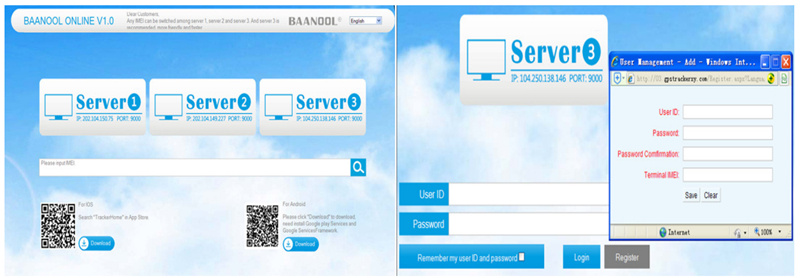

Our online tracking system

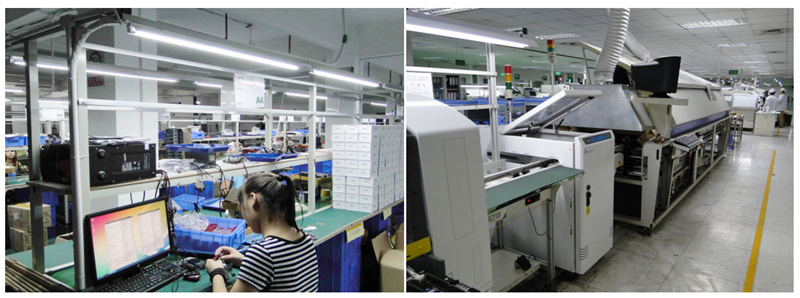

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.





Shipment and delivery

We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
 Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.



Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
