| Prod Model: |
bike GPS tracker tk305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Bike, Bicycle GPS Tracker |
| Apllication: |
Bike, Bicycle, E-Bike |
| Manufacturer Or Not: |
Yes |
| Warranty Time: |
1 Year |
| Certifiation: |
CE FCC ISO |
| Tracking Mode: |
SMS/GPRS |
| Shipment: |
by DHL, UPS, EMS, Ect |
| Delivery Time: |
2-3 Business Days |
| Network: |
GSM/GPRS |
| Tracking Way: |
SMS, Web Platform, Phone APP |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
20 |
| Model: |
Tk305 Bicycle GPS Tracker |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE FCC ISO |
Product Description

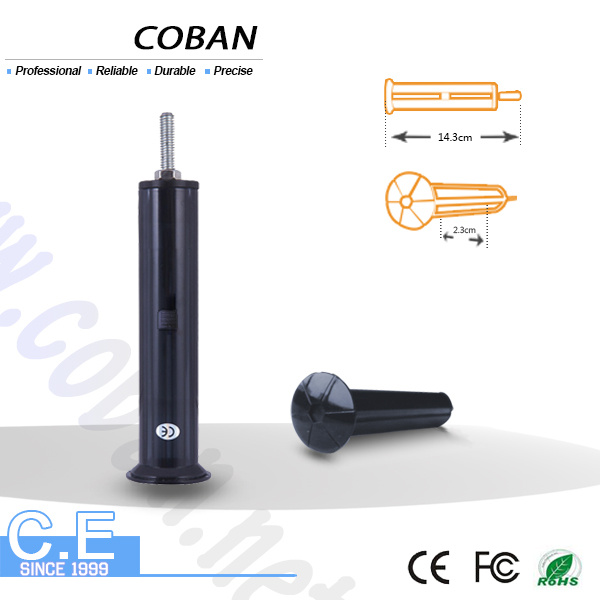

Model: GPS tracker TK-305
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
-Small easy to install + get street name
-SMS/APP/GPRS web platform live tracking
-remote monitor
3. Main Function discription
1. Real-time track bicycles
2. Set Authorization(5 mobile phone numbers to be allowed to authorize in the tracker)
3. Scheduled wake-up:
Send SMS command"schedule+password+space+7d"to GPS unit, tracker will wake up each 7days and report location (m: minute, h: hour, d: day) the maximum interval at most is 3 digital
Cancel scheduled wake-up: After wake up, send sms"nonschedule+password", this function can be canceled.
4. Auto track continuously:track by time and distance interval.
5. Location based service(LBS) + GPS double real time tracking solution
6. Sleep by shock sensor mode, sleep by time mode, multiple power-saving mode
7. get Absolute street address by SMS
8. Arm/disarm
9.Shock alarm
10.Geo-fence
11.Movement alarm,overspeed alarm,low battery alarm
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500PCS or customized order, lead time will be 3-5 days after the receipt of payment. Please contact our sales to make sure the current inventory.
1. Specifications
Content | Specs |
| DIM | 23.5*110mm |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Charger Voltage | 110-240V input
3.7V output |
| Battery | Chargeable changeable 3.7V 700mAh Li-ion battery |
| Standby time | 30 |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
