GPS Tracker for Car and Motorcycle Tracker Gt08-Ez

Prod Model:	GT08-EZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Color:	Black
Working Voltage:	6V-32V
Weigh Of Main Unit:	65g
Inside Backup Battery:	3.7V 300mAh Li-ion Battery
GPS Chip:	U-Blox

Product Description

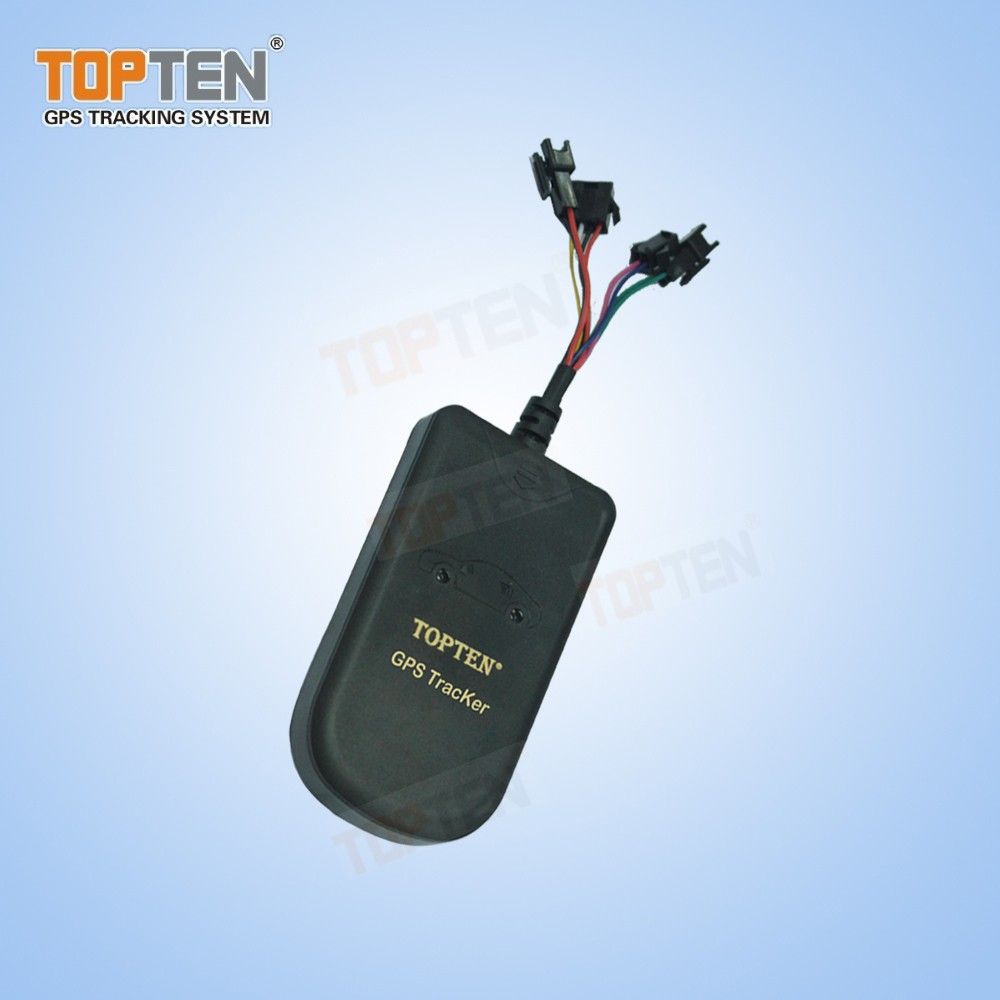

GT08 GPS/GPRS Motorcycle/Vehicle Tracker

GT08 has 62 x 50 x 22mm mini size, easy installation, inbuilt GPS/GSM antennas with High sensitivity of -160dB, competitive price, suitable for car and motorcycle use.

GT08 GPS Motorcycle/vehicle tracker is the cost-effective solution for security & real-time tracking. It is specially designed for motorcycle/car tracking because of its compact size and water-proof design.

Features & Functions
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name...(need support of the TS01 or TS03 center);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in motion sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Support firmware upgrade on air remotely.
15. Support SOS button(optional)
16. Support analog input for fuel monitoring(optional)
17. I/O: 3 inputs and 1output
18. It can upgrade the normal car alarm with remote alarm function.
19. Compact size with water-proof design
20. Wide working voltage range, from 5V-36VDC, suitable for motorcycle, car or big truck.

Positioning accuracy ≤ 10m (wide-open area)
Speed accuracy ≤ 0.2M/S (wide-open area)
Positioning mode Auto 2D/3D
Hot start 1 sec., average
Warm start 2 sec., average
Cold start 40 sec., average

Packing List
Main unit 1pcs
4pin wiring 1pcs
Manual 1pcs
Microphone 1pcs
12V relay 1pcs

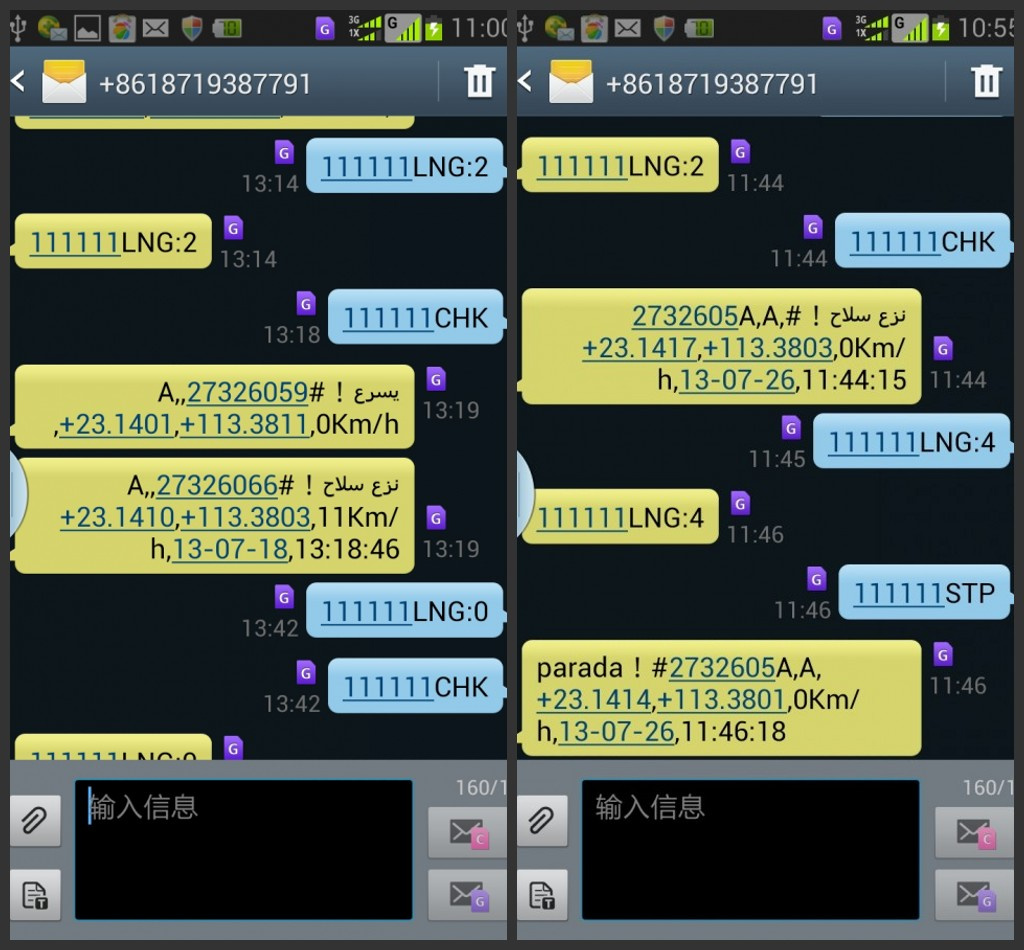

Define   sms content in different languages, support  English ,Arabic, Spanish, Portuguese, French

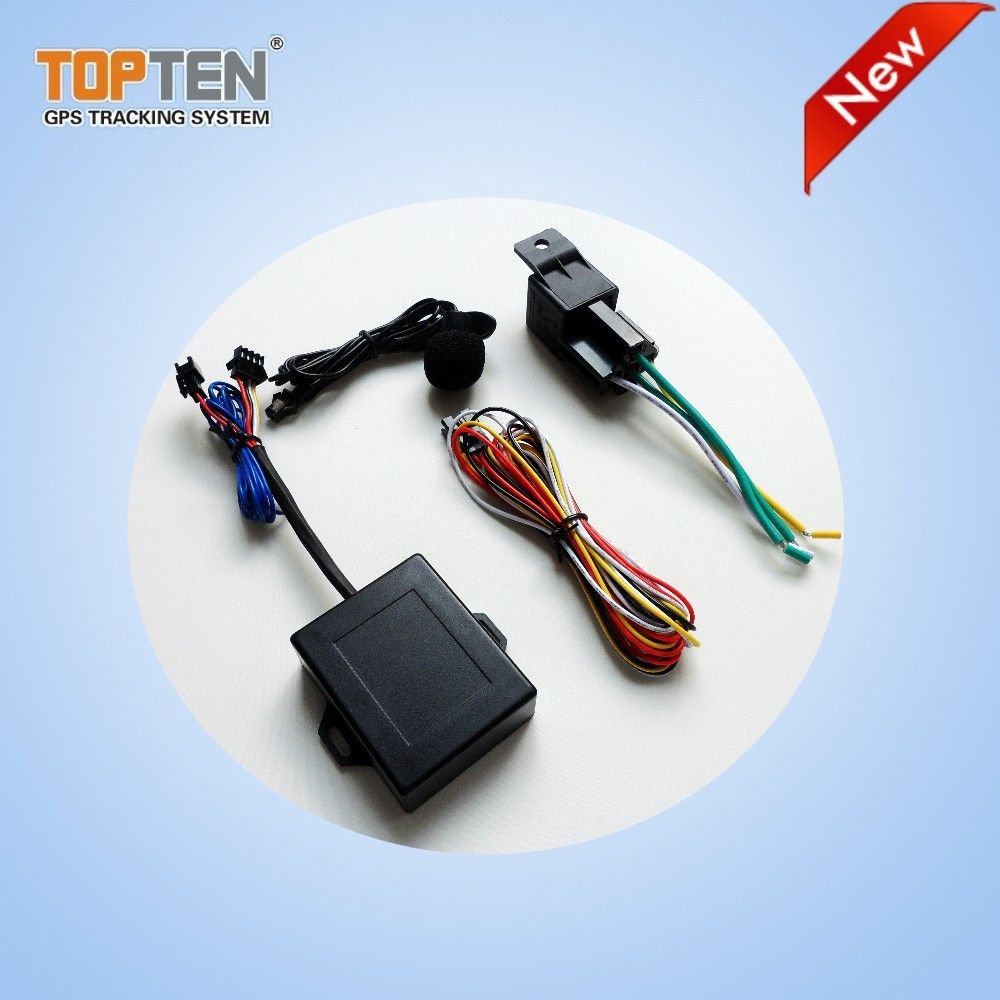

Family photo : Main unit , relay, wiring, microphone

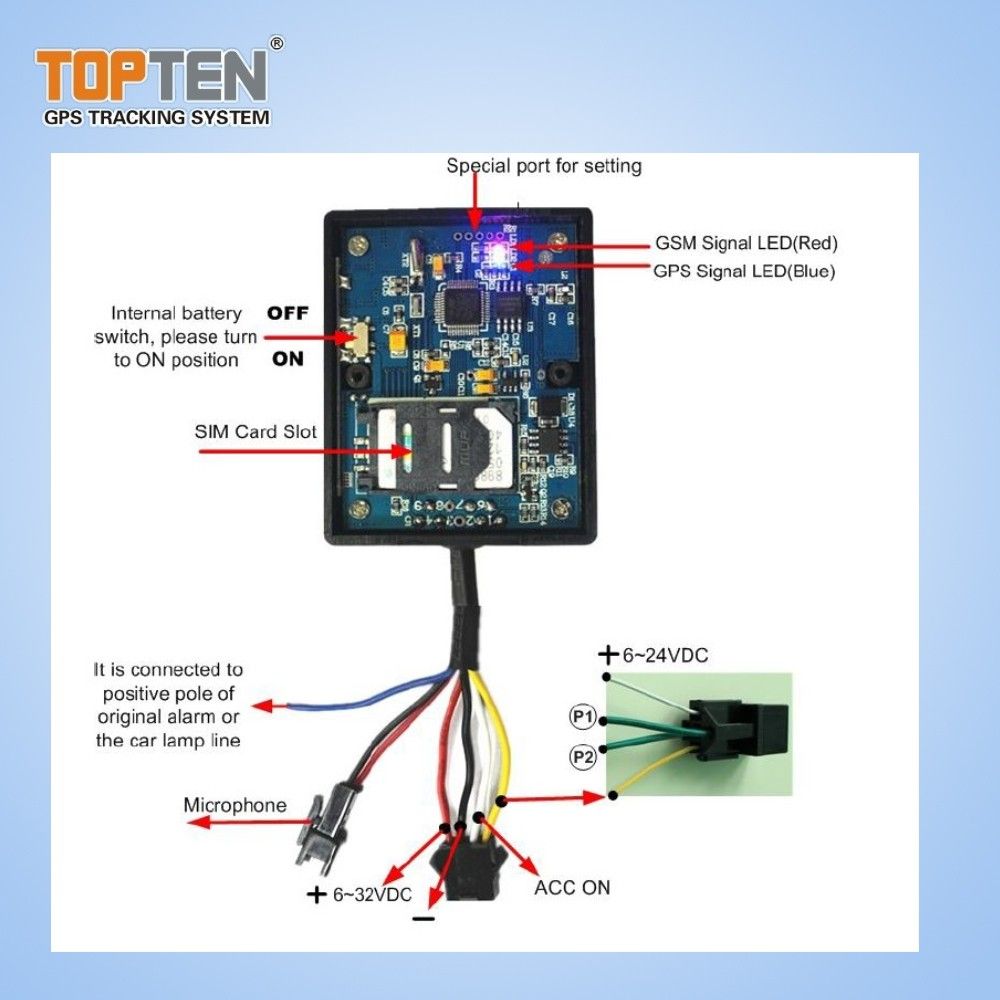

Installation Wiring diagramme
