| Prod Model: |
gps BN303H |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
<5m |
| Car Voltage: |
12V,24V |
| Special Features: |
Real Time Tracking, Digital Compass |
| Tracking System: |
Web Server Platform |
| Certificate: |
Ce RoHS FCC |
| Warranty: |
1 Year |
| Function: |
Hidden Install, Sos |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GSM/GPS |
| Model: |
GPS Tracker Tk303h |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Chip: |
CB900 |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
Product Description

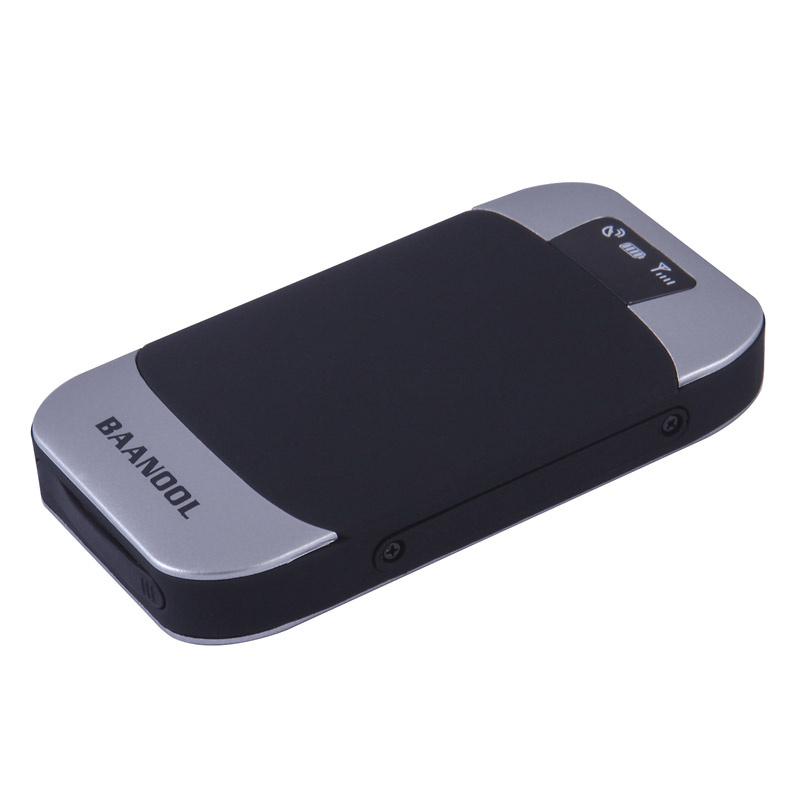

Easy Install Vehicle GPS Tracking Device Car/ Motorcycle GPS Tracker GPS303H
Model:GPS303H/IThis tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Multiple Tracking Ways:*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Tracking on with CD software on PC.
*Web based online tracking on PC at our server www.Gpstrackerxy.COM
Features
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
| Content | specifications |
| DIM. | 9.6×5.3×1.6cm |
| Weight | 70g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

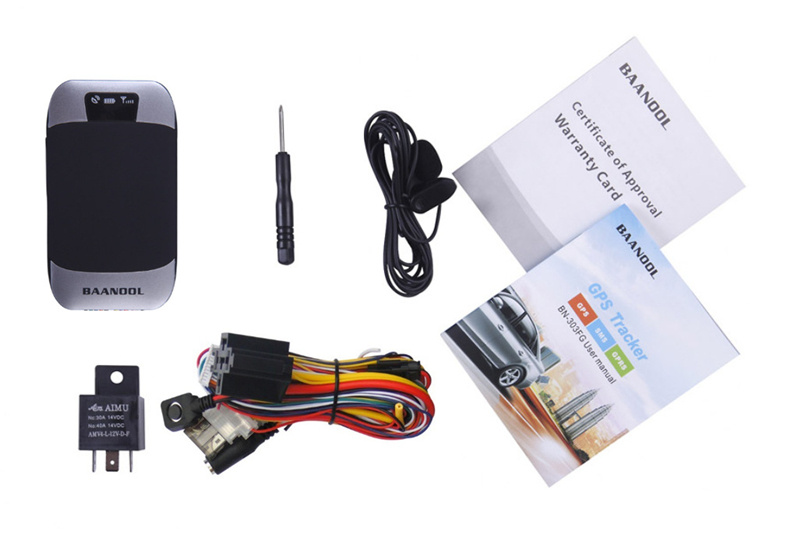

Package
GPS unit
12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
Attention
Optional accessories
MicroSD
Alarm sire(big or small both ok)
Fuel sensor
Function
Single Locating
Auto track continuously (Track with limited times upon time interval,
Smart track upon time and distance interval)
Turning points update automatically
GPS drift suppression
Exact street address
Location based service (LBS) / Cell-ID Locating
Monitor
Data logging
Data Load
Forward the third parties' message
SIM card Balance Inquiry
ACC working alarm
Cut off the oil and power system
Calibration of fuel sensor
Function of Remote Controller (Option, for model G ONLY )
Arm(Set up arm by SMS, Set up arm by remote controller (Option, for model G ONLY))
Silent Mode
DISARM
Decide how many times of alarm message
Alarm Function(Low battery alarm, External Power off alarm, GPS blind Spot alert, SOS, Geo-fence, Multi-area management, Movement alarm, Overspeed alarm, Fuel Alarm)
Alarms under Arm State (Door Open Alarm, ACC Alarm )
Built in Acceleration SensorAlarm
Alarm without GSM network service
Sleep Model
Check the Vehicle State
Check IMEI
Set up Terminal (local) Time
Reset Hardware
Configure parameters by USB
Activate "Fuel" value in GPRS data
Set up monitor center number
web platform and mobile APP

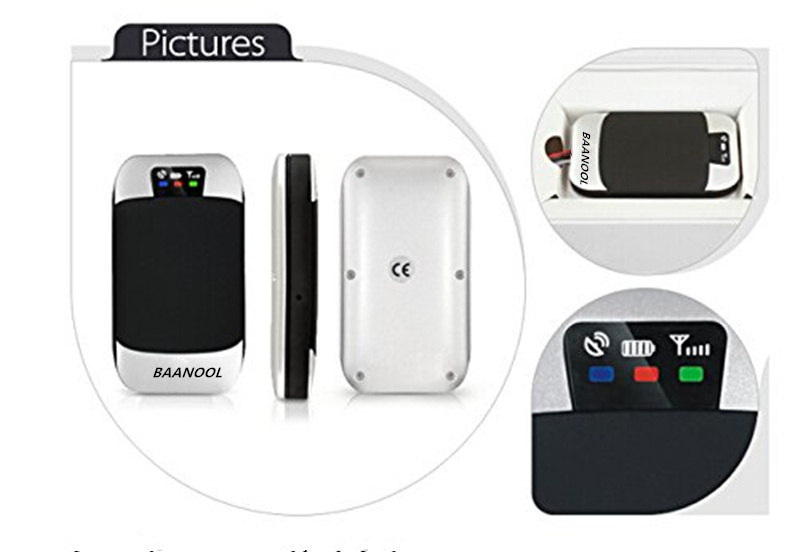

Picture Show
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
