| Prod Model: |
GPT12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension Mm: |
96(L) × 50(W) × 11.2(H) |
| Location Service: |
GPS/Lbs |
| Tracking: |
by Website & Mobile APP |
| GSM Frequency: |
850/900/1800/1900MHz |
| Battery Capacity: |
5000mAh |
| Weight: |
65g |
| GPS Positioning Accuracy: |
5-15 Meters |
| Lbs Positioning Accuracy: |
About 200m |
| Real Time Tracking: |
Yes |
| Long Standby Time: |
3 Yeara |
Product Description
New long standby GPS tracker GPT12 has been released.It is widely applied for long time tracking upto 3 year
s.User can view the status of vehicle on tracking platform system via website and mobile APPDefault working mode is that the tracker works 5 minutes once per day, then it sleep, it will automatically wake up at that time and work for 5 mins, repeat this working mode.
PRODUCT FEATURES:Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
GPS/LBS double-Positioning mode, support A-GPS
5000mAh Battery , standby for 3 years.
Long Standby mode, wake up for 5 mins a day, then sleep.
Turn to Emergency mode for real time tracking after wake up.
GEO-Fence Alarm, Low battery Alarm.
Track and config device by PC & APP online & SMS query
Switch to emergency mode to restore the real-time tracking mode
Support EELINK protocol and can be integrated to platform of customers
OTA upgrade firmware.
PLATFORM/APP:Tracking ( Emergency Mode )
Route Play Back ( Emergency Mode )
Remote Setting
Geo-fence Alarm
Low Battery Alarm
PlatformYou can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Delivery*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.

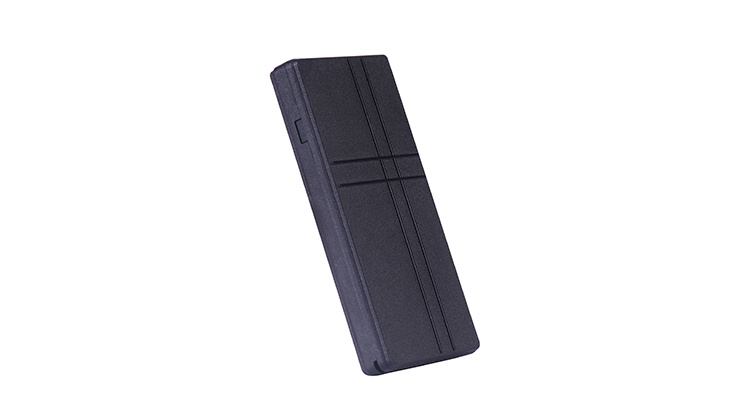

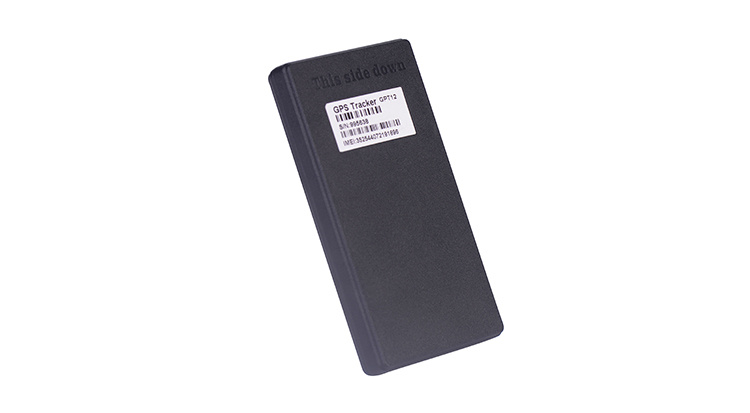

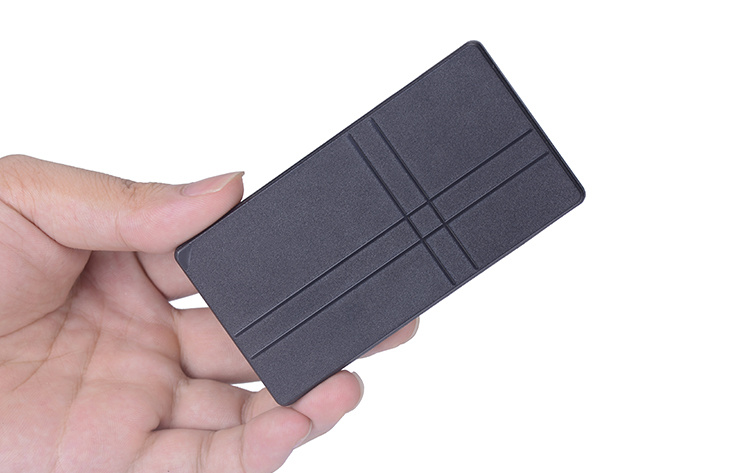

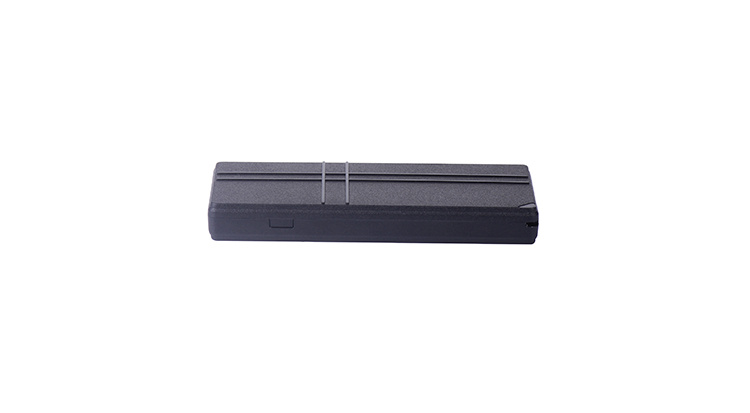

PRODUCT PICTURE:
PRODUCT PARAMETER:| Voltage | 3.7 VDC |
| Work Current | <30 mA |
| Standby Current | <15 uA |
| GPS Accuracy | 5-15m |
| GSM Accuracy | About 200m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold Start | <3s,<15s,<60s |
| Battery Capacity | 5000 mAh |
| Dimensions (mm) | 96(L) × 50(W) × 11.2(H) |
| Work Temperature | -20ºC~70ºC |
| Work Humidity | 20%~80%RH |
| Net Weight | 65g |
PlatformYou can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the location of vehicles/Individuals/Employee/Assets/Valuables on the platform server.
DeliveryDHL/Fedex/UPS/TNT/EMS etc airexpress are optional, we can send goods as the requirement of client.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, please contact our sales to make sure the current inventory.
Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.Warranty1.All products have been strictly Quality Checked in house before packing.
2.All products have been well packed before shipping.
3.One year warranty is provided for all models. We will bear maintenance cost during warranty. OEM&ODM Service
1.Customize logo and brand print on the device,MOQ is 1000pcs.
2.Customize the tracker for special functions, MOQ is 3000pcs.
3.Offer software customization service,such as communication protocol.

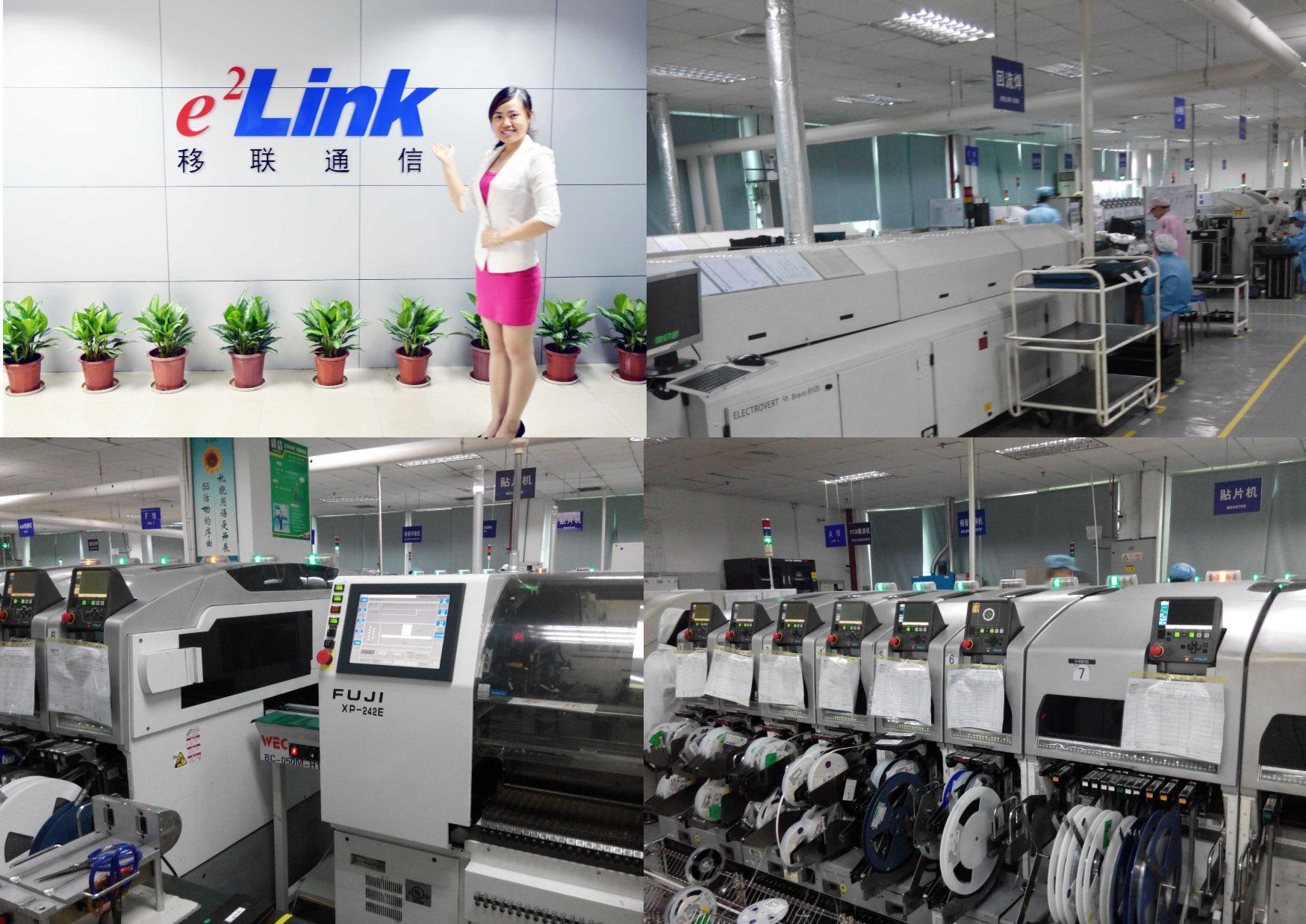

Shenzhen Eelink Communication Co. Ltd Introduction
We are a manufacturer and exporter of GPS trackers, GPS OBD II tracking devices, vehicle tracking devices and personal tracking devices. We also offer mature GPS tracking solutions and comprehensive OEM and ODM services.
We are engaged in GPRS / WCDMA + GPS / Beidou positioning products, OBD and CAN bus and related services; GPS positioning platform's development, including PC / Android / iOS
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
