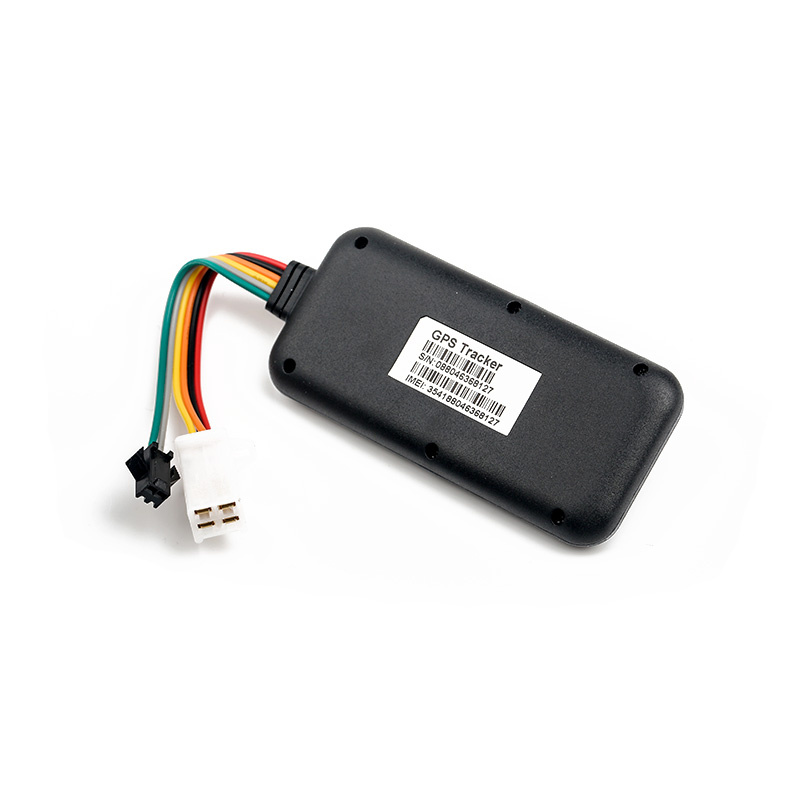

| Prod Model: |
TK119 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tk119 |
| Color: |
Black |
| Weight: |
50g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36/48/60/72VDC |
| Dimension: |
79.5(L)X38.5(W)X10.5(H) |
| Optional Accessory: |
Relay, Mic, Sos |
| Battery Capacity: |
70mAh |
| GPS Accuracy: |
5-15m |
| Lbs Accuracy: |
About 200m |
Product Description
PRODUCT FEATURES:
Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
Super Wide Input Voltage:9-72V DC.
Support GPS / Beidou / Glonass precise positioning system, support A-GPS
GPS data uploaded by GPRS regularly, Web browser platform, Smart phone app and SMS query.
Supports ACC status checking and vehicle status notifying.
Built-in battery, Power disconnect alarm & Low battery alarm.
Built-in G-sensor ,Vibration, collision and falling alarm.
GEO-fence alarm, speed & shift alarm.
Use relay to remotely cut the oil
Extend I/O port to add extension function
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.
Water proof level IP67
Function Interface: Power cable , Relay, ACC
Extended Interface: GPIO for adding extensions (need customization)
MODLE TYPE:
TK119 : GPS
TK119-BD :GPS + BEIDOU
TK119-GN :GPS + GLONASS
Base Specifications
Voltage 12VDC/24VDC/36/48/60/72VDC
Work current <30mA@12V
Standby Curren <10mA@12V
GPS positioning accuracy 15m
GSM positioning accuracy 100m
GPS Frequency 1575MHz
GSM Frequency 850/900/1800/1900MHz
Hot/warm/cold start time <3s, <15s, <60s
Battery capacity 70mAh
Dimensions (mm) 87(L)X41.6(W)X 12(H)
Operating temperature -20º C~70º C
Operating humidity 20%~80%RH
Net Weight 50 g
Platform
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements...
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Three
Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
Case Four
Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
GPS Tracker TK119 parameter| Main Function Table |
| Voltage | 12VDC/24VDC/36/48/60/72VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 70mAh |
| Dimensions (mm) | 87(L)X41.6(W)X 12(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 50 g |
