| Prod Model: |
tk303i tracking |
| Location: |
GPS GPRS Lbs Location |
| GPS Sensitivity: |
-159dBm |
| Car Voltage: |
12V, 24V |
| Tracking System: |
Web Server Platform |
| APP: |
iPhone Android ISO APP |
| Type: |
GPS Tracker |
| Operating Principle: |
GSM/GPS |
| Model: |
GPS Tracker Tk303I |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Certification: |
ISO9001 |
Product Description
GPS Tracker
Product Description
gps tracking system for vehicle car,fuel level monitor remote shut engine off GPS303I
Model:GPS303H/I
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Multiple Tracking Ways:
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Tracking on cell phone IOS and Andriod App
*Web based online tracking on PC at our server www.Gpstrackerxy.COM.
Features
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
SpecificationsContent
| Specification
|
| DIM | 9.6×5.3×1.6cm |
| Weight | 70g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
GPS start time
| Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

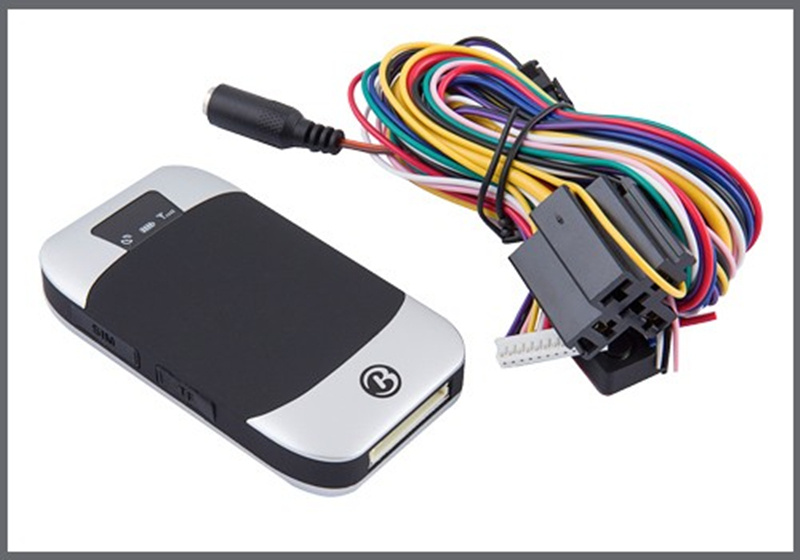

Package
GPS unit
Remote Control
12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
Single Locating
Auto track continuously (Track with limited times upon time interval,
Smart track upon time and distance interval)
Turning points update automatically
GPS drift suppression
Exact street address
Location based service (LBS) / Cell-ID Locating
Monitor
Data logging
Data Load
Forward the third parties' message
SIM card Balance Inquiry
ACC working alarm
Cut off the oil and power system
Calibration of fuel sensor
Function of Remote Controller (Option, for model G ONLY )
Arm(Set up arm by SMS, Set up arm by remote controller (Option, for model G ONLY))
Silent Mode
DISARM
Decide how many times of alarm message
Alarm Function(Low battery alarm, External Power off alarm, GPS blind Spot alert, SOS, Geo-fence, Multi-area management, Movement alarm, Overspeed alarm, Fuel Alarm)
Alarms under Arm State (Door Open Alarm, ACC Alarm )
Built in Acceleration SensorAlarm
Alarm without GSM network service
Sleep Model
Check the Vehicle State
Check IMEI
Set up Terminal (local) Time
Reset Hardware
Configure parameters by USB
Activate "Fuel" value in GPRS data
Set up monitor center number
web platform and mobile APP

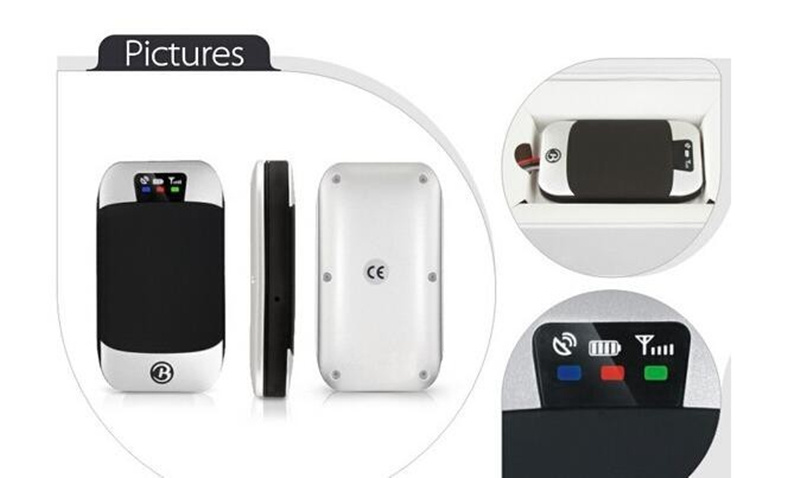

Picture Show
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Shipment and delivery
We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q2. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. How to use the GPS Tracker ?
A:Prepare an common GSM card can make device to work.
Q6: Does the GPS can work anywhere ?
A: Yes, if places has GSM GPS signal, our device is quad band 850/900/1800/1900MHz.
Q7: Can I use my own tracking system and server ?
A: Yes, we can share the device protocol for free.
Q8: Can I make my own company LOGO and design on device case or color box ?
A: Yes, if for customize box: MOQ 500pcs; if for customize device case : MOQ 200-300pcs depends on model.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
