| Prod Model: |
tk305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
24 Months |
| GSM Band: |
850/900/1800/1900MHz |
| Net Work: |
GSM/GPRS |
| Dim: |
23.5*110mm |
| Standby Time: |
30 Days |
| OEM: |
Yes |
| Certificate: |
CE FCC ISO |
| Delivery Time: |
2-3 Days |
| Tracking System: |
SMS, Phone APP, Web Platform |
| Feature: |
Hidden, Long Standby Battery Life |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
305 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
Product Description

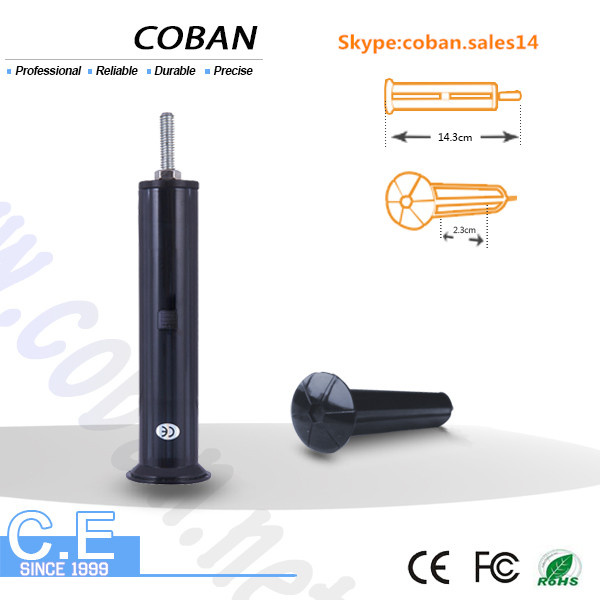

GPS Tracker 305
- Product Description:
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
* Five types Tracking way
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: Simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
- Applications:
Specially designed for bicycle anti-theft and tracking.
- Features
-Small easy to install + get street name
-SMS/APP/GPRS web platform live tracking
-Remote monitor
- Functions:
1. Real-time track bicycles
2. Set Authorization(5 mobile phone numbers to be allowed to authorize in the tracker)
3. Scheduled wake-up:
Send SMS command"schedule+password+space+7d"to GPS unit, tracker will wake up each 7days and report location (m: minute, h: hour, d: day) the maximum interval at most is 3 digital
Cancel scheduled wake-up: After wake up, send sms"nonschedule+password", this function can be canceled.
4. Auto track continuously:track by time and distance interval.
5. Location based service(LBS) + GPS double real time tracking solution
6. Sleep by shock sensor mode, sleep by time mode, multiple power-saving mode
7. get Absolute street address by SMS
8. Arm/disarm
9.Shock alarm
10.Geo-fence
11.Movement alarm,overspeed alarm,low battery alarm
- Specifications:
Content |
Specs |
DIM |
23.5*110mm |
Weight |
50g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Charger Voltage |
110-240V input
3.7V output |
Battery |
Chargeable changeable 3.7V 700mAh Li-ion battery |
Standby time |
30days |
Storage Temp |
-40°C to +85°C |
Operation Temp. |
-20°C to +70°C |
Humidity |
5%--95% non-condensing |
- Pakage details:
GPS unit
Inductive Key
700MA Cylindrical Li-ion battery (2 pieces)
305 Dock charger
M6 Screw(with nut)
Giftbox
Manual
CD
- Detailed Images
- Web Platform Tracking:
- Andriod and IOS Apps for GPS trackers:
- OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
