| Prod Model: |
TK510 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Working Frequencies: |
1575.42MHz C/a (GPS) |
| Speed Accuracy: |
<=0.2m/S (Wide-Open Area) |
| Humidity: |
0 to 95% |
| GSM Frequency: |
900/1800MHz or 900/1800/850/1900MHz |
| Receiving Sensibility: |
-158dB |
| Size Of The Main Unit: |
110mm X 80mm X 30mm |
| Weight Of The Main Unit: |
180g |
| C/a Code: |
1.023 MHz Chip Rate |
| Positioning Accuracy: |
<=15m (Wide-Open Area) |
| Receiving Ways: |
20 Channel |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description
Features and Functions:
1. GPS tracker + RFID Car alarm with long-distance tag;
2. Active RFID Driver ID identification(optional)
3. Track on command or by time interval or by distance;
4. Arm/disarm by SMS, phone call;
5. Arm/disarm automatically by 2.4G RFID tag(optional);
6. Check the cars real physical address (such as city name, street name..);
7. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
8. Check the location directly by the Google maps URL;
9. Online website tracking by GPRS data network;
10. Odometer function
11. Over-speed alert, Geo-fence alert, movement alarm;
12. Snap photo and send out via MMS &Email when there is SOS alarm, ACC On alarm or door open alarm, snap the photo via platform;
13. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;
14. Crash alarm, when there is crash & it can detect it automatically;
15. Fatigue driving alarm, if continuous driving time is over the limitation, the siren will sound to warn the driver;
16. Check the coordinates via LBS, even there is no any GPS signal..
17. Support voice monitoring & 2-way talking;
18. Cut off engine to stop the car safely by SMS/GPRS;
19. Built-in shock sensor for power saving & triggering alarm
20. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alert immediately.
21. SOS alarm & anti-tamper alarm, once the wiring harness is disconnected, it will trigger this alarm;
22. Support analog input for fuel monitoring or temperature monitoring;
23. I/O: 5 digital inputs, 2 analog inputs & 5 digital outputs(2 impulse outputs);
24. Lock/unlock the car door remotely by SMS/platform;
25. Wide working voltage range, from 6V-45VDC, suitable for car or big truck.
26. There are 3 types of working mode for power saving flexibly.
27. 4Mb offline data logger, it can store 8192 waypoints

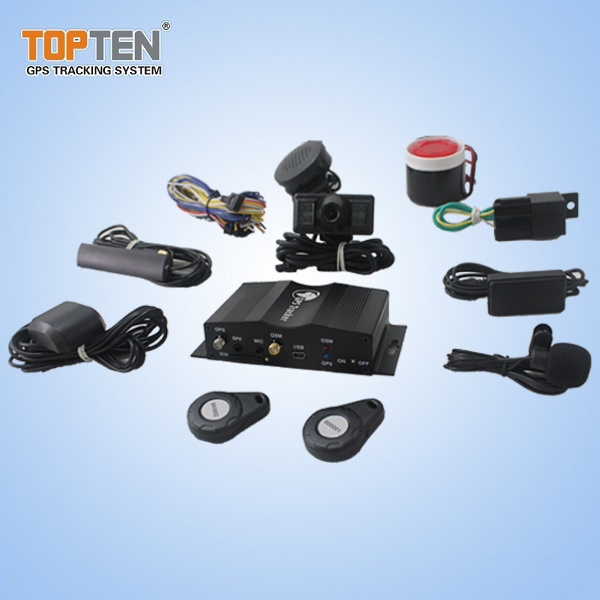

TK510 Standard Accessories: |
| Main unit | 1pc |
| GSM antenna | 1pc |
| GPS antenna | 1pc |
| SOS button | 1pc |
| Relay | 1pc |
| Wiring | 1set
|
