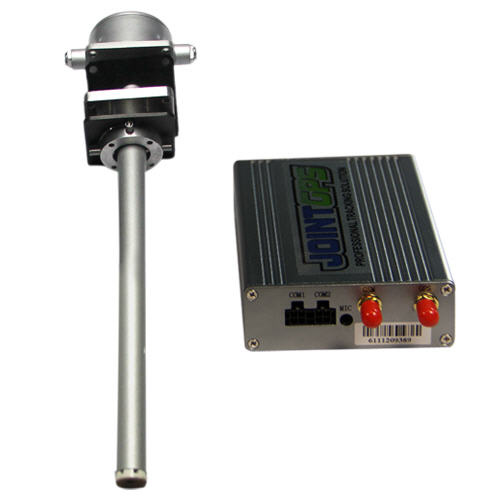

GPS Tracker with Capacitance Fuel Level Sensor for Fleet Fuel Consumption Monitoring

Name: GPS Tracker with Capacitance Fuel Level Sensor for Fleet Fuel Consumption Monitoring
Brand: all-electronics-online.com
SKU: 708663835
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GP6000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	103X71X26mm
Case:	Aluminium
Supported Accessories:	Level Sensor, Camera, Temperature Sen
Weight:	600g (Include Accessories)
Type:	GPS Tracker
Use:	Automotive
Port Number:	Multichannel
Model:	Integration Type
Carrier Frequency:	Dual-Frequency
Certification:	ISO14001

Product Description

fuel level monitoring solution includes 4 parts: GPS tracker, Fuel level sensor, Camera, and fuel monitoring software:

1. GPS Tracker:

With our trackers, you can real time track the vehicles, monitor vehicle's status information, export relevant reports, be updated with alert in different situation and remotely immobilize the vehicle, etc.

It is also designed for fleet management, not only work with fuel level sensor for real time fuel level monitoring, but also support MDT for fleet dispatching, with Camera for vision monitoring, with Temperature sensor for temperature monitoring, with RFID for drivers' ID identification, with TPMS for tyre pressure & temperature monitoring, etc.

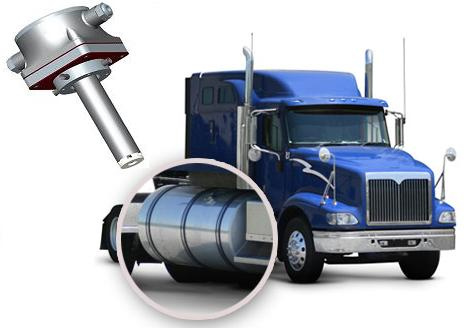

2. Fuel level Sensor:

With 4 years R&D, and tested by high-end clients in the market over 80 countries, our 5th generation fuel level sensor will bring you better experience in the following 5 aspects:

FEATURE	FUNCTION
1). Adjustable	Can be cut off in the field as per different size of tanks;
2). High precision	Resolution < 1mm; Accuracy: +/-0.5%;
3). Patented installation	Just need to drill one hole, easy and efficient;
4). Multi signal output	RS232, RS485, Voltage (0 ~ 5V), Current (4 ~ 20mA), Resistance (10 ~ 500Ω);
5). 4 ~ 70V input	Over-load protection, reverse-wiring protection

Our fuel level sensor can be cut off in the field, we used to offer them in standard length: 550mm, 750mm, 1000mm, 1500mm, etc.

3. Camera:
Our trackers support up to 6 cameras at the same time for picture taking.
The camera will take the picture in following conditions:
1. Triggered by different alerts under abnormal conditions (abnormal fuel level change, illegal door opening, etc.)
2. Taking pictures at preset time ( eg. 8:10am, 5:43pm, etc.)
3. Taking pictures any time you sent command.

4. Fuel level monitoring solution:

Provides high-precision measurement of fuel level in the fuel tank;

Gives detailed information about fuel tank refueling, draining, consumption;

Prevents fraud or unauthorized use of fuel.

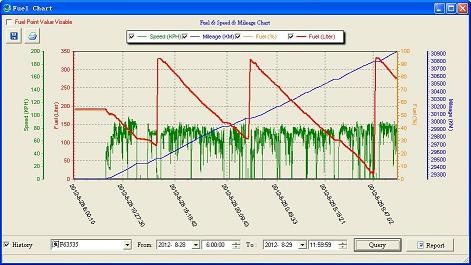

Red line: Fuel level Green line: Speed Blue line: Mileage

Any abnormal fuel level change, the alarm will be generated and sent via GPRS to server or SMS to mobile phone, the camera will be triggered to take pictures and upload, for you to be easily aware of it and take prompt action.
