GPS Tracker with Fuel Sensor for Fuel Monitoring System

GPS Tracker with Fuel Sensor for Fuel Monitoring System
Price: US $ 195-228/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 2/Piece
Pay Type: T/T,Paypal,Money Gram,Western Union
Prod Model: GP6000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 121*82*29mm
Weight: 820g (with Standard Accessories)
Working Current: 60-100mA
Working Voltage: 10-30V
Backup Battery: 8.4V 400mAh Ni-MH Battery
GPS Chip: Sirf Star III
GSM: 850/900/1800/1900 MHz
Alarm Type: GPRS/SMS/Email
Type: GPS Tracker
Use: Automotive
Operating Principle: Mixed Type
Port Number: Multichannel
Model: Integration Type
Carrier Frequency: Dual-Frequency
Chip: SiRF
Screen Size: 121X82X29mm (Lxwxh)
Brand: Jointech
Certification: ISO9001, CE, FCC, Anti-Explosion

Product Description

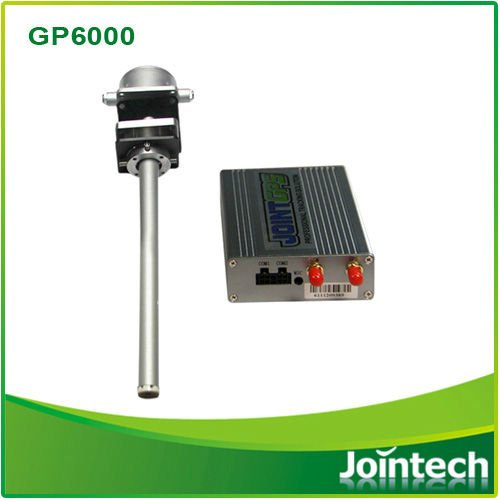

Model: GP6000   GPS Tracker with Fuel Sensor for fuel monitoring system

Features:

1.     Multi fuel tank monitoring supported
2.    Low consumption, wide range voltage input design, Automatic self-check/ protection/recovery during short-circuit
3.    Varity of intelligent upload mode, support angle changes uploading.
4.    Static Drift processing
5.    Built-in 3D G sensor that can suit different project application demands and intelligent detecting harsh braking alarm.
6.    Road and polygon shaped geo fence  supported,
Alarm for road deviation, road speeding, zone speeding, zone over time parking is available.
7.  More than 20 alarms are available (SMS, GPRS)
8. More than 10 kinds of external devices are supported and it can connect three kinds of external devices at same time, excellent redevelopment frame.
9. 43,200 pieces history data, with feature of broken-point continuingly-transferring.
10. OTA


Fuel sensor:
Model: JT606X

1.     Wide Power Voltage Input

DC: 4-70V, while DC: 4-36V is recommended to ensure the long term stability.

2.     Cuttable due to the fuel tank size

It can be cut due to the fuel tank size & installation place in spot, the cut part' length can not over one third of the fuel senor length (before cutting), and it need to be calibrated after cutting.

3.     Easy installation

By adopting the unique flange, it just need to drill one hole in the fuel tank to finish the installation, the details is with reference to the installation instruction.


Example:  Vehicle---B333

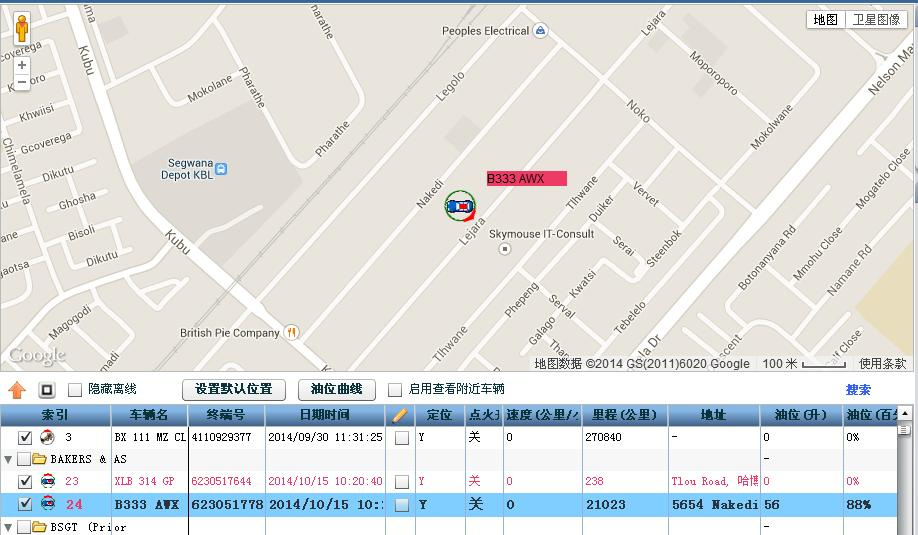

Real Time Tracking:

By choosing the vehicle in the list and then double click, you will see the locating is '5654 Nakidi', speed is '0', mileage is '21023km', fuel volume is '56L'

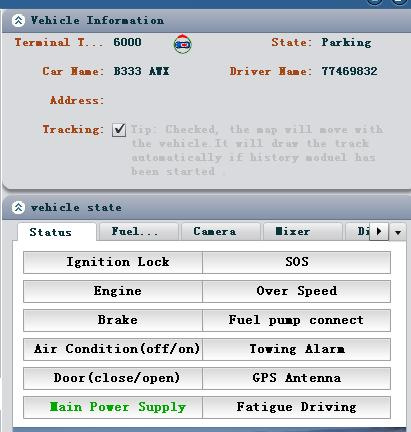

One the right side, you can check vehicle info and status:

State: 'Parking'  , Driver name : '77469832' , vehicle status: ACC OFF,   power supply : vehicle power supply

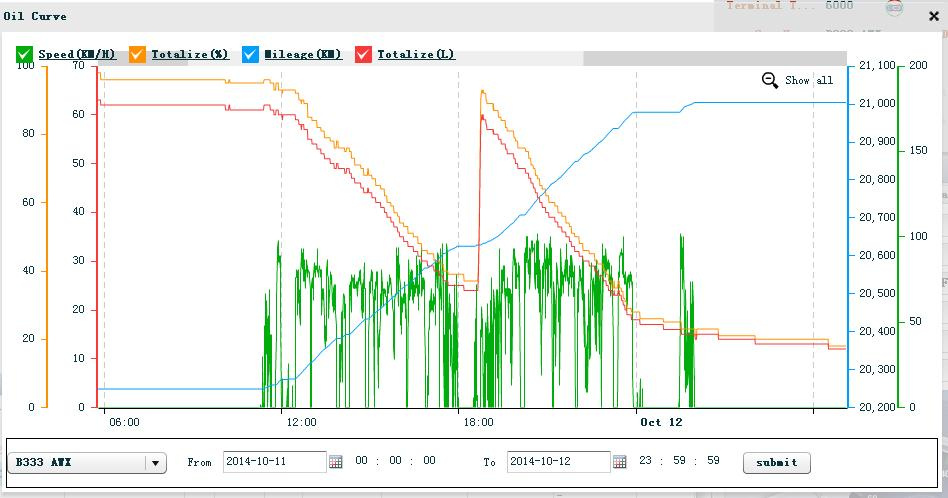

click 'oil curve', check the history fuel consumption of B333:

Green is speed, Red is fuel data, blue is mileage.

We can see around 12:00 ~ 24:00, truck is runing, fuel consumption is at one generally speed. at about 18:00, there's a refuel case about 40Liters




GPS tracker GP6000

Dimension (L x W x H)


121 mm*82 mm*29 mm
WeightMain unit : 8 50 g
(Including Standard Accessories)
Power Consumption80mA~140mA
Input Voltage10~30V
Backup Power 8.4V 400mAh-MH battery
GPSSIRF Star III
GSM850/900/1800/1900Mhz
Switch Signal Input8 (4 high lever trigger,2 low level trigger)
Switch Signal Output8  (<500mA)
Serial Port
Analog Port1  (0~5V)

Fuel level sensor JT606


fuel sensor Index



fuel sensor Parameter
Acquisition PrincipleCapacitive
Power Input4-70V
Power Consumption0.13W/5V,0.19W/12V,0.38W/24V
AccuracyResolution: <1mm, Accuracy: <0.5%
Communication InterfaceRS-232, RS-485, CAN (Customizable)
Baud Rate2400,4800,9600,57600,115200 (or customized by users)
Output Voltage : 0-5V, Current: 4-20mA
Measuring Range10CM-150CM
Protection GradeIP67
Housing MaterialAluminum alloy
Operating Temperature-40°C ~~+85°C
Storage Temperature-40°C ~~+105°C
Weight400g (500mm)
Size
