| Prod Model: |
GPS 105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Apllication: |
Vehicle Fleet/Logistics/Vehicle Rental(12-24V) |
| Camera: |
Yes |
| OEM Or Not: |
Yes |
| SD Card Slot: |
Yes |
| Certificate: |
CE/ FCC |
| Packaging: |
40 Unit /Carton Standard Color Box |
| Shipment: |
DHL/ FedEx or Your Own Forwarder |
| Delivery Time: |
3-5 Days After Payments Confirmed |
| GPS Accuracy: |
5m |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GSM/GPS/GPRS Network |
| Port Number: |
20 |
| Model: |
105 |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

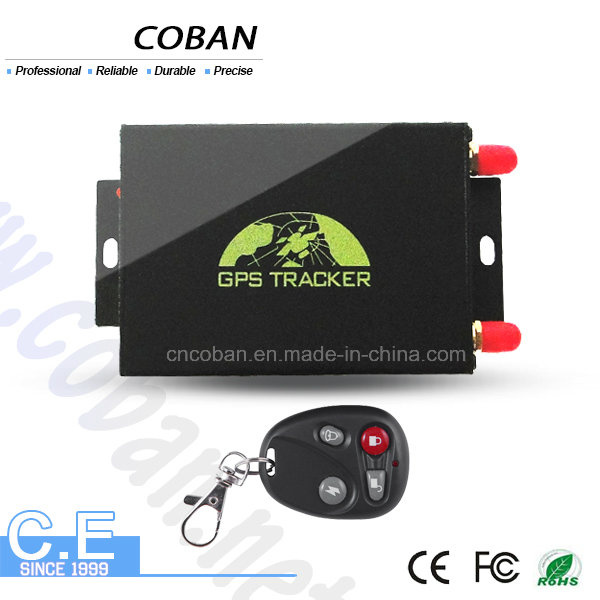

GPS Tracker with Speed Limiter, dual simcard slot and camera
1. General Description:
It is based on GSM/GPRS (850/900/1, 800/1, 900MHz) wireless telecommunication internet and GPS satellite global position system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms, photograph, fuel detection and tracking in its entirety.
Track by multiple tracking 4 ways:
1)SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2)Absolute street address by SMS
3)Free PC based tracking application
4)4. Optional web server
Basic functions:
* Location based service (LBS) if the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the location via GSM network.
* Get location in absolute street address
*Show location directly on mobile phone with HTTP Google map link
* Single tracking/ Auto track continuously
*Five authorized phone number to protect tracker information and assets
* View photos on cell phone
* Storage& Data Load (optional)
*Engine-cut and restore alarm by SMS/GPRS
* Fuel alarm (optional) to avoid oil theft
* Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*SOS button alarm
*Geo fencing alarm
*Over-speed alarm
*Movement alert
*Compatible with car original anti-theft system
* Alarms under Arm State: Door alarm, ACC alarm,
Shock Sensor alarm, Photograph alarm
Features
1)Camera function Option;
2)Support Fuel Sensor option to protect the fuel be stolen;
3) Support Temperature Sensor option that device will send alerts when
The temperature excess defined temperature scopes; ;
4)Support SD Card option for Location Memorization
5) Absolutely Street address locating;
6) Free PC software and with web-server option as well;
7) Support both GPS / GSM station positioning ways.
8) Support Anti-theft (Door/Trigger Emergency Alerts);
9) Support Remote Car Engine On / Off function;
10) Support power disconnect alerts/Low power alerts
11) Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions in CD enclosed).
12) Support GPRS on-line and GPRS re-connected automatically;
13) Compatible with the original vehicle anti-theft alarm;
14) Support SMS / GPRS dual-mode switching
15) Support configure by remote terminal.
16) Support for point-to-point, point to group, group-to-group monitoring.
17) Set multiple functions of security, positioning, monitoring (Voice) surveillance, photograph, emergency alarms and tracking in its entirety.
Optional vibration sensor
1). Camera for image capture
2). Fuel sensor
3). SD card function
4). Compatible with car original anti-theft system
5). Speed recording
6). Mileage report
70. Maintenance notification
2. Applications
Vehicle fleet/logistics/vehicle rental (12 to 24V)
3. Technology parameter:
Content Specifications
DIM 85*71*26mm
Weight 170g
Network GSM/GPRS
| Content | Specifications |
| DIM | 85*71*26mm |
| Weight | 170g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V -24V
|
| Backup Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Web platform / andriod and ios apps
