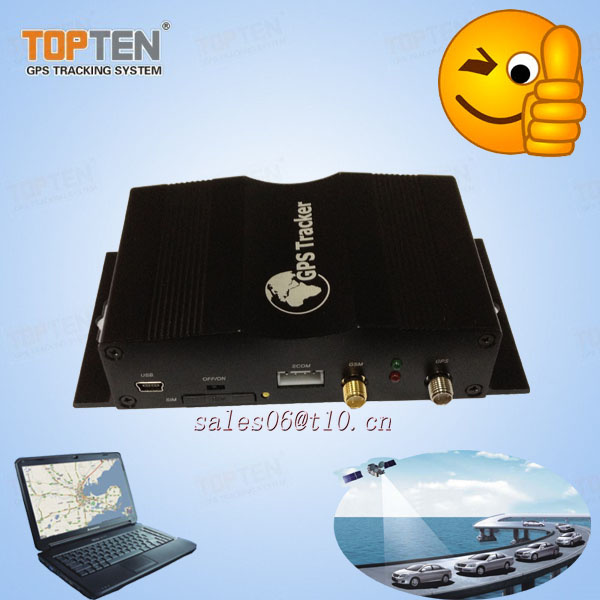

GPS Tracker with Speed Limiter (TK510-KW)

Prod Model:	TK510-KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply:	+9V - +45V / 1.5A
Backup Battery:	850mAh
Dimension:	110mm X 80mm X 30mm
Operating Temperature:	-20° to 75° C
Frequency:	GSM 900/1800/1900MHz or GSM 850/900/1800/1900MHz
GPS Chipset:	Ublox 7
GPS Sensitivity:	-162db
GPS Frequency:	L1, 1575.42 MHz
LED:	2 LED Lights to Show GPS/GSM Working Status. One
Button:	Sos
Type:	GPS Tracker
Use:	Automotive
Operating Principle:	Interferometric Type
Port Number:	Multiplex Multi-purpose Channel
Model:	Topten Gt08-Kw
Carrier Frequency:	900/1800/850/1900MHz
Chip:	U-Blox7 Chipset
Brand:	Topten Gt08-Kw

Product Description

 TK510 Main Features of  Fleet Management GPS Tracker TK510
 1. GPS tracker + RFID Car alarm with long-distance tag;
2. Active RFID Driver ID identification(optional)
3. Track on command or by time interval or by distance;
4. Arm/disarm by SMS, phone call;
5. Arm/disarm automatically by 2.4G RFID tag(optional);
6. Check the car's real physical address (such as city name, street name..);
7. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
8. Check the location directly by the Google map's URL;
9. Online website tracking by GPRS data network;
10. Odometer function
11. Over-speed alert, Geo-fence alert, movement alarm;
12. Snap photo and send out via MMS &Email when there is SOS alarm, ACC On alarm or door open alarm, snap the photo via platform;
13. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;
14. Crash alarm, when there is crash & it can detect it automatically;
15. Fatigue driving alarm, if continuous driving time is over the limitation, the siren will sound to warn the driver;
16. Check the coordinates via LBS, even there is no any GPS signal..
17. Support voice monitoring & 2-way talking;
18. Cut off engine to stop the car safely by SMS/GPRS;
19. Built-in shock sensor for power saving & triggering alarm
20. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alert immediately.
21. SOS alarm & anti-tamper alarm, once the wiring harness is disconnected, it will trigger this alarm;
22. Support analog input for fuel monitoring or temperature monitoring;
23. I/O: 5 digital inputs, 2 analog inputs & 5 digital outputs(2 impulse outputs);
24. Lock/unlock the car door remotely by SMS/platform;
25. Wide working voltage range, from 6V-45VDC, suitable for car or big truck.
26. There are 3 types of working mode for power saving flexibly.
27. 4Mb offline data logger, it can store 8192 waypoints
Quick Details

Type:	Gps Tracker	Use:	Automotive	Screen Size:	fleet management
Function:	fleet management	Place of Origin:	Guangdong China (Mainland)	Brand Name:	TOPTEN
Model Number:	TK510	Warranty:	12 Months	Size:	110mm x 80mm x 30mm
Weight:	175g	Mobile App:	Android / IOS	RFID:	2.4G RFID tag
Backup Battery:	800mAh	GPS Sensibility:	-162dBm	GPS Receiving Channel:	56 channels
GPS Chipset:	Ublox 7	Frequency:	GSM 850/1900Mhz or GSM 900//1800Mhz	Power Supply:	+9V - +35V / 1.5A

Specifications

Items	Specifications
Power Supply	+9V - +45V / 1.5A
Backup Battery	850mAh
Dimension	110mm x 80mm x 30mm
Installation Dimension	110mm x 80mm x 30mm
Weigh	175g
Operating temperature	-20° to 75° C
Humidity	5% to 95% Non-condensing
Frequency	GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Chipset	Ublox 7
GPS Sensitivity	-162Db
GPS Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz chip rate
RFID	2.4G tag
Position Accuracy	10 meters, 2D RMS
Velocity Accuracy	0.1 m/s
Time Accuracy	1 us synchronized to GPS time
Default datum	WGS-84
Reacquisition	0.1 sec., average
Hot start	1 sec., average
Warm start	38 sec., average
Cold start	42 sec., average
Altitude Limit	18,000 meters (60,000 feet) max
Velocity Limit	515 meters/second (1000 knots) max.
LED	2 LED lights to show GPS/GSM working status. One SOS button
Button	SOS
Interface	5 inputs,5 outputs, 4 A/D ports, MIC & Speaker port, camera port, RS232 port, SD card slot

Warranty,Payment,Package&Lead Time
Warranty: 1 year after sales, 3 year maintenous

lead time: order quantity <300 pcs, will arrange in 3 working days upon receipt of the payment
order quantities > 300 pcs, delivery time will be about 3 to 7 days upon receipt of the payment.

Packing: Standard packing: Neutral packing in English or customized packing

Payment:
 Payment terms: Bank Transfer, Western Union, Paypal

Standard Package of Advanced GPS Tracker Tk510



main unit	1pc
GSM antenna	1pc
GPS antenna	1pc
SOS button	1pc
wiring	1pc
Relay	1pc

Packaging

Selling Units:	Single item
Single package size:	28X15X5 cm
Single gross weight:	0.72 KG
Package Type:	Neutral packing or customized packing
