| Prod Model: |
TL700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
GPS |
| Port Number: |
No |
| Model: |
Tl700 |
| Screen Size: |
No Screen |
| Carrier Frequency: |
850/900/1800/1900mzh |
| Brand: |
Traclogis |
Product Description

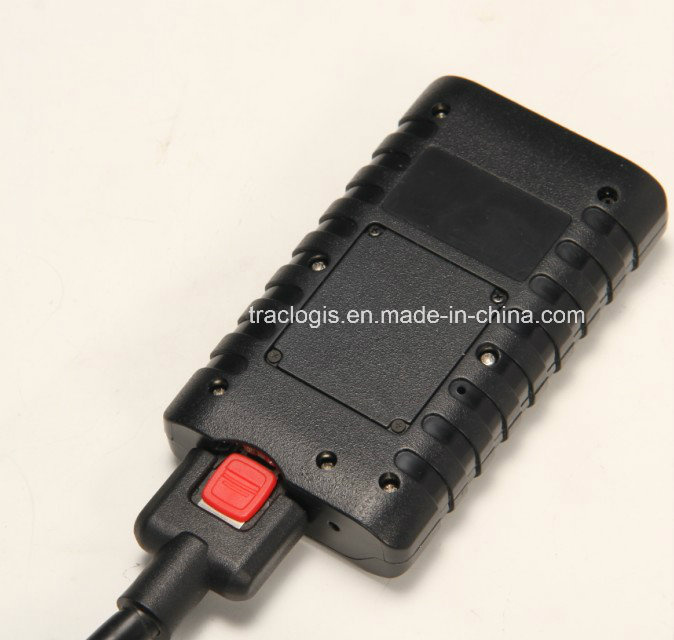

GPS Motorcycle Tracker TL700
Introduction:TL700 is a waterproof multifunctional and hybrid GPS/GPRS tracker for vehicle, motorcycle and personal. With mini size and built-in GPS&GSM antenna, it makes easy installation,it allows not just real-time tracking, which can also support fuel monitoring, two way communication, with 8M flash memory, it can also be used as a data logger the security features like :Anti-GSM jamming, Remove machine alarm......etc, which make TL700 as one of the best choice to secure your fleet and assets
- Vehicle Tracking
- Fleet Management
- Fleet Tracking
Features and strengths:
Product dimension: 88*52*20.5MM
Product weight: 100g
GPS Chipset: SkyTraq
GSM Chipset: Quad band (850/900/1800/1900MHz)
Built-in GPS & GSM antenna (external GPS antenna optional)

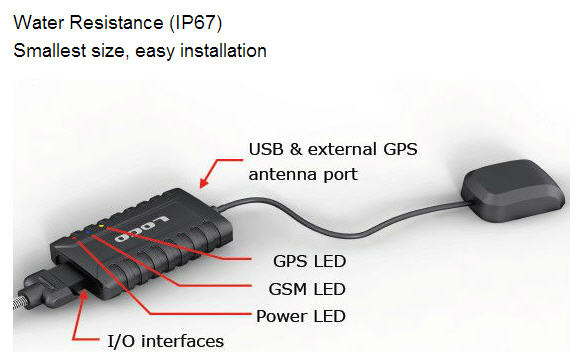

Water resistance (IP67)
SMS/GPRS tracking (support TCP & UDP)
Real time tracking
Track by interval/demand
Background voice surveillance
Two way communication
Power saving mode
SOS alarm
ACC detection
Oil detection
Remote fuel/engine cut off
Geo-fencing alarm
Over speed alarm
Motion sensor
Low power warning
Built- in backup battery
External power cut off alarm
Remove machine alarm
"No GPS" signal warning
Data logger (built-in flash memory)
Support FOTA
Specifications:
| Item | Specifications |
| Power Supply | DC 7-24V/3A |
| Backup Battery | Rechargeable 820 mAh battery (3.7V) |
Normal Power
Consumption | 50mA/h |
| Working Time | Normal vehicle & personal mode: 9.5 hours (GPRS interval: 40 seconds) Personal long standby mode: 13 hours (GPRS interval: 40 seconds) |
| Dimension | 88*50*20MM |
| Weight | 87g |
| GSM Module | Quad Band GSM 850/900/1800/1900Mhz |
| GPS Chipset | Newest GPS SKYTRAQ Chipset |
| GPS Sensitivity | -165 dB |
| Hot Start | 1 sec., average |
| Cold(warm) Start | 29 sec., average |
| LED | 3 LED lights to show power(red), GPS(yellow),
GSM(blue) |
| Button | SOS button for making phone SOS calls and sending SOS
SMS |
| Interface | 2 digital outputs;
3 digital inputs;
2 analog inputs. |
Product sample: Sample order is workable.
Custom service: Cusom functions, custom logo, custom packing, etc.
After-sales service: All device has one year warranty, all accessoried has three months warranty.
Tracking System:
1. Online tracking system: http://gps.traclogis.com/PcSignIn.htm
TL700 packaging:
Weight: 65G
Color: Black
35pcs/Carton . Carton Size: 57*29*21.5CM
Net/Gross Weight: 6KGS/7KGS/Carton

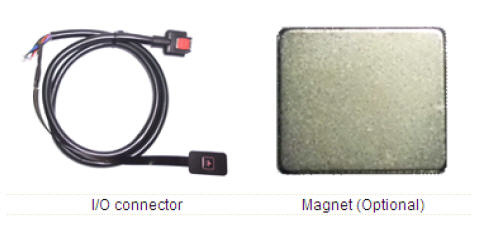

Optional Accessories:
DC charge cable
I/O connector
GPS external antenna
Magnet
Extra Glonass Model TL700 Supported.
