| Prod Model: |
GPS103-A |
| Weight: |
130g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| GPS Start Time: |
Cold Status 45s Warm Status 35s Hot Status 1s |
| Voltage Of Car Power System: |
12 V -24V |
| Backup Battery: |
Chargeable 3.7V 350mAh Polymer Li-Battery |
| Mobile APP: |
Tracker Home |
Product Description
GPS Tracking System Tk103A with engine cut off relay 10 years free tracking app tracker homeTK103- It is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.Main Function of GPS TK103A:
Automatic Tracking - GPS Tracking Device can be programmed to automatically send a location update in various time Intervals.Manual Locate - Allows you to manually request the current location of the GPS Device at any time.
Speeding Alert - Automatically marks the date, time, and location if the vehicle travels over the pre-set Speed Limit.
Internal Backup Battery-Power Interrupt Alarm - Automatically sends notification if the main power is cut or disconnected.
Store and Forward - When the GPS Device cannot lock onto a cellular signal, it will store update GPS information and forward the data when it reconnects.
Movement Alert/Geofence- Send all the authorized phone number TXT alerts when the vehicle moves out of the preset area(ie.200m radio).
Stop and resume the vehicle- If your car has any unexpected movement, you can stop the car remotely with your phone and resume it when threats is solved.
Fuel Monitoring- Support normal fuel sensor(drilling needed) and Ultra-sonic fuel sensor( no drilling), prevent any kind of fuel theft or abnormal fuel comsumption(fuel leak).
Voice monitoring- With standard microphone for the GPS tracker, you can voice monitor your vehicle whenever you want, keep your car safe.
LBS Tracking- When the device can not lock up to the GPS signal, for example, entered an underground parking lot, it can track with LBS(local based service) automatically and reconnect to GPS singal when it's found.
ACC working alert- Have a clue when your vehicle is on the move and take action to stop it if it's unexpected.
History route replay- The route where the vehicle has been can be recorded on the platform, it keeps about 1 month history with speed, alarms information.
Less GPRS traffic- Keep GPRS online, it might consume too much GPRS data, to prevent this, you can set the tracker in Less GPRS mode, GPRS drop off when vehicle park after 5 mins.
Sleep mode- put the tracker in sleep mode to save money and battery, wake up by shock, by time, by schedule
Door open alarm, shock alarm, external power off alarm etc.
Technology parameters:| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
GPS tracking platform: www.gpstrackerxy.com10 years free use on the web based platform and the mobile app IOS&Android version
Check demo on server 1
Account: demo Password:8888
Application:
Faults & the Solutions| Faults | Solution |
| Fail to turn it on | Please check if built-in battery is charged, and power wires
connected well. |
| No GSM signal | - Please check if SIM card installed correctly.
- Please check if SIM card is GSM network.
- Don't turn on the PIN code
- no calls can be diverted
- Please check if voltage of the power is normal
|
| No GPS | Please check if GPS antenna connected well, and recommend GPS antenna be installed near the window glass, no metal parts can cover it to make sure better GPS signal reception. |
| No reply to SMS command | Password wrong or the format is wrong. |
No reply to calling
| Authorized / admin phone number is incorrect |
| No alarm message | Authorized / admin phone number has not setup |
Our Services:
1. Free OEM ( MOQ:1000pcs)
2. Free Web tracking platform/Mobile App tracking(Android&ios) for one year
Please login the server 1 www.gpstrackerxy.com
account: demo password:8888
3. Can provide GPRS protocol if you have your own tracking platform
4. One year warranty for each device, bear maintenance cost during warranty
Contact: Grace Ma
Mobile:+86 15017920818

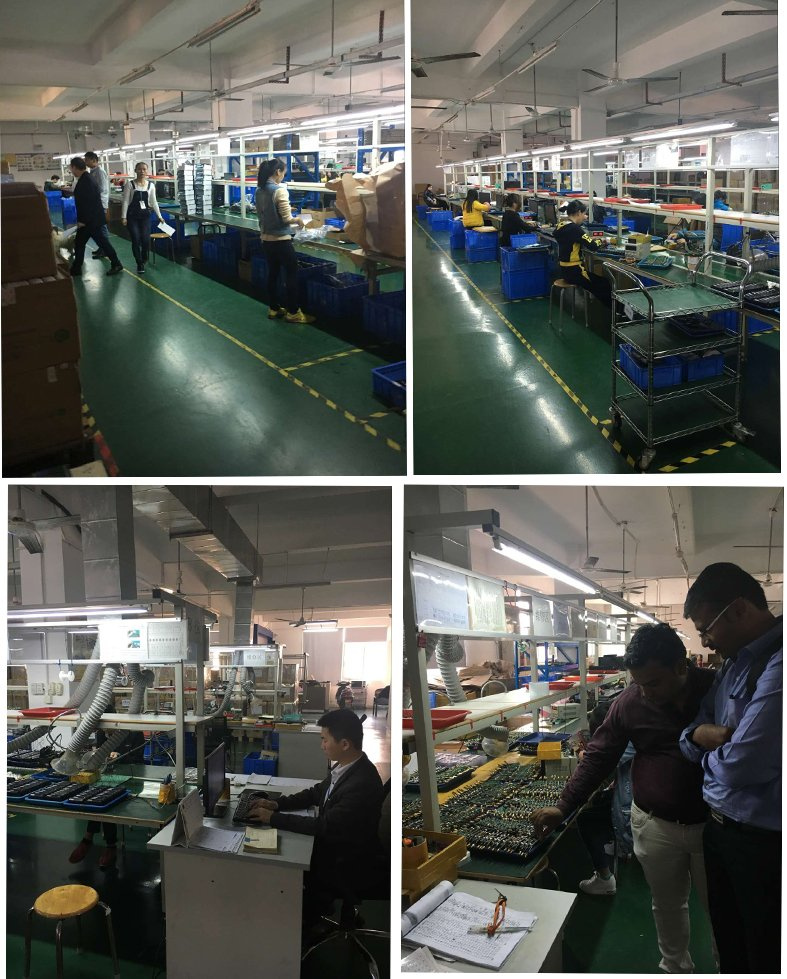

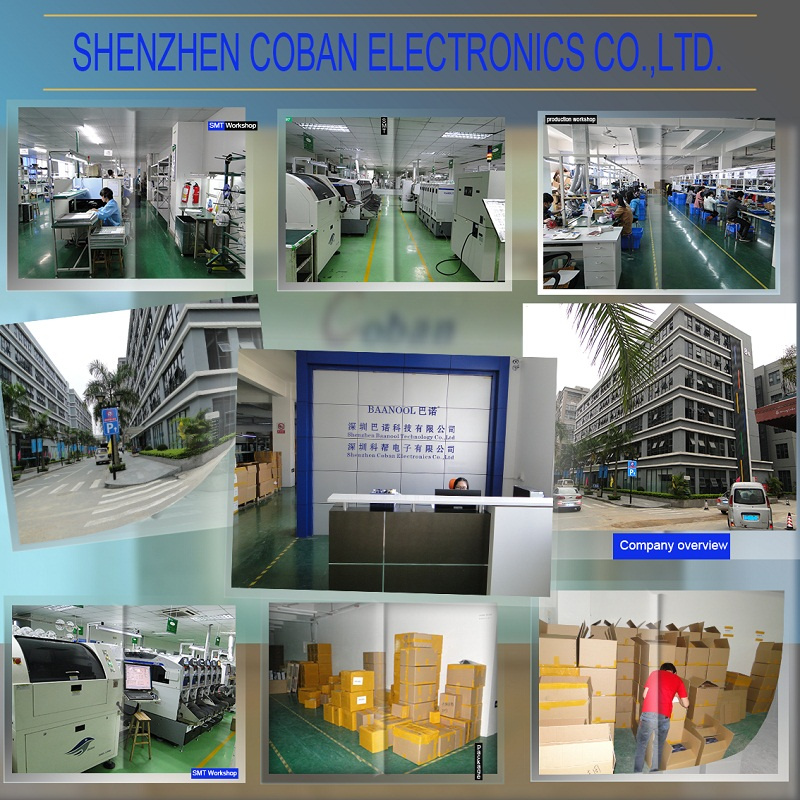

Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
