| Prod Model: |
GPS Vehicle Car Truck Tracker TK103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network: |
GSM/GPRS |
| Frequency: |
850/900/1800/1900MHz |
| Accuracy: |
5 Meter |
| Power: |
12-24V |
| Arm: |
Acc, Door and Optional Shock Sensor Alarm |
| GPS Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| GPRS Protocol: |
TCP UDP |
| Car Anti Theft: |
Engine Cut Remotely |
| GPS Sensitivity: |
-159dBm |
| GPRS Web Tracking: |
Www.Gpstrackerxy.COM with Google Maps |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No LCD |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
GPS Get Position, GSM Transmit |
| Model: |
GPS Car Tracker Tk103 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

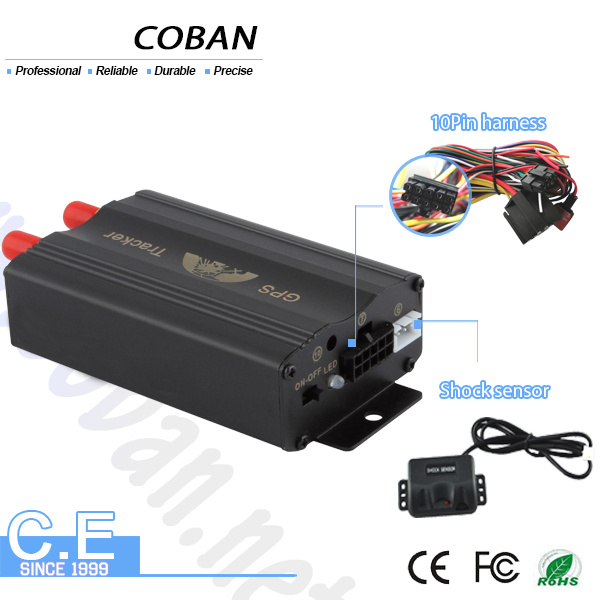

GPS Vehicle Car Truck Tracker with Android and Ios AppsGPS Tracker, which set multiple functions of accurately positioning, security, monitoring surveillance, emergency alarms and tracking in its entirety, special for vehicle.
The product fully supports the functions of SMS / GPRS / Internet data transmission, to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
Detailed descriptionIt is based on GSM/GPRS(850/900/1800/1900MHz)wireless telecommunication internet and GPS satillite global position system, track by multi tracking ways.
Basic functions:
1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS
(TCP/UDP)3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS15, Door alarm get by SMS
16, Movement alert sensor
17, Optional Android IOS app tracking18. With direction and heading value
19. Optional vibration sensor
20. Abosolute street function
21. Smart track upon time and distance interval
22. Automatic update positions of vehicle turns
23. GPS drift suppression
24. Data logging
25. Forward third parties message to authorized phone number
26. Charge inquiry
27. Multi area management
28. Accident alarm(Option)
29. ACC working alarm
30. Configure parameters by USB
31. Less GPRS traffic
Applying directions:Vehicle fleet/logistics/Vehicle rental (12-24V)
GPS Vehicle Car Truck Tracker TK103 specifications| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° Cto +85° C |
| Operation Temp. | -20° Cto +65° C |
| Humidity | 5%--95% non-condensing |

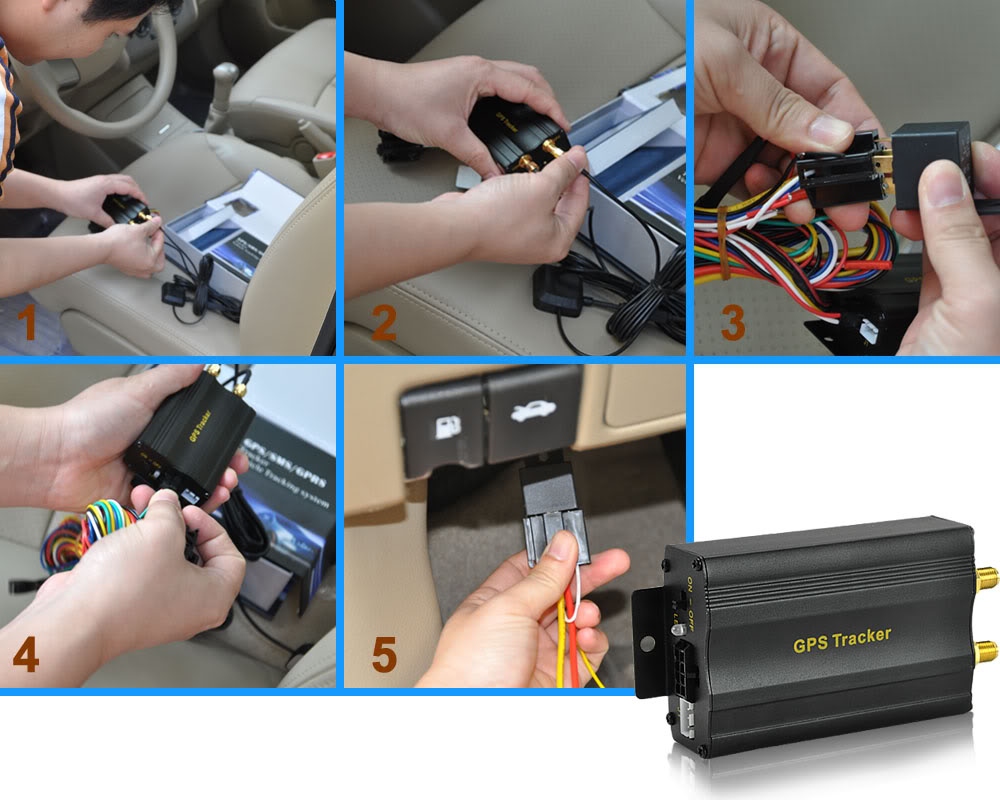

vehicle gps tracker 103 installation

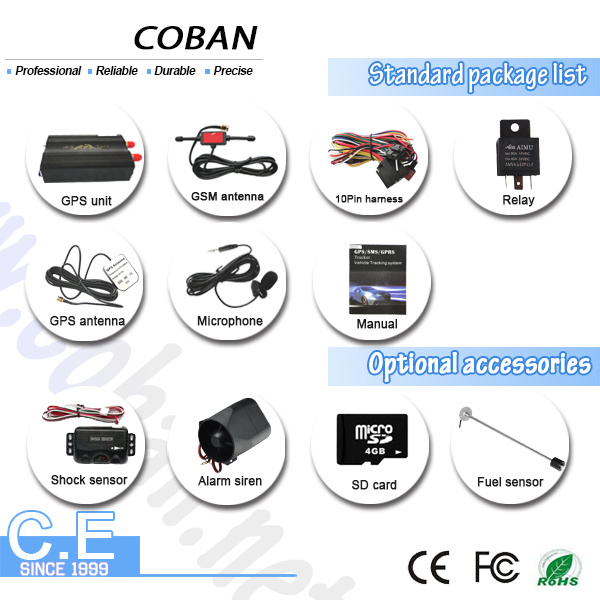

what comes with the packege box Model:GPS103-AGPS Unit10 PIN harnessRelay for stopping engineExternal GSM antennaExternal GPS antennaExternal microphoneManualpackage Optional accessoriesShock sensoralarm sirenMicrosd memory card
