| Prod Model: |
TK310-J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Inbuilt Backup Battery: |
850mAh |
| GPS Sensitivity: |
-158dB |
| Channels: |
20 Channels |
| Operating Tempreature: |
-20~55 |
| Normal Power Consumption: |
850mA/H |
| Size Of Main Unit: |
104*62*24mm |
| I/O: |
5 Inputs, 5 Outputs, 2 Analog Inputs |
| MOQ: |
1PCS |
| Delivery Time: |
1-2 Days Upon Receipt of Payment |
| Weight: |
190g |
Product Description

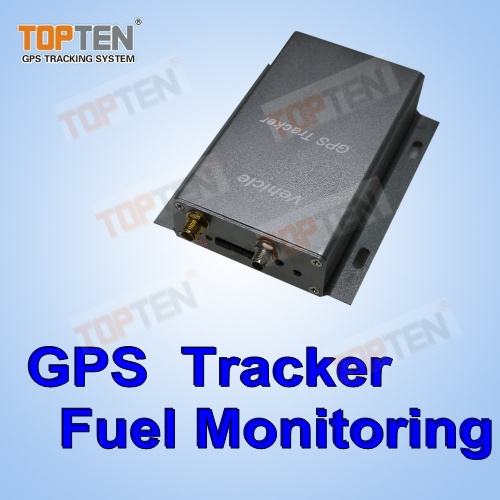

RFID GPS Vehicle Tracker TK310 is a GPS/GPRS based tracking device specially developed and designed for vehicle real-time tracking and fleet management.
RFID Functions: Can manage many cars which are operated by many drivers. When driver put the ID tag nearby the reader, the reader will recognize this ID and upload this tag ID to the center by GPRS.
Fuel monitoring and Temprature monitoring ( can show fuel level consumption, can get up/down fuel alarm )
Check the real physical address free of charge; ( user can send 111111ADD to system, will get reply sms with real address e. G.: City name, street name...)
Industrial design with voltage/current overload self-protection. Can work in hard conditions for car/truck, working voltage: 10VDC -36VDC;
Inbuilt 4Mb data logger; ( this is very useful for online fleet management, tracker will store datas when no GPRS connection and upload to server after recovers
I/O: 5 digital inputs, 2 analog inputs, and 5 outputs
GPS Car Tracker, Vehicle Tracker TK310 has below functions:
1. Tracking via SMS or GPRS (TCP/UDP)
2. Current location report
3. Tracking by time interval or by distance
4. Data logger function with 4Mb memoray.
5. Built-in motion sensor for power saving
6. SOS panic button
7. Geo-fencing control, Over-Speed alert
8. Internal backup battery, Low battery alert
9. Industrial design with voltage/current overload self-protection.
10. Engine cut-off to stop the car
11. Monitoring or 2-way talking (optional)
12. Alert when TK310 enters/exits GPS blind area
13. Reminder SMS when the TK310 is turned on
14. I/O: 5 digital inputs, 2 analog inputs, and 5 outputs.
15: Locate by SMS with Google map's link
16. Odometer function
17. Inbuilt shock sensor for power saving;
18. Industrial design to work in hard conditions for car/truck, working voltage: 10VDC -36VDC;
GPS Car Tracker, Vehicle Tracker TK310 Standard package include:
Main unit 1pc
GSM antenna 1pc
GPS antenna 1pc
SOS button 1pc
Wiring 1pc
Optional parts to have more functions
Fuel Level Sensor to monitor fuel consumption
Temperature sensor to monitor temperature level
RFID reader & RFID tag to recognize driver ID
Crash sensor to detect accidence
Microphone to listen to voice
