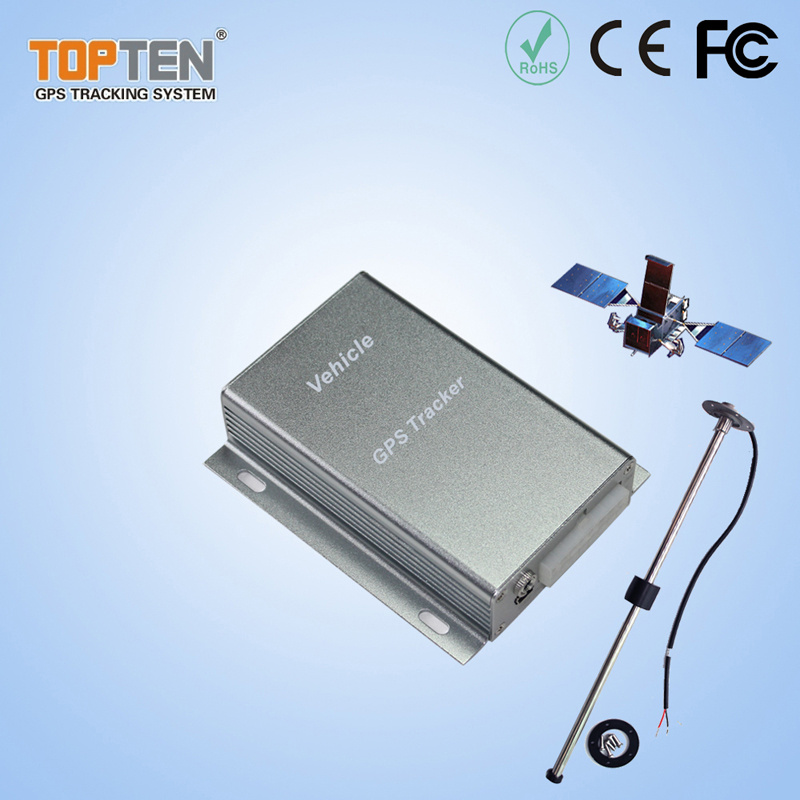

GPS Vehicle Tracker, Fuel Monitoring Tracking Systems (TK310-J)

Prod Model:	TK310
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver
Function:	Vehicle Tracking and Fleet Management
Protocol:	TCP/UDP
Working Frequency:	850/900/1800/1900MHz
Operating Tempreature:	-20-55
Normal Power Consumption:	85mA/H
GPS Sensitivity:	-158dB
I/O:	5 Inputs and 5 Outputs
Channels:	20 Channel
Packing Box:	White Box or Colorful Box

Product Description

Applications: Applies to locating and tracking service for cars, taxi, bus, trucks, container trucks, other special vehicles)

Features:

1)Tracking via SMS or GPRS ( TCP/UDP )
2) Get Vehicle latitude and longitude by sms, check real-address by Google Earth.
3) Get Google Map's link by SMS, check real address by opening Google map's link on smart phone
4) Get physical real address directly on our online platform freely
5) Send the last location if the vehicle enters into the blind area
6) Send a Geo-fence alert to the user when the vehicle breaches the restricted area
7) Send a movement alert to user when the vehicles moves 30meters away
8) Send an over-speed alert to the user when vehicles moves exceed of the restricted speed
9) Send a low-battery alert to the user when the battery is low
11) Send an alert of theft to the user automatically if the power be cut off or the vehicle be started up illegally.
12) Send sms to the tracker to cut off the vehicle engine and circuit when someone start up the vehicle illegally in anywhere and anytime
13) Send sos alarm to preset alarm-received phone number for help in case of hijack
14) Industrial design with voltage/current overload self-protection
15) Remote monitoring and SOS function and two-way communication
16) Built-in motion sensor to save power and GPRS flow
17) Send odometer report by sms with coordinate
18) I/O: 5 digital input, 2 analog input and 5 output to monitor fuel level and temperature lelvel
19) Voice monitoring ( optional, needs to connect microphone )
20) Data logger with 4MB memory to store offline datas, and send to platform server when GPRS recovers
21) RFID Functions: Can manage many cars which are operated by many drivers. When driver put the ID tag nearby the reader, the reader will recognize this ID and upload this tag ID to the center by GPRS.
22) Fuel monitoring and Temprature monitoring ( can show fuel level consumption, can get up/down fuel alarm )
23) Industrial design with voltage/current overload self-protection. Can work in hard conditions for car/truck, working voltage: 10VDC -36VDC;
