GPS Vehicle Tracker Real Time Tracking Device

Prod Model:	GPT09
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Gpt09
Color:	Black
Weight:	180g
GSM Frequency:	850/900/1800/1900MHz
Working Voltage:	3.7VDC
GPS Positioning Accuracy:	5-15meters
Lbs Positioning Accuracy:	About 200m
A-GPS:	Support
Battery Capacity:	14500mAh
Map:	Google

Product Description

Shenzhen Eelink Communication Co. Ltd is a 10-year manufacturer of GPS Tracker,GPS tracking solutions. We are a manufacturer and exporter of GPS trackers, GPS OBD II tracking devices, vehicle tracking devices and personal tracking devices. We also offer mature GPS tracking solutions and comprehensive OEM and ODM services.

Vehicle GPS Tracker GPT09 needs one piece SIM card to transmit data to the server via GSM / GPRS network. It is positioned by GPS, LBS, support A-GPS. It is widely applied to monitor, control, position various types of vehicles-car,bus,taxi,truck, fleet.
GPS tracking device is working with GSM/GPRS network and GPS positioning system.

I. Product Features

Supports quad bands, i.e.
850/900/1800/1900MHz, universal in the world.
Built-in 14500mAh Super high-capacity zero
self-discharge lithium thionyl chloride batteries, can
stand up to three years( Power on once per day)
Strong magnetic force,can be installed on iron
absorption
Military grade three anti-performance,
waterproof to IP67
GPS / LBS dual positioning, support A-GPS
Customize 6/12/24/48-hour work intervals in
long standby mode
Switch to emergency mode to restore the
real-time tracking mode
WEB platform, mobile APP, SMS remote setting
mode, tracking devices
Support EELINK protocol, can be used in
customer platform
OTA upgrade firmware.

II Specification

Voltage                                   3.7 VDC
Work Current                        <30 mA
Standby Current                   <15 uA
GPS Accuracy                        5-15m
GSM Accuracy                        About 100m
GPS Frequency                     1575MHz
GSM Frequency                     850/900/1800/1900MHz
Hot/warm/cold Start              <3s,<15s,<60s
Battery Capacity                    14500 mAh
Dimensions (mm)                 86(L) × 52(W) × 46.4(H)
Work Temperature                 -20ºC~70ºC
Work Humidity                        20%~80%RH
Net Weight                              180g
IPR                                             IP67


S positioning accuracy	5-15m (Depend GPS signal)
GSM positioning accuracy	100-1000 m (Depending on density of base stations)
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold start time	<3s,<15s,<60s
Battery capacity	14500mAh
Dimensions (mm)	86(L) × 52(W) × 46.4(H)
Operating temperature	-20ºC~70ºC
Operating humidity	20%~80%RH
Weight	180g

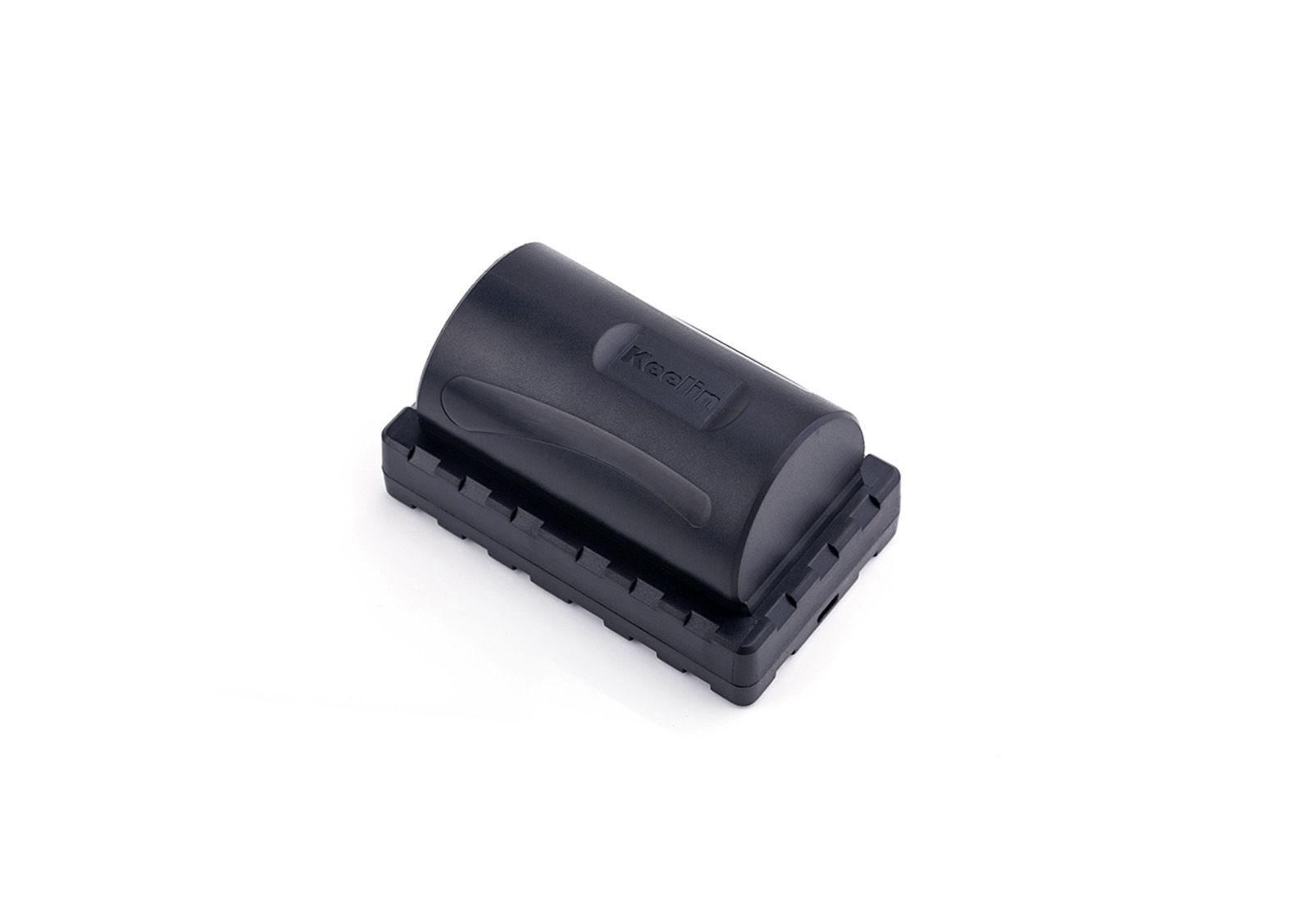

Long standby GPS Tracker picture
