| Prod Model: |
TK108-ER49 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Dimension: |
62*50*22mm |
| Weight Fo The Main Unit: |
0.3kg |
| Working Temperature: |
-20 to 75 Centigrade |
| Humidity: |
0 to 95% |
| GSM Frequencies: |
Quad-Band: 850/1900/900/1800MHz |
| GPS Chip: |
U-Blox Chipset |
| Receiving Ways: |
20 Channels |
| Working Frequencies: |
1575.42MHz C/a (GPS) |
| Receiving Sensibility: |
-160dBm |
Product Description
$50 2013 New GPS Tracking Device For Motorcycle/vehicle/truck TK108-DD
This Mini GPS Vehicle Tracker is the most cost-effective tracking device to track your vehicle. It has very small size, so it can be installed in very secret place. The installation & usage is very easy.
GPS Tracker Features:
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name...(need support of the TS01 or TS03 center);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in motion sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; When the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Support SOS button(optional)
15. Support analog input for fuel monitoring
16. I/O: 3 inputs and 1output
17. It can upgrade the normal car alarm with remote alarm function.
18. Compact size with water-proof design
19. Wide working voltage range, from 5V-36VDC, suitable for motorcycle, car or big truck.
20.8MB offline data logger, it can store 8192 waypoints

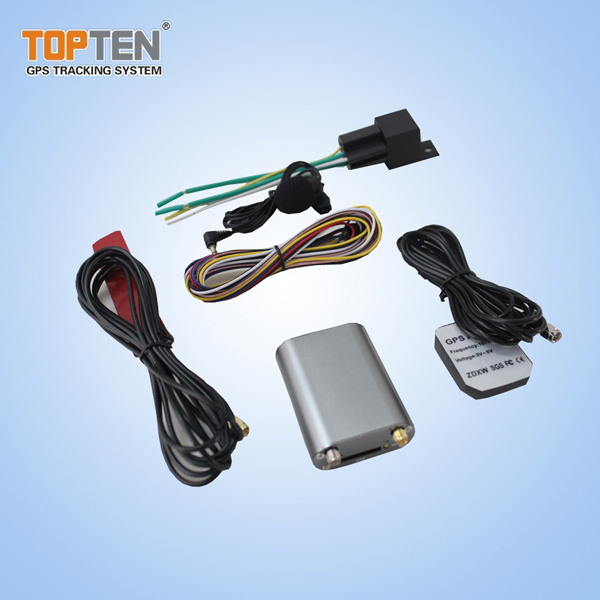

Standard packing on Car GPS Tracker
Main unit 1PC
6pin wiring 1PC
12VRelay 1PC
Micphone 1PC
Manual 1PC
GSM antenna 1PC
GPS antenna 1PC
Free Online Tracking Functions:
You can track the car's location online, We offer free online tracking service, you can have a private account with your own login user name and password to monitor vehicle location any time any where
(1) Real-time live tracking the car's position, speed, odometer, fuel level on map, Monitor engine status on or off
(2) Carry out operations such as: Stop and restor car, set geo-fence, set GPRS interval, set sleep mode, set time zone ect
(3)Check all kinds of report: Alarm report, history report, speed report, fuel report, milage report ect
(4) Routine manage for user to preset the fixed route that the vehicle always follow, once the driver is not taking this route, it will send alarm to Center.
(5) Check location by Base sation code if no GPS signal, Under "system", put the MCC, MNC of your country.
(6) History route playback, to check where the vehicle passed in the past one year
(7) Send email to warn user case of alarm. User can define to send which alarm, and send to which emails
(8) Supports address translation by MAPINFO map, the address shown online will be more detailed and more clear than Google map
(9) Detect fuel level, tempreature level, if there is up/down change, you will get email alarm and hear sound alarm online
(10) Strong user management, there are 4-level of accounts: Super adminstratorcompany account group account individual account,
The higher level account can create account for lower level account, can monitor all car information, can can define the allowed add-in number of vehicles in each account, can define the expired time of the account
| GSM module | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chipset | U-blox chipset (or MTK3339) |
| GPS sensitivity | -160dB |
| Working voltage | +6.0 ~+36VDC |
| Channels | 20 channel all-in-view tracking |
| GPS frequency | L1, 1575.42MHz |
| GPS Position Accuracy | 10 meters, 2D 3D |
| GSM Position Accuracy | Later will realize |
| Size of the main unit | 62*50*22 (mm) |
| Weight of the main unit | 0.3kg |
| Hot start | 1sec., average |
| Warm start | 2sec., average |
| Cold start | 40 sec., average |
| Speed accuracy | ≤0.2M/S (wide-open area)
|
