| Prod Model: |
GPT12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Gpt12 |
| Color: |
Black |
| Weight: |
65g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Dimension(mm): |
96(L)X50(W)X11.2(H) |
| Battery Capacity: |
5000mAh |
| Antenna Type: |
Built in Type |
| GPS Accuracy: |
5-15m |
Product Description

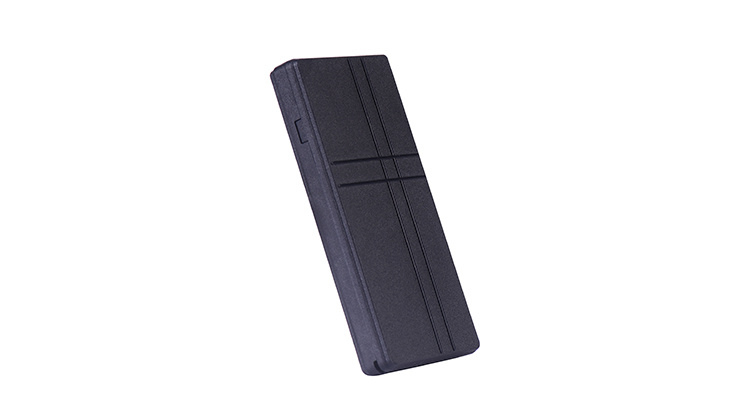

Gps tracker for car GPT12 is based on the GSM/GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance and tracking in its entirety.It can track and monitor remote target by SMS, web, Android/iOS APP when device is working.
Specifications
*Realtime vehicle tracking system
*Fleet Management Solution
*Multiple kinds of Alarm
*OTA software update
Applications
Car rental solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
PRODUCT FEATURES:Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
GPS/LBS double-Positioning mode, support A-GPS
5000mAh Battery , standby for 3 years.
Long Standby mode, wake up for 5 mins a day, then sleep.
Turn to Emergency mode for real time tracking after wake up.
GEO-Fence Alarm, Low battery Alarm.
Track and config device by PC & APP online & SMS query
Switch to emergency mode to restore the real-time tracking mode
Support EELINK protocol and can be integrated to platform of customers
OTA upgrade firmware.
PLATFORM/APP:Tracking ( Emergency Mode )
Route Play Back ( Emergency Mode )
Remote Setting
Geo-fence Alarm
Low Battery Alarm
Installationuse strong double-sided adhesive sponge to fix,or use cable ties and other liable method to fix.
Platform
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements.
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Three
Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
Case Four
Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
PRODUCT PARAMETER:| Voltage | 3.7 VDC |
| Work Current | <30 mA |
| Standby Current | <15 uA |
| GPS Accuracy | 5-15m |
| GSM Accuracy | About 200m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold Start | <3s,<15s,<60s |
| Battery Capacity | 5000 mAh |
| Dimensions (mm) | 96(L) × 50(W) × 11.2(H) |
| Work Temperature | -20ºC~70ºC |
| Work Humidity | 20%~80%RH |
| Net Weight | 65g |
