| Prod Model: |
TK310-ER50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
+9V - +36V / 1.5A |
| Humidity: |
0 to 95% |
| Color: |
Silver |
| Working Temperature: |
-20 to 70 Centigrade |
| Inside Backup Battery: |
Rechargeable 3.7V 850mAh Li-ion Battery |
| Size Of The Main Unit: |
104mm X 62mm X 24mm |
| Weight Of The Main Unit: |
0.19kg |
| GPS Chip: |
Latest Sirf-Star III Chipset |
| Get Location: |
Via SMS |
| GSM Frequencies: |
Quad-Band: 850/900/1800/1900MHz |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description
GPS Vehicle Tracker with Fleet Management (TK310-D8)
TK310 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, TK310 has good sensitivity and stable performance. It can get accurate GPS fix even in remote places.
*1. Main Features of GPS Vehicle Tracker TK310
Tracking via SMS or GPRS (TCP/UDP)
Current location report
Tracking by time interval
Position logging capacity up to 260, 000+ waypoints
Built-in motion sensor for power saving
SOS panic button
Geo-fencing control
Low battery alert
Speeding alert
Engine Cut
Wiretapping (optional)
Alert when TK310 enters/exits GPS blind area
Alert when TK310 is turned on
I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs.
Analog Input: 2 10 bits resolution analog inputs
*2. Read these first when you use GPS Vehicle Tracker TK310
For your safety please read these simple guidelines. Not following them may be dangerous or illegal. Read the full user manual for more information.
Proper Connection - When connecting with other device, read carefully its manual so as to carry out correct installation. Do not connect it to other incompatible devices.
Qualified Accessories - Use original parts, qualified batteries and peripheral equipments to avoid damage to TK310.
Safe Driving - Drivers should not operate this product while driving.
Qualified Service - Only qualified personnel can install or repair TK310.
Water Resistance - TK310 is not water resistant. Keep it dry. Install it inside the vehicle or use waterproof bag if necessary.
Confidential Phone Number - For safety reason, do not tell other people the mobile phone number of your TK310 without taking precautions of security settings.
Hardware Features of GPS Vehicle Tracker TK310

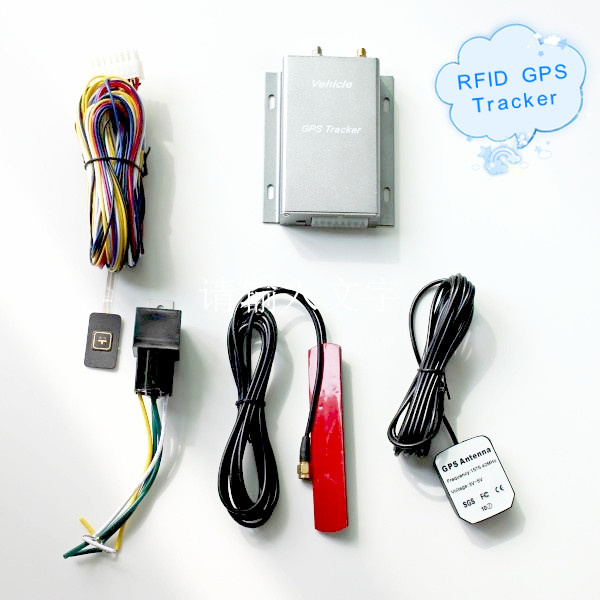

TK310 includes:
TK310 Main Unit
GPS Antenna
GSM Antenna
Wires
USB Cable with converter
CD including
- User Manual
- Other document or software if required
Light and Button Functionality Of GPS Vehicle Tracker TK310
Blue LED - indicating GPS status
On One or more inputs are active
Flashing (every 0.1 second) The unit is being Initialized
Flashing (on for 0.1 second and off for 2.9 seconds) TK310 has a GPS fix
Flashing (on for 1 second and off for 2 seconds) TK310 has no GPS fix
Green LED - indicating GSM status
On Flashing (every 0.1 second) The unit is being Initialized
Flashing (on for 0.1 second and off for 2.9 seconds) TK310 is connected to the GSM network
Flashing (on for 1 second and off for 2 seconds)
TK310 is not connected to the GSM network.
Guangzhou Topten Electronics Factory is a leading and professional enterprise which specializes in GSM car alarm system, GPS tracking system and other security products in China.
Topten Electronics Technology Limited is the subsidiary company of Guangzhou Topten Electronics Factory.
Our key products are GPS/GSM car alarm system, GPS/GPRS vehicle tracking system, GSM car alarm system.Parts of our products have gained the CE and FCC approval.It is warmly welcomed by customers from more than 95 countries in Africa, Middle East, Europe and Southeast Asia.
We have much experience in security field, especially in car alarm and GPS vehicle tracking, which makes us experts in providing reliable and cost-effective solutions for monitoring and protecting vehicles.We have strong force in continuous research and development, which enables us to be the leading manufacturer in GPS tracking system and GSM car alarm.
We adopt an advanced management system to ensure a qualified working team and the promptness to act to the market.Strict quality control is executed in each link of the whole production process.Every step from materials to semi-finished items to completed products is operated according to the requirements of ISO9001:2000 quality management system.
With the best service, high quality products, competitive price and attractive functions, we are sure that you will be satisfied with our cooperation.We sincerely hope to establish the friendly and mutual-beneficial partnership with you in the coming future.
