| Prod Model: |
TK310 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
104mm X 62mm X 24mm |
| Weight: |
190g |
| C/a Code: |
1.023 MHz Chip Rate |
| GPS Frequency: |
L1, 1575.42 MHz |
| Backup Battery: |
850mAh |
| GPS Module: |
Latest GPS Sirf-Star III Chipset |
| Operating Temperature: |
-20 to 55 Centigrade |
| Frequency: |
Quad Band GSM 850/900/1800/1900MHz |
| Power Supply: |
+9V - +36V / 1.5A |
| GPS Sensitivity: |
-158dBm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description
GPS Vehicle Tracker with Online tracking, Fuel Level Temperature Sensor, RFID(TK310-DD2)
Our Topten is Professional Manufactory for Gps Tracker, Gps Vehicle Tracker, Gps Tracking, Gps Car Tracker, Car Tracker, Vehicle Tracker, Gps Car Track, Gps Car Alarm, Gps Vehicle Tracking, Gps Tracking System, Vehicle Tracking, Gps Tracking Systems, Gps Device, Tracking Device, Gsm Car Gps Tracker, Car Gps Tracking System, Gsm Car Gps Tracking
1>. Product Overview
TK310 is a GPS/GPRS based tracking device specially developed and designed for vehicle real-time tracking and fleet management.
TK310 has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base for tracking and fleet management.
With internal memory, TK310 can store GPS coordinates when there is no GPRS connection or at a specified interval requested by the user. Vehicle for listening to the cabin.
2>. TK310 GPS Tracker Selling Points:
1) With RFID function to manage your cars
2) Tracking real physical address by SMS need to connect our system TS03
3) Fuel level and Temperature Sensor
4) Data logger function in none GSM coverage area. Position logging capacity up to 260, 000 points.
5) Geo-fence, Over-speed, enter/exit GPS blind area, low battery alert
6) Monitoring the voice( optional)
7) Buit-in motion sensor for power saving
3>. Functions and features:
1. SMS and GPRS TCP/UDP Communication
2. Track on Demand
3. Show Location Directly on Mobile Phone
4. Track by Time Interval
5. Listen (Voice Wiretapping) (Optional)
6. GSM Blind Area Memory
7. Logging Capacity up to 180, 000 Waypoints
8. Inbuilt Motion Sensor for Power Saving
9. SOS Panic Button
10. Movement Alarm
11. Geo-fencing Control
12. Low Battery Alarm
13. Speeding Alarm
14. GPS Blind Area Alarm (in/out)
15. Power-cut Alarm
16. Engine Cut (Stop Engine)
17. I/O: 5 digital inputs, 3 negative and 2 positive triggering; 5 outputs
18. Analog Input: 2 analog inputs of 10 bits resolution for connecting fuel level sensor or other sensors.
4>. Specification
Power Supply +9V - +36V / 1.5A
Backup Battery 850mAh
Normal power consumption 85mA/h
Dimension 104mm x 62mm x 24mm
Installation Dimension 104mm x 83mm x 24mm
Weight 190g
Operating temperature -20° To 55° C
Humidity 5% to 95% Non-condensing
Frequency Quad Band GSM 850/900/1800/1900Mhz
GPS Module latest GPS SIRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 meters, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start 1 sec., average
Warm start 38 sec., average
Cold start 42 sec., average
Altitude Limit 18, 000 meters (60, 000 feet) max.
Velocity Limit 515 meters/second (1000 knots) max.
LED 2 LED lights to show GPS/GSM status.
Flash Memory 4MB
Button One SOS Button
Interface 5 digital inputs (3 negative and 2 positive triggering); 2 analog inputs; 5 outputs.

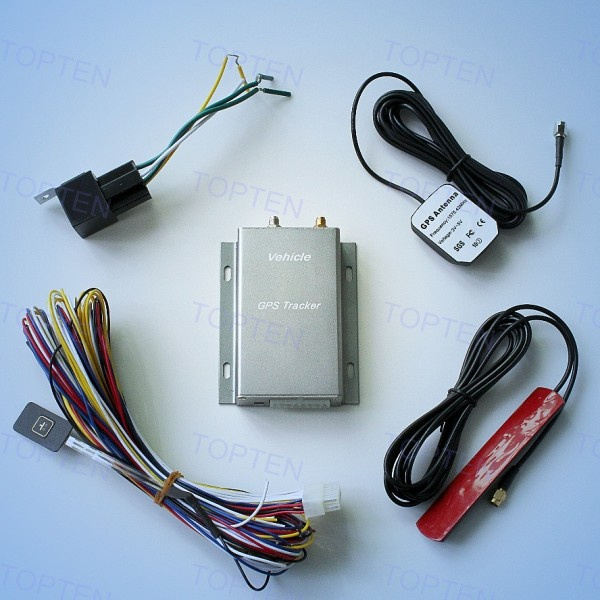

5>. Standard Packing List:
Main unit 1pcs
GSM antenna 1pcs
GPS antenna 1pcs
SOS button 1pcs
Wiring 1pcs
Relay 1pcs
6>. Optional Accessories:
Fuel Level Sensor (depent on length)
Temperature sensor
RFID reader+RFID tag
Crash sensor
Welcome to place sample order for test first
| Power Supply | +9V - +36V / 1.5A |
| Backup Battery | 850mAh |
| Normal power consumption | 85mA/h |
| Dimension | 104mmx 62mm x 24mm |
| Installation Dimension | 104mmx 83mm x 24mm |
| Weight | 190g |
| Operating temperature | -20 ~ 55° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | Quad Band GSM 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | synchronous GPS time |
| Altitude Limit | 18, 000 meters (60, 000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max |
| Flash Memory | 4MB |
| Button | 1 SOS Button |
| Interface | 5 digital inputs (3 negative and 2 positive triggering); 2 analog inputs; 5 outputs |
| Standart list | Quantity |
| main unit | 1pcs |
| GSM antennna | 1pcs |
| GPS antenna | 1pcs |
| sos button | 1pcs |
| wiring | 1pcs |
| relay | 1pcs |
