| Prod Model: |
Tk119-3G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optional Accessory: |
Relay |
| Model Number: |
Tk119-3G |
| Color: |
Black |
| Weight: |
45g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Battery Capacity: |
70mAh |
| GPS Positioning Accuracy: |
5-15m (Depend GPS Signal) |
| Lbs Positioning Accuracy: |
About 200meters |
| GPS Tracker Type: |
Wired Type |
Product Description
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/App/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Product Feature*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used
*Support WCDMA frequency W850/W1900/W2100MHz, universal
*Wide Input Voltage: 9-36V DC.
*GPS/LBS + WCDMA/GSM Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone APP platform and SMS query.
*Supports multiple alarm, acceleration sensor for vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Extend I/O port to add extension function
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
*OEM and ODM orders are welcome
*Waterproof IP67.
Alarm Type
Vibration Alarm
Collision / falling / Vibration Alarm
Geo-fence Alarm
Disconnect power/low battery alarm
Specification
| Base Specification |
| Voltage: | 12VDC/24VDC/36 VDC |
| Standby Current: | <10mA@12V |
| Work current: | <30mA@12V |
| GPS positioning accuracy: | 15m |
| GSM positioning accuracy: | about 200m |
| GPS Frequency: | 1575MHz |
GSM Frequency:
WCDMA frequency: | 850/900/1800/1900MHz
W850/W1900/W2100MHz |
| Hot/warm/cold start time: | <3s,<15s,<60s |
| Dimensions (mm): | 87(L)X41.6(W)X 12(H)mm |
| Operating temperature: | -20ºC~70ºC |
| Operating humidity: | 20%~80%RH |
| Net Weight: | 45 g |

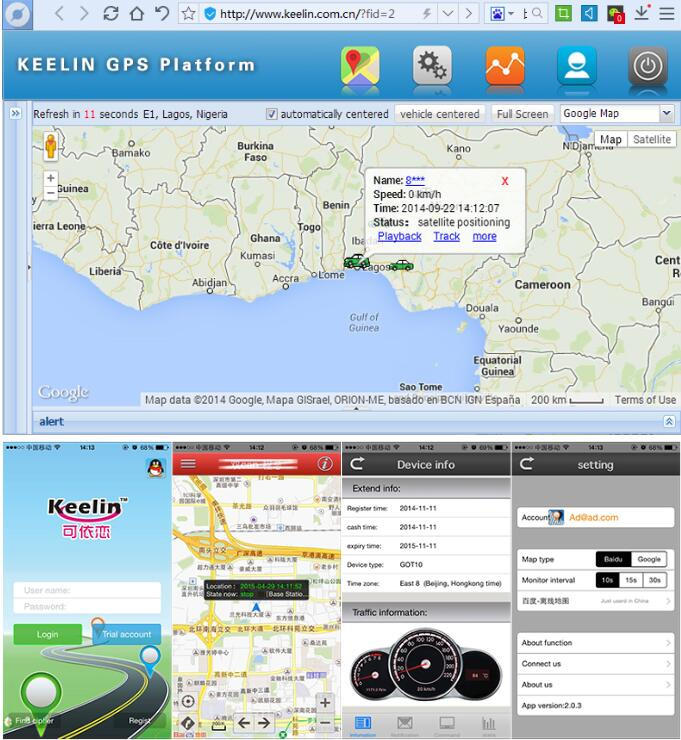

PlatfromYou can choose Keelin terminal monitoring platform. It is designed by EELINK, we can position, real time tracking and playback on the platform server via website and mobile APP.
Delivery1.Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2.For order over 500pcs or customized order, please contact our sales to make sure the current inventory.
Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty1.All products have been strictly Quality Checked in house before packing.
2.All products have been well packed before shipping.
3.One year warranty is provided for all models. We will bear maintenance cost during warranty.
OEM&ODM Service

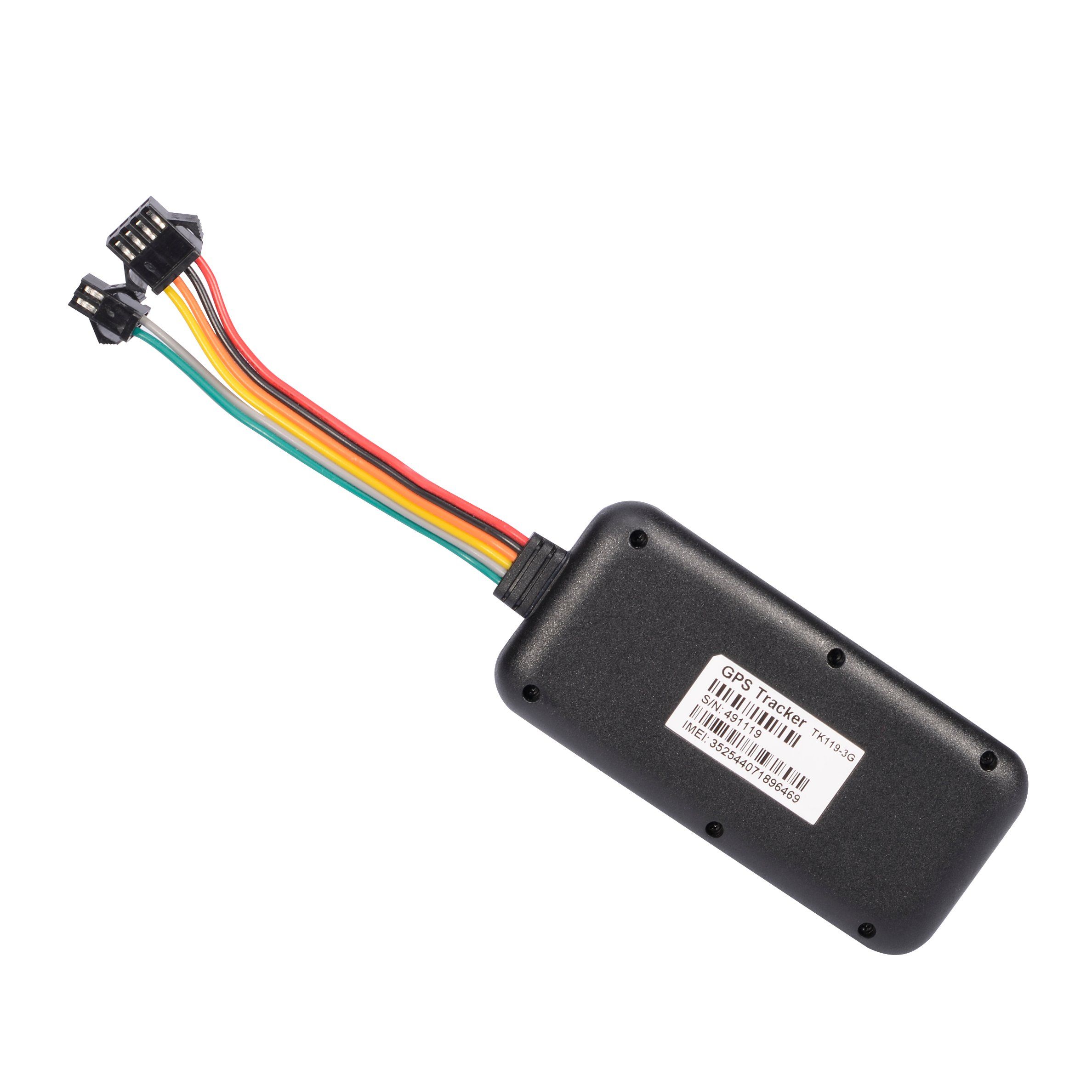

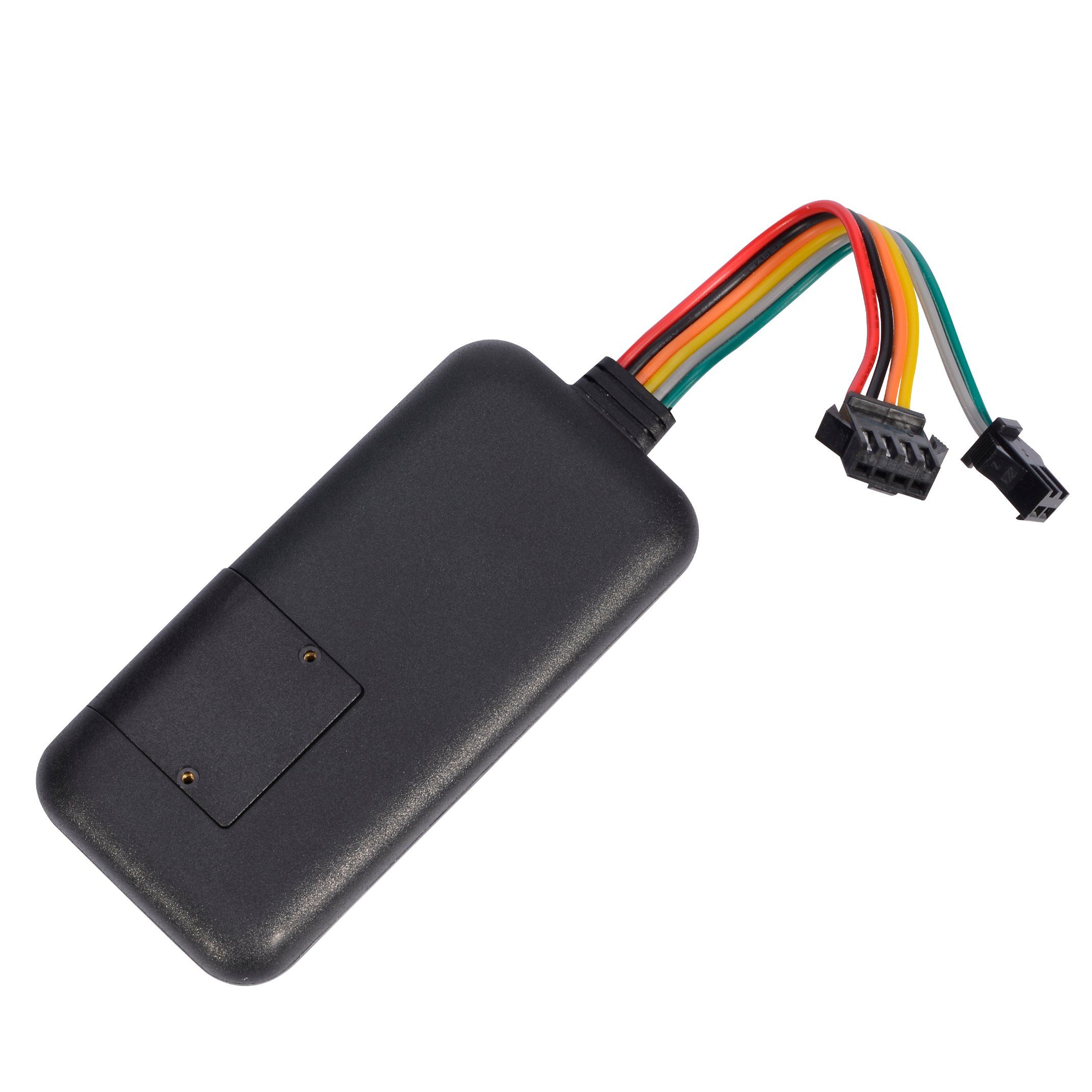

1.Customize logo and brand print on the device.2.Customize the tracker for special functions.3.Offer software customization service,such as communication protocol.Car GPS Tracker picture
Optional accessories: Relay
