| Prod Model: |
Gps-104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Name: |
GPS104b, Tk104b |
| GPS: |
Accuracy |
| GSM Network: |
850/900/1800/1900MHz |
| Network: |
GSM/GPRS |
| Dimension: |
94mm*60mm*38mm, 300g in Weight |
| Battery: |
3.7V 6000mA/H Polymer Battery |
| Main Features: |
Waterproof, Magnetic, Long Standby, Cut Engine |
| Tracking By: |
SMS, Phone, APP, Web Platform |
| Microphone: |
Built in Microphone for Voice Monitor |
| Antenna: |
Built in GSM GPS Antenna |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
Vehicle Tracking |
| Port Number: |
20 |
| Model: |
GPS Tracker Tk104b |
| Screen Size: |
No Screen |
| Chip: |
CB900 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

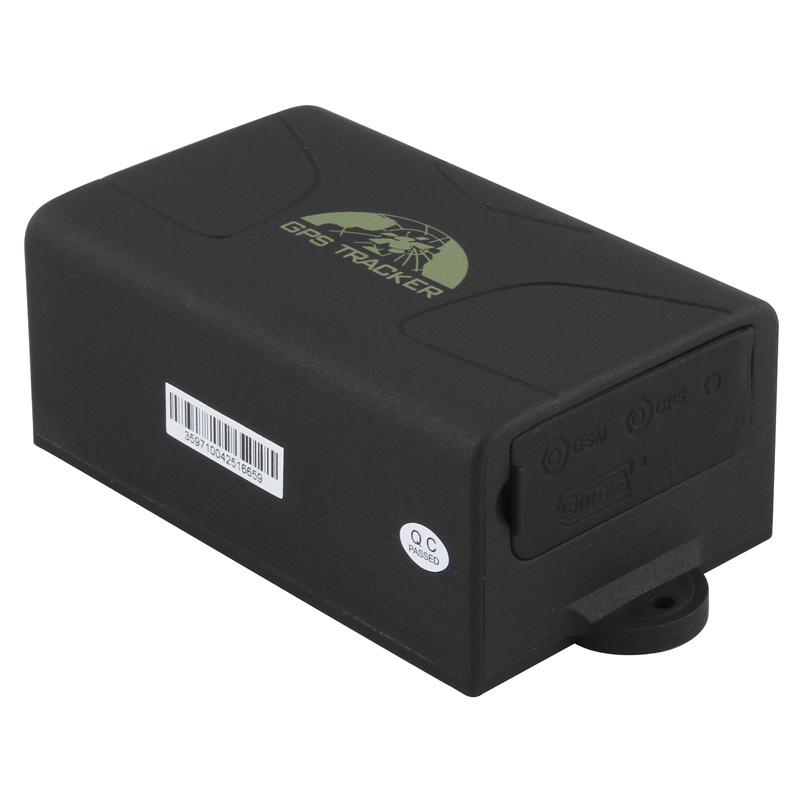

Online tracking TK104B Vehicle Cargo Container Gps Trackers Built-in antenna , Easy Install , Magnetic Shell
Functions:
1.Waterproof ; Power magnets ;
2.built-in GSM/GPS antenna.
3.6000mah battery ,standby 80 days.
4.Geo-fence ,movement alarm ,overspeed alarm ,low battery alarm .
5.remotely stop and resume engine .
6. show current location on google maps .
7. get absolute address with street name .
8. Internal 1MB memory , support external 8GB sd card memory .
9. free pc software and web platform .
New functions:
1.Internal 1MB memory,can store 16,000 position info.
2.Support external 8GB SDcard .
3.GPS drift suppression to track more accurately
4.checking Sim card balance .
5.Forward/Transmit the third parties'message
6.Set Multi-area management
7.Accident alarm (Option)
| Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 1.8mA |
| Deep sleep | 0.6mA |
| GSM operating Current | 68mA±3mA |
| GPRS Current(data transfer) | 82mA±10mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep | 4 months |
| Deep sleep | 12 months |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
5 tracking solutions :
- SMS tracking by calling , return google map link
- Absolute street address by sms
- Free software
- Optional web server
- free mobile app
Tracking Platform :
Applying directions:
Vehicle fleet/logistics/Vehicle rental
Technology parameter:
*Dimension: 94mm*60mm*38mm, 300g in weight
*Network:GSM/GPRS
*GSM Network frenquecy: 850/900/1800/1900Mhz
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s
*Battery:3.7V 6000mA/h Polymer battery
Standard Package Content:
1 X GPS tracker
1 X GPS antenna
1 X GSM antenna
1 X AC Adapter
1 X Lighter adapter
1 X Harness
1 X Manual
1 X waterproof bag.
Dimension: 94*60*38mm
Weight: 300g
Box: 13cm*19cm*5.7cm
Paking weight: 0.9005KG
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
