| Prod Model: |
GPWH201, GPWH301, EPWH201, EPWH301 |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Manufacturers: |
Haiyan Jinhan Electronic Technology Co.,Ltd |
| Type: |
Watt/Active Transducer |
| MOQ: |
1piece |
| Production Process: |
Integration |
| Shell Material: |
Beige Plastic-Shell |
| Dimension: |
119*149.5*73 |
| G.W: |
About 1kg |
| Freight: |
by Air |
| Delivery Time: |
2 Weeks |
| Installation: |
35mm DIN Sliding-Way |

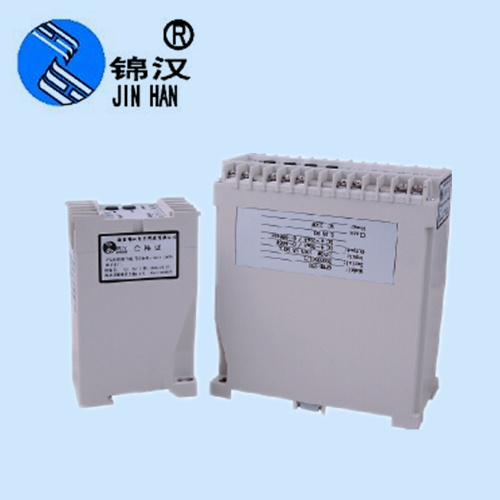

Product Description
GPWH201 GPWH301 Var / Varhour Transducer1. Summarize:Electric quantity transducer is a measuring instrument that it makes measurand electric quantity (AC Current/Voltage Active Power Reactive Power Active Energy Reactive Energy Power Line Frequency.Phase Angle Power Factor DC Current/Voltage) turn into DC current or voltage output that accroding to proportional linearity . It widely applied to electric measurement autocontrol and system altitude that in electric power Coal metallurgy railway and so on.The GPWH are electronic transducers converting active power and energy in single or three phase balanced or unbalanced systems to simultaneously produce an analogue DC output for instantaneous power signal and a digital pulse output for cumulative energy signal.Applied Standards & Rules
Measuring and conversion IEC 688 / 1992 - 04
Dielectrical strength IEC 688 2KVac / 1 min.
Surge and Impulse test ANSI C37.90 / 1989
IEC 255-3 (1989) 4KV 1.2 x 50 us2.Models| GPWH101 | - 1 phase watt & watt-hour transducer |
| GPWH200 | - 3 phase 3 wire balanced load watt-hour transducer |
| GPWH300 | - 3 phase 4 wire balanced load watt-hour transducer |
| GPWH201 | - 3 phase 3 wire unbalanced load watt-hour transducer |
| GPWH301 | - 3 phase 4 wire unbalanced load watt-hour transducer |
Models that can be replaced with each other:EPWH101 - 1 phase watt & watt-hour transducer
EPWH200 - 3 phase 3 wire balanced load watt-hour transducer
EPWH300 - 3 phase 4 wire balanced load watt-hour transducer
EPWH201 - 3 phase 3 wire unbalanced load watt-hour transducer

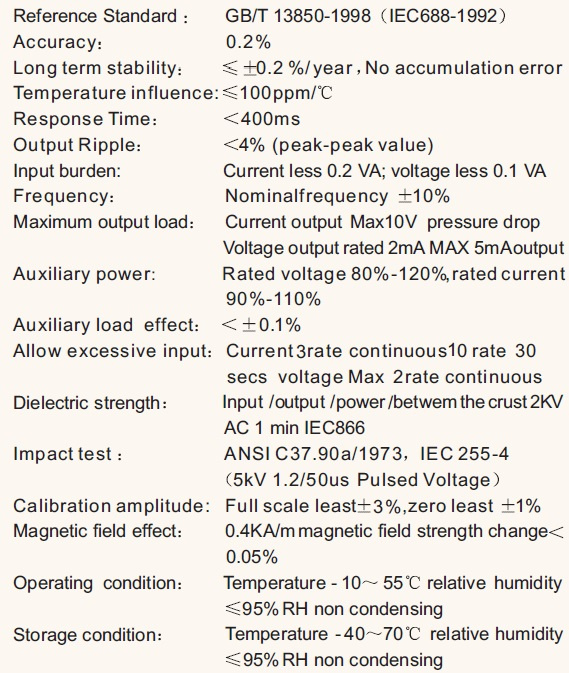

EPWH301 - 3 phase 4 wire unbalanced load watt-hour transducer3.Technical Specifications

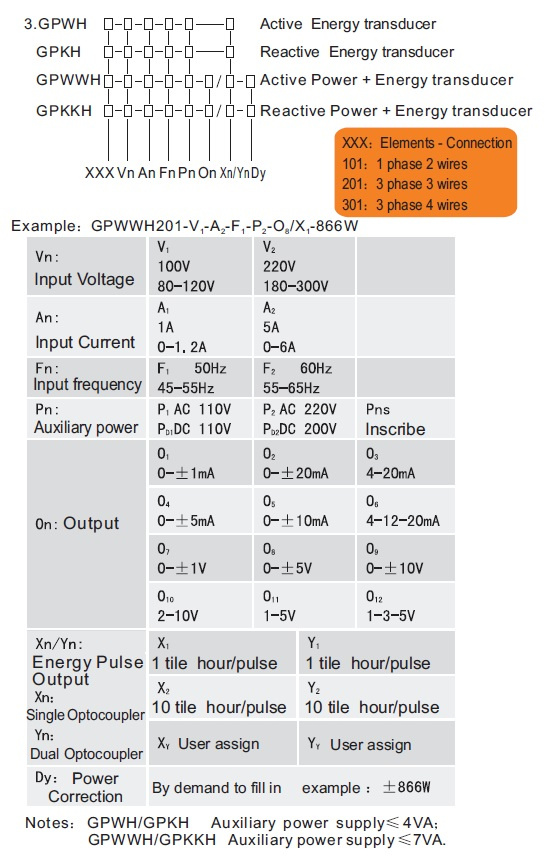

3.Models&Specifications

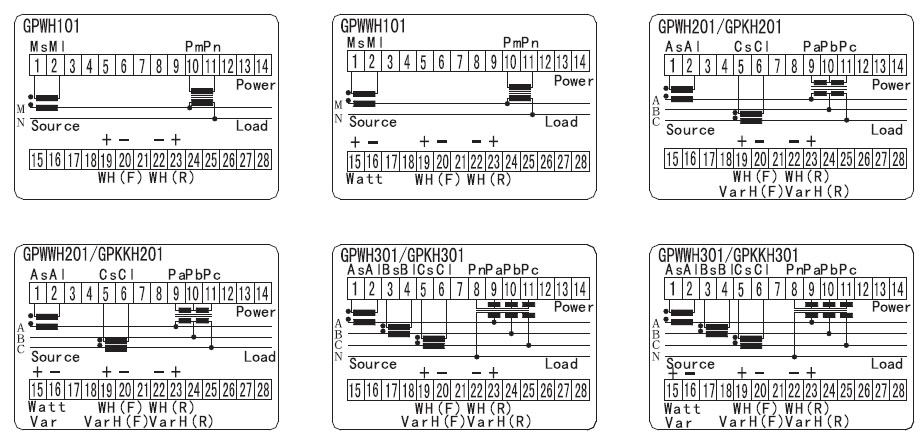

4.Terminal Connection

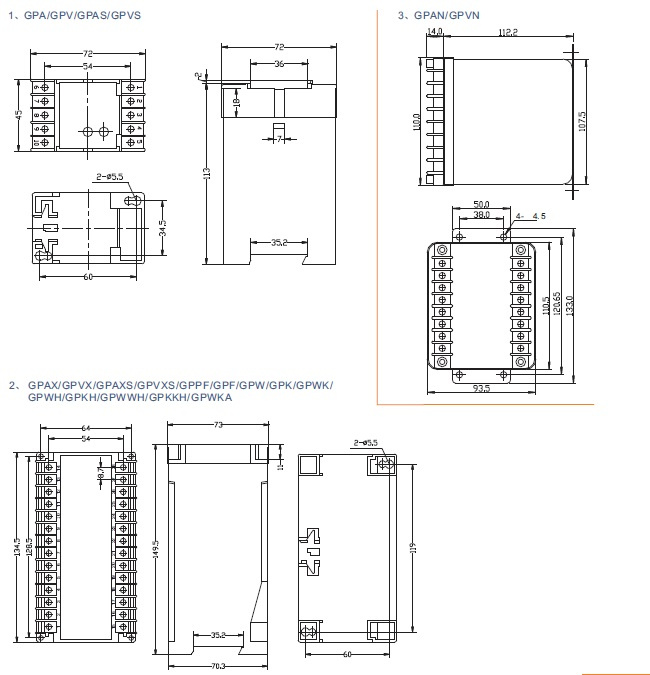

5.Dimensional Drawings
The model of this series is shown in the following table :
| Product | Model No. | Swap model |
| AC current transducer(1 unit of avg. to rms conversion) | GPA | EPA |
| AC current transducer(1 unit of avg. to rms conversion) | GPV | EPV |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPA2 | EPA2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPV2 | EPV2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPAX2 | EPAX2 |
| AC current transducer( 2 wires / 4~20mA ( 8~36V DC powered) | GPVX2 | EPVX2 |
| AC current transducer(1 unit of avg. to rms self-powered) | GPAS | EPAS |
| AC current transducer(1 unit of avg. to rms self-powered) | GPVS | EPVS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPAXS | EPAXS |
| AC current transducer(3 unit of avg. to rms self-powered) | GPVXS | EPVXS |
| AC current transducer(TRMS conversion ) | GPAR | EPAR |
| AC current transducer(TRMS conversion ) | GPVR | EPVR |
| AC current transducer(2 output) | GPAT | EPAT |
| AC current transducer(2 output) | GPVT | EPVT |
| AC current transducer(3 unit of avg. to rms conversion) | GPAX | EPAX |
| AC current transducer(3 unit of avg. to rms conversion) | GPVX | EPVX |
| 3 phase 3 wire reactive power transducer | GPK201 | EPK201 |
| 3 phase 3 wire reactive power transducer(2 output) | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power&reactive power transducer | GPWK201 | EPWK201 |
| 3 phase 3 wire Active power transducer | GPKT201 | EPKT201 |
| 3 phase 3 wire Active power transducer(2 output) | GPWT201 | EPWT201 |
| 3 phase 3 wire wate&var¤t transducer | GPWKA201 | EPWKA201 |
| 3 phase 4 wire reactive power transducer | GPK301 | EPK301 |
| 3 phase 4 wire reactive power transducer(2 output) | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power&reactive power transducer | GPWK301 | EPWK301 |
| 3 phase 4 wire Active power transducer | GPKT301 | EPKT301 |
| 3 phase 4 wire Active power transducer(2 output) | GPWT301 | EPWT301 |
| 3 phase 4 wire wate&var¤t transducer | GPWKA301 | EPWKA301 |
| 3 phase 3 wire Active energy transmitter | GPWH201 | EPWH201 |
| 3 phase 3 wire Reactive energy transmitter | GPKH201 | EPKH201 |
| 3 phase 3 wire Active power+energy transducer | GPWWH201 | EPWWH201 |
| 3 phase 3 wire Reactive power+energy transducer | GPKKH201 | EPKKH201 |
| 3 phase 4 wire Active energy transduce | GPWH301 | EPWH301 |
| 3 phase 4 wire Reactive energy transduce | GPKH301 | EPKH301 |
| 3 phase 4 wire Active power+energy transducer | GPWWH301 | EPWWH301 |
| 3 phase 4 wire Reactive power+energy transducer | GPKKH301 | EPKKH301 |
| Frequency transducer | GPF | EPF |
| Power factor transducers | GPPF | EPPF |
| Dc isolation transmitter | GPD | EPD |
| Dual output dc isolation transmitter | GPDT | EPDT |
| Power controller | GPS | EPS |
