Product Description
Brief introduction

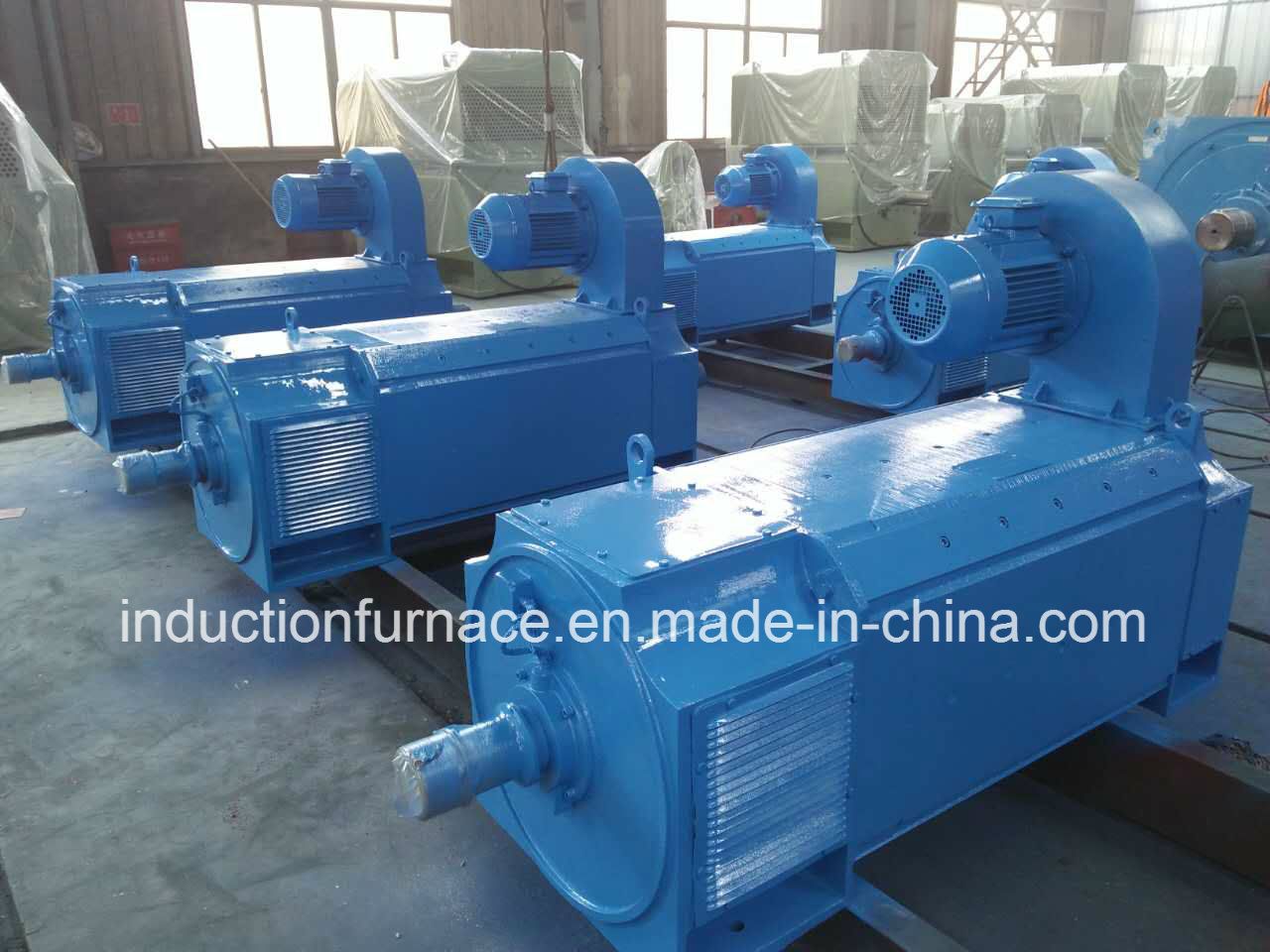

ZFQZ Series DC motors are developed on the basis of Z4 Series and ZZJ-800 Series DC motors. The rotating inertia of the motors is 45% and 65% of the motors of Series ZZJ-800 and ZZJ-900 respectively. The motors are suitable for direct and reversal rotation and start and stop in high frequency in a bad working circumstance. The motors are good-overloading.
Performance
Requirements for Use
1. The allowable ambient temperature for the operation of the motors is -30C~+40C and the allowable sea level is not higher than 1000m.
2. The supplying electric source of the motors adopts rectified electric source or DC generator electric source. When adopting 3-phase, fully controllable bridge rectified electric source, the motors can work for a long period without outer smoothing reactor.
Products Specification
1. There are 2 kinds of rated voltage of motors: 220V, 440V. As required, the motors with other voltage level can be produced.
2. The mode of excitation of motors is separate excitation. The voltage of excitation is 180V or 310V. As required, the motors with other voltage level can be produced.
3. The motors running at basic speed can reach max. rotating moment regulated in the Technical Data Table. It will last 60s.
4. For the motors of rated voltage 220V, the rotating speed can reach as 2 times as the rated rotating speed through increasing the applied voltage. At this time, the allowable max. rotating moment is as 1.8 times as the rated rotating moment. It will last 15s.
5. For the motors of rated voltage 220V, the max. rotating moment is as 0.6 times as the rated rotating moment when the motors are running with low-intensity magnetic rotation regulated in the Technical Data Table. It will last 15s.
6. The electric current changing rate of the motors can reach as 200-250 times as the rated electric current changing rate. It can be discussed if >250 is required.
7. The standard position of wire outlet box of the motors is on the right of the machine baseplate seen from the drive end. If required, it can be mounted on the left of the machine baseplate. If so, this requirement should be stated in the order.
Parameters
| Working System | Overload increasing |
| S2-30min | 107% |
| S2-60min | 100% |
| S3-40% | 120% |
| S3-60% | 110% |
| Radial Ride Type Air Blower Cooling | Protection Level | Cooling Mode |
| IP21S | IC06 |
| Single-duct Ventilation | IP23S | IC17 |
| Double-duct Ventilation | IP44 | IC37 |
| With Air/Water Cooler | IP44 | ICW86 |
| Frame | Ventilation Quantity | Static Pressure | Motor Power | Weight |
| m3/hr | Pa | Kw | kg |
| ZFQZ-250 | 3000 | 1400 | 3 | 70 |
| ZFQZ-280 | 4000 | 1600 | 4 | 80 |
| ZFQZ-315 | 4860 | 1600 | 5.5 | 90 |
| ZFQZ-355 | 5200 | 1600 | 5.5 | 120 |
| ZFQZ-400 | 7200 | 1800 | 5.5 | 180 |
| ZFQZ-450 | 9000 | 1800 | 7.5 | 250 |
| Cooler Type | Air Blower Motor (Kw) | Cooling Water Discharge(m3/h) | Weight(kg) |
| KSL-250 | 4.0 | 11 | 400 |
| KSL-280 | 5.5 | 12 | 500 |
| KSL-315 | 5.5 | 13 | 600 |
| KSL-355 | 7.5 | 15 | 750 |
| KSL-400 | 7.5 | 18 | 850 |
| KSL-450 | 11 | 19.5 | 950 |
