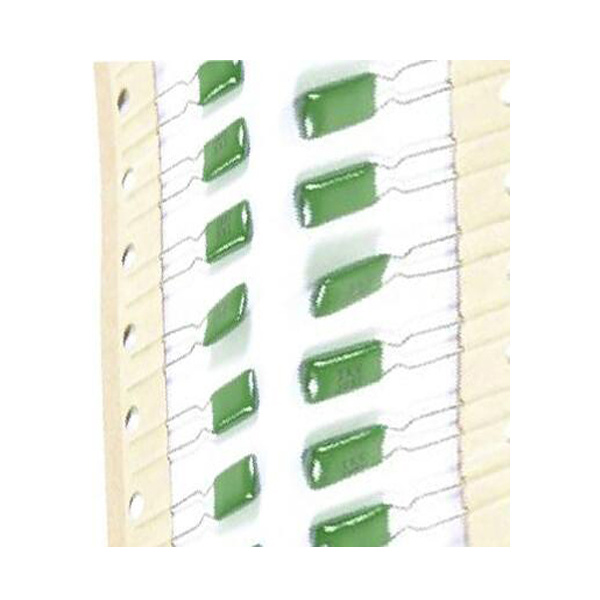

Green Color Mylar Capacitor (TMCF01)
| Price: |
US $ 0.014/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10000/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
TMCF01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
| Color: |
Green, Golden |
| Type: |
Polyester Film Capacitor |
| Application: |
Power |
| Package Type: |
Through Hole |
| Capacitance: |
0.001-0.47UF |
| Electrolyte: |
Polyester Capacitor |
| Filter: |
Polyester Capacitor |
Product Description
TMCF01 Polyester Film Capacitor (CL11)
Specifications
Price
Product Features
Prompt Delivery
Quality Approvals
Service
| Reference standard | GD6349(IEC60384-11) |
| Climatic category | 55/085/21 |
| Rated voltage(Ur) | 100,250,400,630,1000,1200VDC |
| Voltage proof | 2Ur(5s) |
| Capacitance range | 0.00047~4.7uF |
| Capacitance tolerance | J(±5%) K(±10%) M(±20%) |
| Dissipation factor | ≤ 0.01 (20ºC , 1KHZ) |
| Insulation resistance(IR) | ≥30000MΩ (20ºC , 1min) |
Key Specifications/Special Features:
Description:
With formed leads to match different demand of circuit boards
The whole series capacitors that can be divided into five major types of more than 3, 000 kinds such as:
Multi-layer ceramic capacitor (radial, axial and SMD)
Ceramic disc capacitors (low and high-voltage)
Aluminum electrolytic capacitor (radial, axial and SMD)
Film capacitor (polyester, polypropylene and metalized)
Tantalum capacitor (radial and SMD)
Among them, metalized polypropylene film x 2 capacitor is the predominant best seller
Especially in European and American markets
Climatic category: 55, 85 and 21
Rated voltage: 63, 100, 250, 400, 630 and 1, 000V
Capacitance range: 0.001 to 0.47uF
Capacitance tolerance (J x K x M): ± 5% x ± 10% x ± 20%
Voltage resistance: 2UR (5s)
Dissipation factor: ≤ 0.01%
Insulation resistance: ≥ 30, 000mΩ
| TMCF01-Polyester Film Capacitor -CL11 | U/P($) | L/T | Payment |
| 100pF 100V +/-5% P:5mm Ammo taping 20Kpcs | N/A | 15 work days | T/T advanced |
| 220pF 100V +/-5% P:5mm Ammo taping 20Kpcs | 0.0104 | 15 work days | T/T advanced |
| 330pF 100V +/-5% P:5mm Ammo taping 20Kpcs | 0.0094 | 15 work days | T/T advanced |
| 470pF 100V +/-5% P:5mm Ammo taping 20Kpcs | 0.009 | 15 work days | T/T advanced |
| 560pF 100V +/-5% P:5mm Ammo taping 20Kpcs | 0.0083 | 15 work days | T/T advanced |
| 680pF 100V +/-5% P:5mm Ammo taping 20Kpcs | 0.0079 | 15 work days | T/T advanced |
| 820pF 100V +/-5% P:5mm Ammo taping 20Kpcs | 0.0073 | 15 work days | T/T advanced
|
Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.
Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.
Presently, Topmay products mainly include the following products:
The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.
Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.
Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
