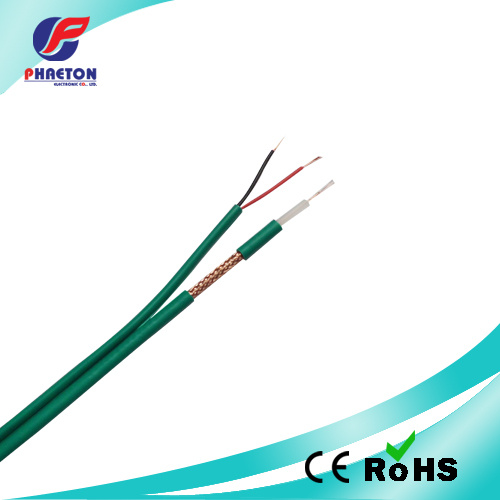

Green Kx6 RF Coaxial Cable with 2c Power Cable for CCTV

Prod Model:	kx6 with 2C power
Length:	100m/Roll
Material:	Bc/CCC/CCA/CCS
Applications:	CCTV
Main Export District:	Russia / European / American
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ISO

Product Description

KX6 +2c power cable Coaxial Cable
1) Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Mainly used for the distribution and access of electronic communication equipment, RF transmitter
unit of communication system, buildingcabling and CATV; the most striking features are broadband
and high speed; currently, also widely used in the multimedia transmission field


Construction:


Center   Conductor:	7*0.2+0.01mm Solid Copper
Dielectric:	3.7+0.05mm Solid PE
Bradi Coverage:	35%-90% BC/CCA
Jacket:	6.15+0.05mm PVC /PE
Powre Wires	7*0.37CU/CCA+PE+PVC



Electrical Performance:

Impedance:	75+3 Ohm
Capacitance:	50+3pF/km
Velocity of Propagation:	85%
Conductor resistance Max:	Inner:16.8 ohms/km   Outer:26 ohms/km
Return Loss:	20dB min (5-2150MHz)




Attenuation	[@68o F. (20o C.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.46	1.5
50	1.31	4.3
100	1.80	5.9
200	2.56	8.4
400	3.66	12.0
800	5.34	17.5
862	5.58	18.3
950	5.86	19.2
1350	7.11	23.3
1750	8.24	27.0
2150	9.33	30.6
3000	11.22	36.8



FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
   We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company  is only one hour by train from shanghai
:
