Greenpedel Dp-6c 36V 48V Downtube Type 18650 Cell Lithium Battery

Name: Greenpedel Dp-6c 36V 48V Downtube Type 18650 Cell Lithium Battery
Brand: all-electronics-online.com
SKU: 838771885
Availability: InStock
Rating: 4.4 (66 reviews)

Price:	US $ 130-298/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DP-6C
Product Name:	Lithium Battery
Battery Type:	Downtube
Voltage:	36V 48V
Capacity:	13-19.2
Warranty:	2 Years
Cycle Life:	600times
Weight:	4.1kgs
Battery Cell:	18650
Cell Brand:	Chinese Cell/Samsung/LG/Panasonic
Type:	Lithium Battery
Charger Type:	Electric Charger
Size:	AA
Nominal Voltage:	3.7V
Socket Type:	Option

Product Description

Greenpedel DP-6C 36v 48v downtube type 18650 cell lithium battery

Specification parameter:

Lithium ion battery pack Specifications
Model:	DP-6C
Nominal Voltage:	36V/48V
Cell:	Chinese Cell 2200	Samsung 22p	LG M26		Samsung 29E		LG 3200
	36V	36V	36V	48V	36V	48V	36V	48V
Weight:	4.1kgs	4.1kgs	4.1kgs	4.4kgs	4.1kgs	4.4kgs	4.1kgs	4.4kgs
Pack Dimension:	42×18×17CM
Standard Charge:	Constant Current 2A Constant Voltage 42V 100mA Cut-off(23±2ºC)
Standard discharge:	Constant Current 2A end Voltage 30V (23±2ºC)
Fast discharge:	Constant Current 5A end Voltage 30V (23±2ºC)
Rated Capacity:	13.2Ah(First Standard Charge then Standard discharge)	13.2Ah	15.6Ah	13Ah	17.4Ah	14.5Ah	19.2Ah	16Ah
Fast discharger capacity	≥12.5Ah (Standard Charge then Fast discharge)	≥12.5Ah	≥14.8Ah	≥12.4Ah	≥16.5Ah	≥13.8Ah ?	≥18.3Ah	≥15.2Ah
Cycle Life	Standard Charge,rest 10min, Standard discharge. A cycles defined as one charge and discharge. Carry out cycles until discharge capacity <60% C5mAh ,cycle life ≥500
Maximum Continuous charge Current:	5A
Maximum Continuous Discharge Current:	20A	20A	20A	30A	20A	30A	20A	30A
Impedance(23±2ºC):	<200mΩ
Storage Range:	Temperature(15-35 ºC ) ; Relative humidity (45-75%) ; Pressure (86-106KPa)
Charge Temperature:	0-60ºC
Operation Temperature :	-20-60ºC

Cellelayout	Maximum Cells	Connection Type	Capacity
	65	6P10S	2200mAh	2600mAh	2900mAh	3200mAh
		6P10S	36V13.2Ah	36V15.6Ah	36V17.4Ah	36V19.2Ah
		5P13S	48V11Ah	48V13Ah	48V14.5Ah	48V16Ah

Lithium Battery Features:

1. Safety: safest Li-Ion battery, CE ROHS approved, built in PCM/PCB, none fire or explosive

2. Clean and Green energy, no toxic material contained

3. Powerful: Battery can discharge in 15C~20C

4. Long life cycle, 80% capacity remain after 500 times deep cycle.

5. No memory effect,highly efficient charge anytime, no reduction of capacity

6. Operation temperature: -20~60°C

7.Small size, light weight:

8.Good performance at high temperature and high temperature resistance

9.Low self-discharge rate: < 3% monthly

Li-ion Battery Details:

1.Lithium cylindrical rechargeable batteries with PCB protection

2.Internal PCB protection (patent pending design) protect battery from over charge,over discharge,over current and short circuit.

3.Manufactured under CE,ROHS to assure quality

4.Battery tested before delivery to ensure capacity, quality and lifetime

5.Pollution-Free/Long Cycle Life/Good Consistency 6.No memory effect 7.Existing stock for short delivery time.

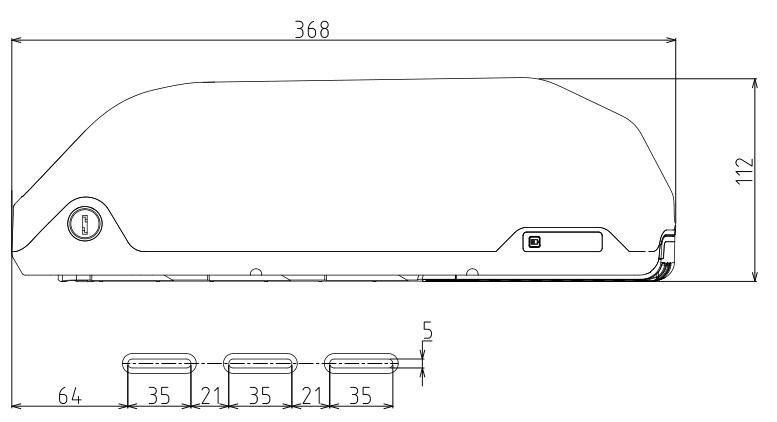

Battery size:

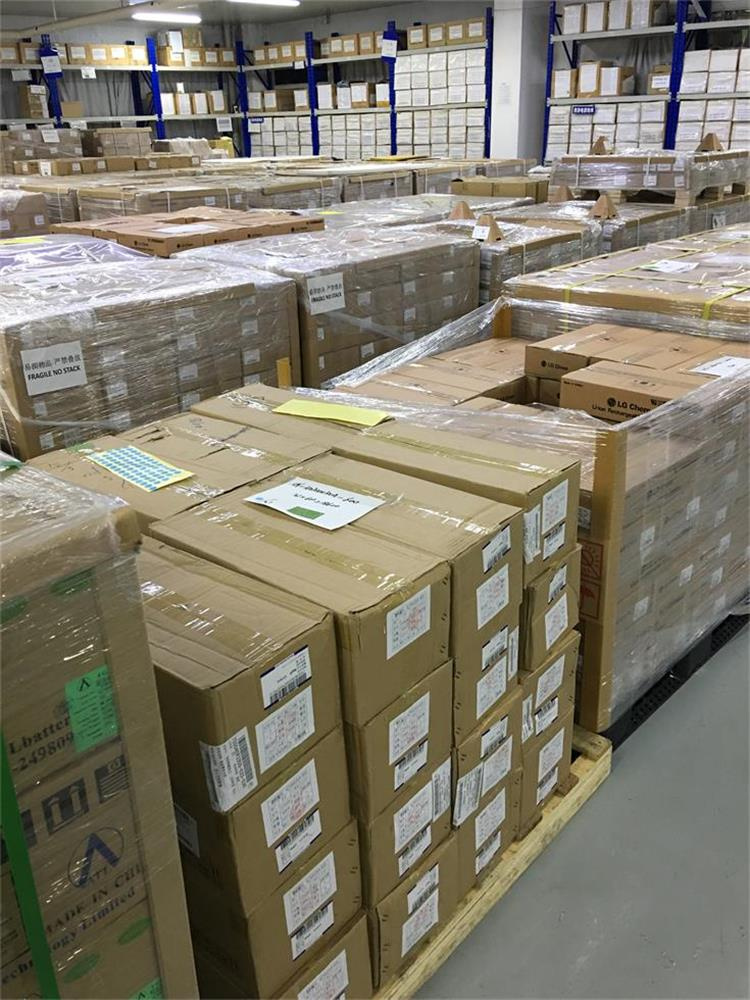

Battery factory

Test equipment:

Company information:
Changzhou Green pedel Co.,Ltd is a professional and scientific enterprise that specialises in researching, producing and selling electric bicycles,electric scooters, K-Shaped cars, Shilly-cars and conversion kits. We ensure the quality of the first-class production equipment and the international standard operating procedures, as well as the professional operating staff. We always uphold the priciples of "quality first , integrity first, and reputation first. " In the past 7 years, our customers vary from government to industrial organizations, from distributors to retailers.

FAQ:

Q1. What are your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q3. How about your delivery time?

A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q6. About the warranty?

A:Warranty 3years for motor,2years for battery,1year for other accessories.

Contact US:
♥ If you have any question,please feel free to contact us. We will reply you within 12 hours.

Jack Jiang
Sales Manager

M:+86 13775615773


https://greenpedel.en.alibaba.com
Changzhou Green pedel Co.,Ltd
Add:NO.2188,LONGCITY ROAD,ZHONGLOU DISTRICT,CHANGZHOU CITY,CHINA

Green Pedel is a reputable Manufacturer and trading company with 10 years experience of selling electric bikes, electric bike motor kits, electric scooters and electric wheelchair.

With a strong and reliable support of our professional technical team and sales team, we can provide solutions for local and overseas customers on electronic systems in first time.

Fixing on the company purpose of " Quality first, Customer highest, service are first-rate" and enterprise belief of "keep credit, stand public praise", we support OEM&ODM, support customized service, and sample for testing. Our products come with CE, EN15194, RoHS, ISO9001 certification. Participating in many exhibitions every year, we can get the latest news from market, update the products and recommend the right products to customers according to the market conditions.
