Prod Model: 18/30KVWLJ-1-1
Product Name: Cold Shrink Terminations&Joints
MOQ: 1 Set
Application: Cable Accessories, Grid
Certification: RoHS, Reach
Brand: Sunbow

Product Description

Grid Applicaion cable accessories Cold Shrink Terminations & Joints 1-36kv

Description
Cold shrink cable accessories are manufactured with advanced liquid silicone rubber, which has high resilience
and strength,good electrical insulation, is UV stable and adverse to water. The cold shrink cable terminations
& joints applications from 1 to 36kV(1kV12kV15kV20kV36kV)The simple installation of cold shrink cables accessories can help you save time and physical forceIt improves your work efficiency, make the cables connect safely and reliably, assure your every connection correctly sealed and insulated for long protection. So our cold shrink MV terminations & joints are widely applied in power plant (nuclear), wind farm, substations, city subway etc.

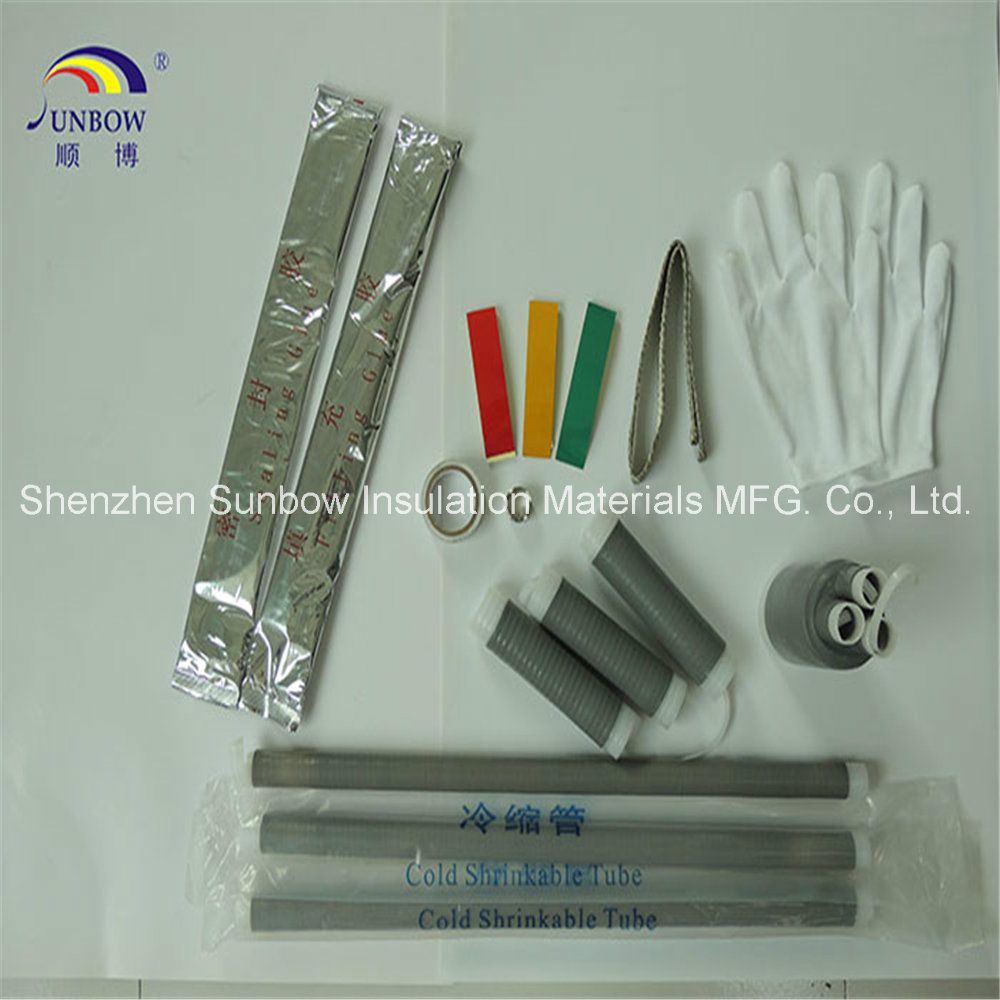

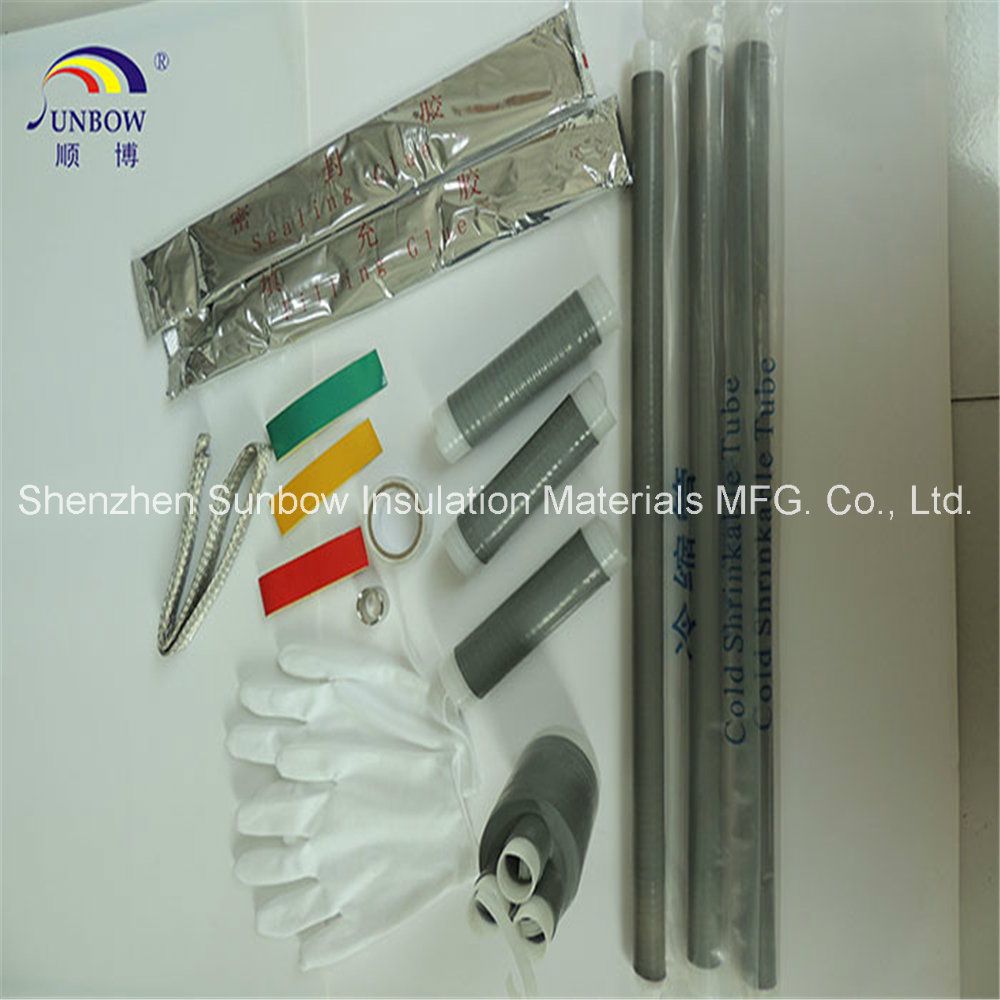

Cold Shrink Termination Kits
Voltage Cores   DescriptionCable sizeModel number
18/30KV (36)1Indoor 25-50mm218/30kVWLN-1-1
70-150mm218/30kVWLN-1-2
185-400mm218/30kVWLN-1-3
500-630mm218/30kVWLN-1-4
1Outdoor 25-50mm218/30kVWLW-1-1
70-150mm218/30kVWLW-1-2
185-400mm218/30kVWLW-1-3
500-630mm218/30kVWLW-1-4
12/20KV (24)1Indoor 50-120mm212/20kVWLN-1-1
150-300mm212/20kVWLN-1-2
400-500mm212/20kVWLN-1-3
630mm212/20kVWLN-1-4
1Outdoor50-120mm212/20kVWLW-1-1
150-300mm212/20kVWLW-1-2
400-500mm212/20kVWLW-1-3
630mm212/20kVWLW-1-4
8.7/15KV (17.5)1Indoor25-50mm28.7/15kVWLN-1-1
70-120mm28.7/15kVWLN-1-2
150-240mm28.7/15kVWLN-1-3
300-400mm28.7/15kVWLN-1-4
1Outdoor 25-50mm28.7/15kVWLW-1-1
70-120mm28.7/15kVWLW-1-2
150-240mm28.7/15kVWLW-1-3
300-400mm28.7/15kVWLW-1-4
6.35/11KV (12)1Indoor 25-50mm26.35/11kVWLN-1-1
70-120mm26.35/11kVWLN-1-2
150-240mm26.35/11kVWLN-1-3
300-400mm26.35/11kVWLN-1-4
1Outdoor25-50mm26.35/11kVWLW-1-1
70-120mm26.35/11kVWLW-1-2
150-240mm26.35/11kVWLW-1-3
300-400mm26.35/11kVWLW-1-4
0.6/1KV (1.2)1Indoor or Outdoor25-50mm20.6/1kVWLT-1-1
70-120mm20.6/1kVWLT-1-2
150-240mm20.6/1kVWLT-1-3
300-400mm20.6/1kVWLT-1-4
18/30KV (36)3Indoor 25-50mm218/30kVWLN-3-1
70-150mm218/30kVWLN-3-2
185-400mm218/30kVWLN-3-3
500-630mm218/30kVWLN-3-4
3Outdoor 25-50mm218/30kVWLW-3-1
70-150mm218/30kVWLW-3-2
185-400mm218/30kVWLW-3-3
500-630mm218/30kVWLW-3-4
12/20KV (24)3Indoor 50-120mm212/20kVWLN-3-1
150-300mm212/20kVWLN-3-2
400-500mm212/20kVWLN-3-3
630mm212/20kVWLN-3-4
3Outdoor 50-120mm212/20kVWLW-3-1
150-300mm212/20kVWLW-3-2
400-500mm212/20kVWLW-3-3
630mm212/20kVWLW-3-4
8.7/15KV (17.5)3Indoor 25-50mm28.7/15kVWLN-3-1
70-120mm28.7/15kVWLN-3-2
150-240mm28.7/15kVWLN-3-3
300-400mm28.7/15kVWLN-3-4
3Outdoor25-50mm28.7/15kVWLW-3-1
70-120mm28.7/15kVWLW-3-2
150-240mm28.7/15kVWLW-3-3
300-400mm28.7/15kVWLW-3-4
6.35/11KV (12)3Indoor 25-50mm26.35/11kVWLN-3-1
70-120mm26.35/11kVWLN-3-2
150-240mm26.35/11kVWLN-3-3
300-400mm26.35/11kVWLN-3-4
3Outdoor 25-50mm26.35/11kVWLW-3-1
70-120mm26.35/11kVWLW-3-2
150-240mm26.35/11kVWLW-3-3
300-400mm26.35/11kVWLW-3-4
0.6/1KV (1.2)3 or 4 or 5Indoor or Outdoor25-50mm20.6/1kVWLT-3(4/5)-1
70-120mm20.6/1kVWLT-3(4/5)-2
150-240mm20.6/1kVWLT-3(4/5)-3
300-400mm20.6/1kVWLT-3(4/5)-4

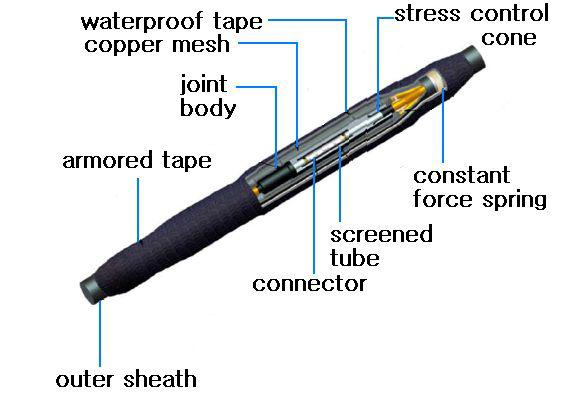

Cold Shrink Cable Joints




Use:
Cold shrink cable joint for XLPE -insulated 1 or 3
cores cables with Al or Cu conductor, 1-36kV.
Design:
The joint body is made of advanced liquid silicone
rubber with three layers: a conductive outer layer, an
insulating layer and a conductive inner layer.
The joints kit contains all mounting material. It
improves reliability, reduces time and labor. It fits
cable sizes from 25mm2 to 500mm2.

VoltageCores Cable SizeModel Number
18/30KV (36)150-70mm218/30kVWLJ-1-1
95-150mm218/30kVWLJ-1-2
185-300mm218/30kVWLJ-1-3
400-500mm218/30kVWLJ-1-4
12/20KV (24)125-50mm212/20kVWLJ-1-1
70-120mm212/20kVWLJ-1-2
150-240mm212/20kVWLJ-1-3
300-400mm212/20kVWLJ-1-4
8.7/15KV (17.5)125-50mm28.7/15kVWLJ-1-1
70-120mm28.7/15kVWLJ-1-2
150-240mm28.7/15kVWLJ-1-3
300-400mm28.7/15kVWLJ-1-4
6.35/11KV (12)125-50mm26.35/11kVWLJ-1-1
70-120mm26.35/11kVWLJ-1-2
150-240mm26.35/11kVWLJ-1-3
300-400mm26.35/11kVWLJ-1-4
0.6/1KV (1.2)125-50mm20.6/1kVWLJ-1-1
70-120mm20.6/1kVWLJ-1-2
150-240mm20.6/1kVWLJ-1-3
300-400mm20.6/1kVWLJ-1-4
18/30KV (36)350-70mm218/30kVWLJ-3-1
95-150mm218/30kVWLJ-3-2
185-300mm218/30kVWLJ-3-3
400-500mm218/30kVWLJ-3-4
12/20KV (24)325-50mm212/20kVWLJ-3-1
70-120mm212/20kVWLJ-3-2
150-240mm212/20kVWLJ-3-3
300-400mm212/20kVWLJ-3-4
8.7/15 KV (17.5)325-50mm28.7/15kVWLJ-3-1
70-120mm28.7/15kVWLJ-3-2
150-240mm28.7/15kVWLJ-3-3
300-400mm28.7/15kVWLJ-3-4
6.35/11KV (12)325-50mm26.35/11kVWLJ-3-1
70-120mm26.35/11kVWLJ-3-2
150-240mm26.35/11kVWLJ-3-3
300-400mm26.35/11kVWLJ-3-4
0.6/1KV (1.2) 3 or 4 or 525-50mm20.6/1kVWLJ-3(4/5)-1
70-120mm20.6/1kVWLJ-3(4/5)-2
150-240mm20.6/1kVWLJ-3(4/5)-3
300-400mm20.6/1kVWLJ-3(4/5)-4


Peformance of cold shrink cable accessories

SEQ.Test Project18/30KV (36)12/20KV (24)8.7/15KV (17.5)Result
1AC Voltage                        (in Air and Ambient
Temperature)
AC for 5min. at 81KV
no breakdown, no
flashover
AC for 5min. at 54K
no breakdown, no
flashover
AC for 5min. at 39KV
no breakdown, no
flashover
PASS
2Partial Discharge Test≤10pc at 31KV≤10pc at 20KV≤10pc at 15KVPASS
3Impulse Test10 impulses of each polarity at 170KV10 impulses of each polarity at 125KV10 impulses of each polarity at 95KVPASS
4Heating Cycle in Air
(for Termination )
60 cycles at 95ºC~
100ºC and 45KV in
air, no breakdown
60 cycles at 95ºC~
100ºC and 30KV in
air, no breakdown
60 cycles at 95ºC~
100ºC and 22KV in
air, no breakdown
PASS
5Heating Cycle in Air
(for Joints )
30 cycles at 95ºC~
100ºC and 45KV in
air, no breakdown
30 cycles at 95ºC~
100ºC and 30KV in
air, no breakdown
30 cycles at 95ºC~
100ºC and 22KV in
air, no breakdown
PASS
6Heating Cycle Voltage
Test under Water
30 cycles at 95ºC~
100ºC and 45KV under
water, no breakdown
30 cycles at 95ºC~
100ºC and 30KV under
water, no breakdown
30 cycles at 95ºC~
100ºC and 22KV under
water, no breakdown
PASS
7Thermal Short Circuit
(Screen)
no visible deterioration
at current 1.97KA for 2s
no visible deterioration
at current 1.97KA for 2s
no visible deterioration
at current 1.97KA for 2s
PASS
8Thermal Short Circuit
(Conductor)
no visible deterioration
at current 3.0KA for 1s
no visible deterioration
at current 3.0KA for 1s
no visible deterioration
at current 3.0KA, for 1s
PASS
9Dynamic Short Circuitno visible deterioration
at current 23.0KA for 2s
no visible deterioration
at current 23.0KA for 2s
no visible deterioration
at current 23.0KA for 2s
PASS
10AC Voltage for 15 minAC for 15 min at
45KV. no breakdown,
no flashover
AC for 15 min at
30KV. no breakdown,
no flashover
AC for 15 min at
22KV. no breakdown,
no flashover
PASS
11Salt fog                                   (for Outdoor             Terminations Only)1000H at 22.5KV,
no breakdown,
no flashover
1000H at 15KV,
no breakdown,
no flashover
1000H at 11KV,
no breakdown,
no flashover
PASS
12Humidity                                (for Indoor
Terminations Only)
300H at 22.5KV,
no breakdown, no flashover
300H at 15KV,
no breakdown,
no flashover
300H at 11KV,
no breakdown,
no flashover
PASS
