Grid-System 3kw/5kw 24/48VDC Solar Inverter with Parallel and Ethernet Connnection Function

Name: Grid-System 3kw/5kw 24/48VDC Solar Inverter with Parallel and Ethernet Connnection Function
Brand: all-electronics-online.com
SKU: 833567775
Availability: InStock
Rating: 4.9 (129 reviews)

Price:	US $ 1-50/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS Series
Display:	Digital LCD Display
Color:	Silver
DC Voltage:	12V / 24V /48VDC
Application:	Home & Office

Product Description

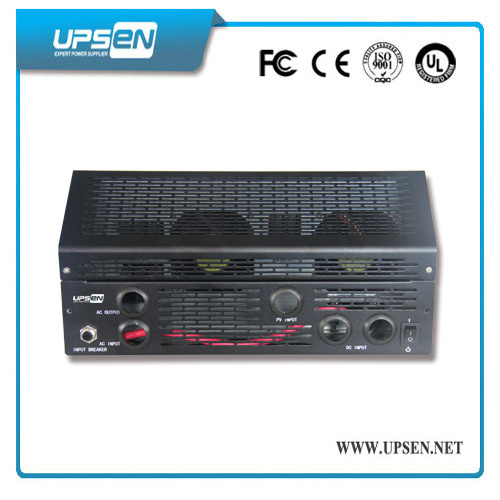

RS Series 1Kva-5Kva Inverter/Charger
INTRODUCTION
This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery
charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger
priority, and acceptable input voltage based on different applications.

Features
1):Pure sine wave inverter
2):Built-in MPPT solar charge controller
3):Configurable input voltage range for home appliances and personal computers via LCD setting
4):Configurable battery charging current based on applications via LCD setting
5):Configurable AC/Solar Charger priority via LCD setting
6):Compatible to mains voltage or generator power
7):Auto restart while AC is recovering
8):Overload/ Over temperature/ short circuit protection
9):Smart battery charger design for optimized battery performance
10):Cold start function

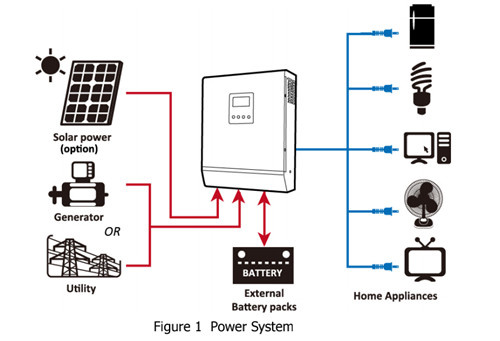

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to
have a complete running system:
Ÿ 1):Generator or Utility.
Ÿ 2):PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioner.

4KVA/5KVA parallel model

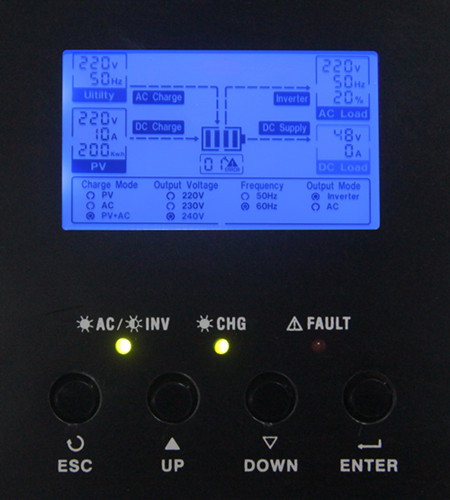

1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Circuit breaker
12. RS232 communication port
13. Parallel communication cable (only for parallel model)
14. Current sharing cable (only for parallel model)
15. Dry contact
16. USB communication port
