| Prod Model: |
LYST-5000W |
| Certificate: |
Ce |
| Input Voltage: |
230V AC |
| Work Time (H): |
100000hours |
| Output Current: |
Load |
| Charger Type: |
PWM |
Product Description
LYST-5000W 5000VA/4000W off grid solar system | Models | 1kVA
(LYSI-1000-24) | 2kVA
( LYSI-2000-24 Plus) | 3kVA
(LYSI-3000-24 Plus) | 4kVA
(LYSI-4000-48-PAR-A) | 5kVA
(LYSI-5000-48-PAR-A) |
| Rated Power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W |
| INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(For UPS);90-280VAC(For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| OUTPUT |
| AC Voltage Regulation | 230VAC ±5% |
| ( Batt. Mode) |
| Peak Efficiency | 90%-93% |
| Transfer Time | 10ms typical(For UPS);20ms typical(For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY |
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 31 VDC | 62 VDC |
| Maxmium Current | 10/20A | 20/30A |
| SOLAR CHARGER(MPPT/PWM ) |
| Rated Power | 600W | 1500W | 3000W |
| Efficiency | 98%max. |
Max. PV Array
Open Circuit Voltage | 75 VDC | 145 VDC |
PV Array MPPT
Voltage Range | 30~66 VDC | 60~115 VDC |
| Maxmium Charge Current | 25A | 60A |
| Standby Power Consumption | 2w |
| GENERAL SPECIFICATIONS |
| Demension(D*W*H) | 128*272*355mm | 140*295*479mm | 140*295*540mm |
| Net Weight | 7.4kg | 11.5kg | 13.5kg |
Operating Temperature
Range | 0ºC-55ºC |
| Safety Certification | CE |
| Storage Temperature | -15ºC~60ºC |
Specifications

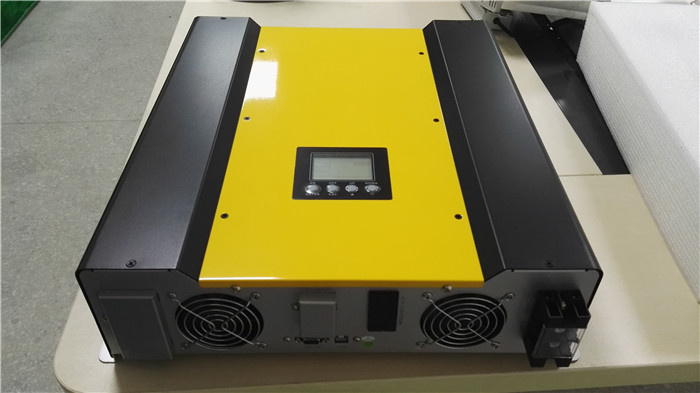

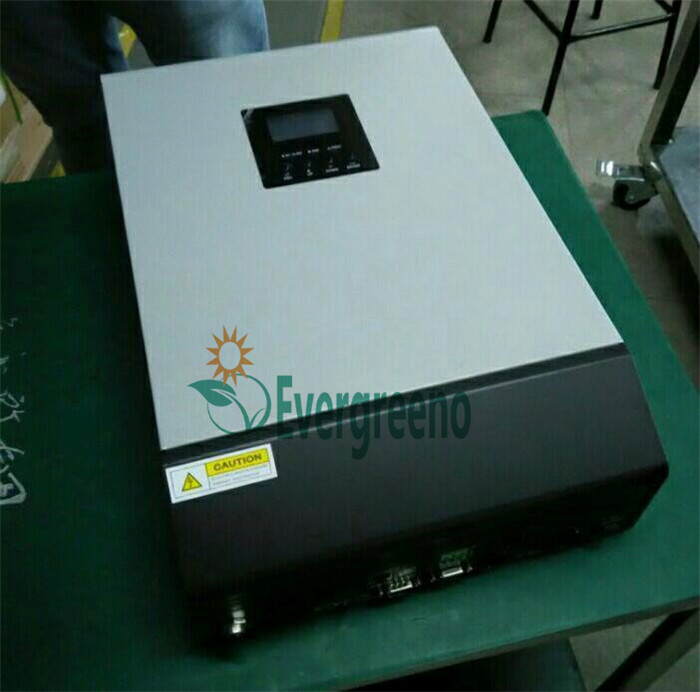

Solar Inverter System :Model: LYST-5000W
1.Green Energy
2.Energy-saving products
3.Off grid
4.Certificate:CE,RoHS,TUV, ISO9001
Technical Parameters:
Power:1000VA/800W
Input Voltage:230V AC
Output:110V/220V/230V,50Hz/60Hz(Voltage can changed on the inverter)
Battery Voltage:12V DC
DC Output:110-240V
Qutantity of carton: 1pcs
Product size: 140*295*540mm
Advantages:
1.Safety and easy installation,Plug and play systems;
2.Good quality panel to ensure the high efficiency and long life needs;
3.Solar Automatic lighting controller :with adjustable run times, over-current protection;
4.Solar Batteries: Maintenance free, long life batteries
5.Lighting Source: LED lamp /Lantern (Fixed/Movable)
6.Flexible designs per client requests;
Using of scope:
It is very good for indoor use where there is shortage of electricity and for outdoor activities such as picnicking, fishing and camping. It is an ideal tool for Motor Mechanics, Farm House and small shop owners such as Hairdressers, Barbers, Cobblers, Tailors and Kiosk keepers.
· NEW - now max 80A / 4kw MPPT solar charging
· NEW - total system max charging: 140A (80A solar + 60A utility)
· Supports parallel function up to 6 units max (need parallel kit, sold separately)
· supports LiFePo4 battery type (variable charging voltage)
· Built-in 3-stage high efficiency utility charger 60A
· Generator Starter Dry Contact
· Adjustable AC input voltage 90~280VAC
· Supports 50hz or 60hz via LCD program
· 4.0KW pure sine wave output with up to 2X surge max 5 seconds
· Dual priority operation selectable: AC vs. DC mode
· Free monitoring software
· Works with 48V battery system only
· transformerless, light weight design
· RJ45 comm port
· Transfer time <10ms
· Programmable LCD with menu
· 24 hour operation
· Intelligent battery charging control
· Built-in alarms and protections
· Suitable for wall mount
· CE, EMC certified |
