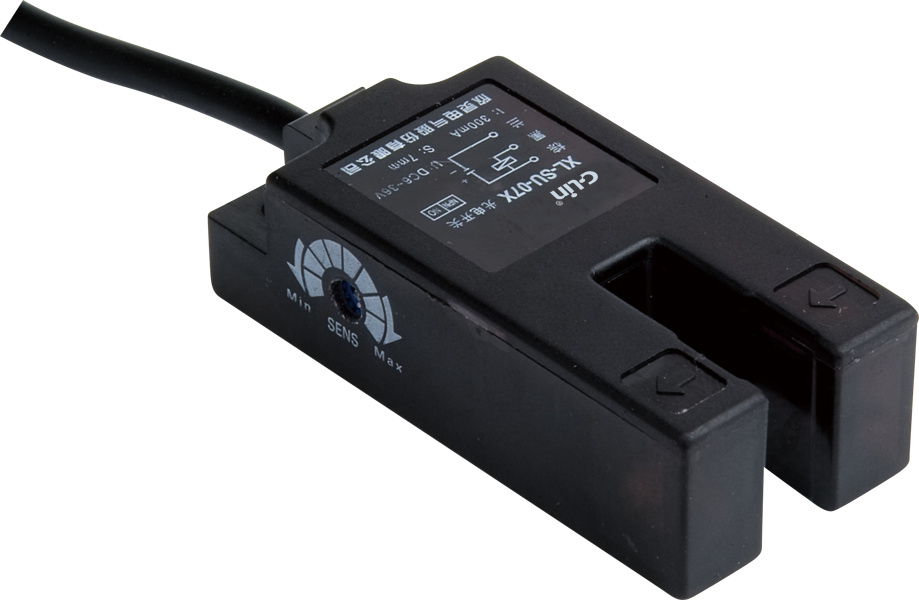

Groove (U) Shape Photoelectric Switch (SU, E3S Series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
SU, E3S Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Position Sensor |
| Material: |
Heat-Resisting ABS&Cast Aluminium |
Product Description
DescriptionA photoelectric switch is a device used to detect the distance, absence, or presence of an object
by using a light transmitter, often infrared, and a photoelectric receiver. They are used extensively
in machinery, textile, metallurgy, tobacco, railway, war industry and so on. There are three different
functional types: through beam (opposed), retroreflective, and diffused type ( proximity sensing) .
A through beam (opposed) arrangement consists of a receiver located within the line-of-sight of the transmitter. In this mode, an object is detected when the light beam is blocked from
getting to the receiver from the transmitter.
A retroreflective arrangement places the transmitter and receiver at the same location and uses
a reflector to bounce the light beam back from the transmitter to the receiver. An object is sensed
when the beam is interrupted and fails to reach the receiver.
A diffused (proximity sensing) arrangement is one in which the transmitted radiation must reflect off
the object in order to reach the receiver. In this mode, an object is detected when the receiver sees

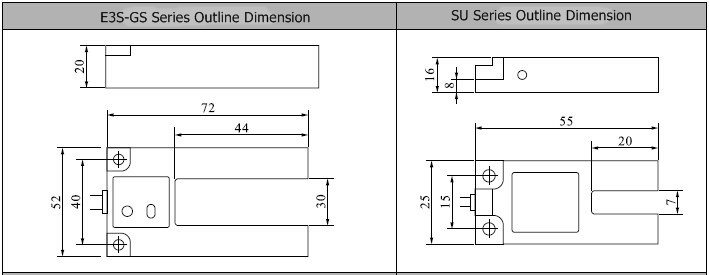

the transmitted source rather than when it fails to see it.Outline Dimension
|
Operating State of Output |
Groove (U) shape Photoelectric Switch |
|
Three-wire DC6-36V |
NPN |
NO |
SU-07X |
E3S-GS30C1 |
|
NC |
SU-07XB |
E3S-GS30C2 |
|
NO+NC |
|
E3S-GS30C4 |
|
PNP |
NO |
SU-07XP |
E3S-GS30B1 |
|
NC |
SU-07XPB |
E3S-GS30B2 |
|
NO+NC |
|
E3S-GS30B4 |
|
Detection distance |
7mm± 1% |
30mm± 1% |
|
Detected Object |
Opaque Object |
|
Response Frequency |
DC: 2.5ms; AC: 30ms |
|
Supply Voltage |
DC(NPN, PNP): 6-36VDC; AC: 90-250VAC AC/DC: 12-240VDC/24-240VAC |
|
Consumption Current |
DC(NPN, PNP): 8mA/12V, 15mA/24V |
|
Control Output |
DC(NPN, PNP): DC12V: 100mA; DC24V: 300mA; AC: 3A; AC/DC: 3A |
|
Circuit Protection |
DC(NPN, PNP): reversal connection protection, surge absorption, load short-circuit protection |
|
Intensity of Illumination of Working Environment |
Sunlight under 10, 000LX; Incandescent lamp under 3, 000LX |
|
Temperature |
" -25- +75 Centigrade(non-freezing condition) |
|
Humidity |
35-95%RH |
|
Residual Voltage |
DC(NPN, PNP): below 1V |
|
Insulation Resistance |
above 50MΩ (DC500V) |
|
Enduring Voltage |
AC1000V 50/60Hz 1min between charging part and housing |
|
Protection Grade |
IP67 |
|
Material |
heat-resisting ABS&cast aluminium |
|
Alternative Model at Home and Abroad |
Taiwan Yangming SU-07 |
Omron E3S-GS30 |
|
Korean BOD-30 |
