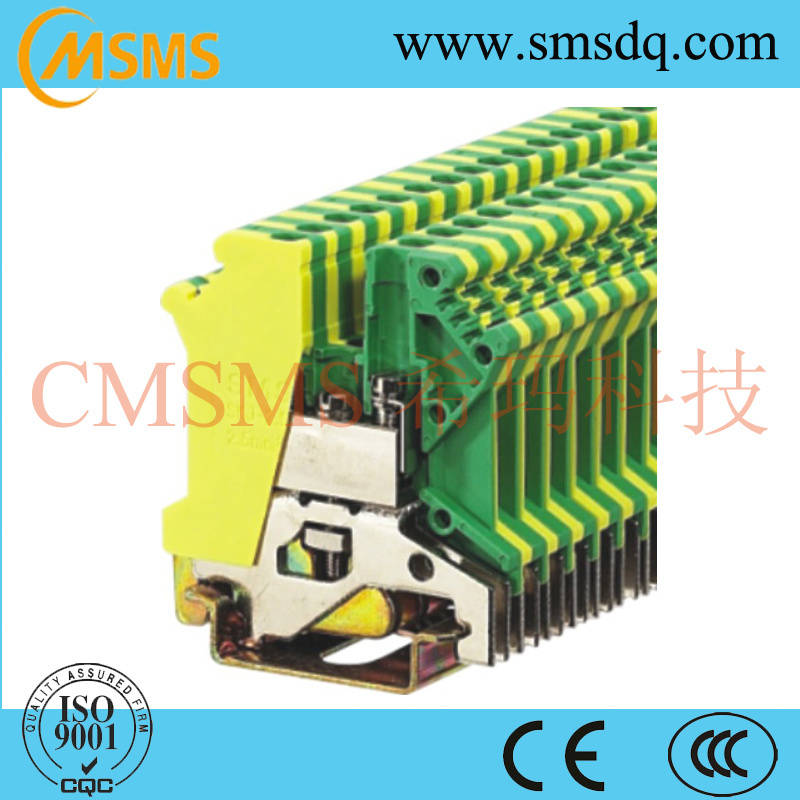

Grounding Terminal Blocks (SKJ-1.5JD / SKJ-4JD)

Name: Grounding Terminal Blocks (SKJ-1.5JD / SKJ-4JD)
Brand: all-electronics-online.com
SKU: 662576935
Availability: InStock
Rating: 5 (34 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKJ Series grounding terminal block
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Protection
Type:	Distribution Metering Box

Product Description

Use ground blocks instead of grounding studs and wire lugs to terminate ground wires, saving installation and wiring time. Ground blocks clamp mechanically onto the DIN Rail by tightening the center mounting screw, making a reliable electrical connection between the cage clamp terminals and the DIN Rail. The rail serves as a busbar and automatically distributes ground

Potential to all other ground terminals on the same rail. Ground blocks can also be used as end stops, preventing other terminal blocks and components from moving laterally on the DIN Rail. They are supplied with a standard green/yellow housing for easy identification and accept standard marking tags.

ITEM NO.	SKJ-1.5JD	SKJ-2.5JD	SKJ-4JD
Order No.	01090	01012	01013
Dimension
Width x Thickness x Height (mm)	42.5/4.2/40.5	42.5/5.2/46	42.5/6.2/46
Screw (mm)	M2	M3	M4
Torque (Nm)	0.22-0.25	0.5-0.7	0.5-0.7
Stripping Length (mm)	7	8	9
Rated data
Voltage Rating (V)
Current Rating (A)
Wire section (mm² )	1.5	2.5	4
Wire Range
Rigid wire range(mm² )	0.14-1.5	0.2-4	0.2-6
Flexible wire rangemm² )	0.14-1.5	0.2-2.5	0.2-4
